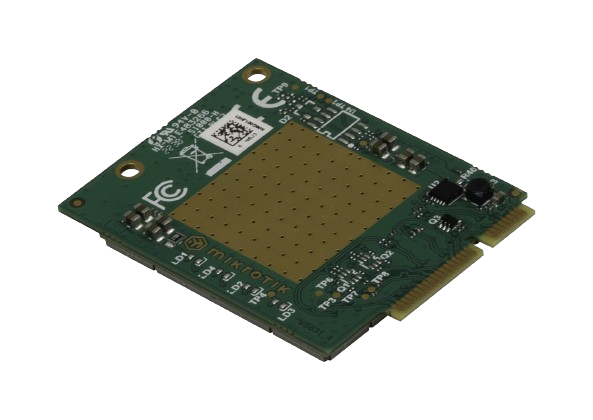

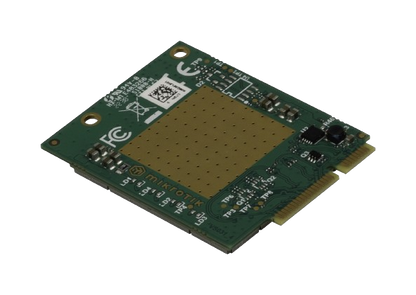

Mikrotik miniPCIe CAT6 LTE card

MIKROTIK

Mikrotik miniPCIe CAT6 LTE card

Product identifier
SKU R11eL-FG621-EA
$80.95
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

SKU: R11eL-FG621-EA - An extra cost-effective upgrade of our previous R11 LTE6 modem.

It offers the same speed (up to 300 Mbps) and features as the earlier version, but it supports the popular B28 band.

An extra cost-effective upgrade of our previous R11 LTE6 modem.

This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.

Carrier aggregation allows the R11 to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation!

Features

  • 2X ETHERNET PORTS
  • FLEXIBLE POWERING: POE-IN, POE-OUT, 2-PIN TERMINAL
  • ROUTEROS V7
  • 2.4 GHZ WIRELESS
  • CAT-M/NB MOBILE INTERNET MODEM
  • GNSS SUPPORTED
  • IP66 WATER RESISTANCE

Technical Description

  • Specifications
    • Product code: R11eL-FG621-EA
    • Tested ambient temperature: -40°C to 70°C
  • Powering
    • Max power consumption: 3 W
  • Mobile
    • 3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
    • 3G bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    • LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    • LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
    • LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
    • TAC: 86335904
  • Certification & Approvals
    • Certification: CE, ROHS
    • IP: IP00
  • Supported 2xCA LTE bands
    • 1+1/3/5/7/8/20/28: 40+40
    • 3+3/5/7/8/20/28: 8+8
    • 5+5/7: 38+38
    • 7+7/8/20/28: 41+41

More Information

MFRPartNum:
R11eL-FG621-EA
Datasheet:
Click here
