MikroTik · Routers and Switches

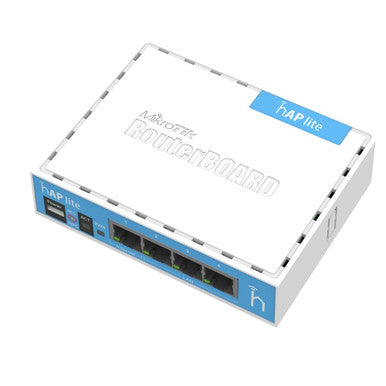

MikroTik RB941-2nD hAP lite Home Wi-Fi Access Point, 2.4 GHz 300 Mbit/s, 4x 10/100 Ethernet

Part number / SKU
RB941-2nD
  • 802.11b/g/n, Wi-Fi 4
  • 2.4 GHz
  • 300 Mbit/s
  • 4x 10/100 RJ45
  • 2x2, dual chain

$40.73

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The MikroTik hAP lite (RB941-2nD) is a home wireless access point for apartments, houses or offices. It runs full RouterOS with a level 4 license, supports button-triggered WPS, and can switch to cAP mode to join a CAPsMAN-managed wireless network.

A 650 MHz QCA9533 CPU with 32 MB RAM drives a dual-chain 2.4 GHz 802.11b/g/n radio rated at up to 300 Mbit/s, with 1.5 dBi antenna gain and up to 22 dBm transmit power. It has four 10/100 Ethernet ports and routes 394.7 Mbps at 1518-byte packets in MikroTik RFC 2544 tests (fast path).

Power comes through a 5 V micro USB input, with a maximum draw of 3.5 W, and a 5 V power adapter rated at 1 A comes in the box. MikroTik tested it at -20 to 60 °C ambient.

  • Best for: homes, apartments and small offices that need a basic 2.4 GHz access point and router.
  • System fit: MikroTik RouterOS level 4; cAP mode for CAPsMAN-managed networks; WPS button.
  • Important to know: Wi-Fi is 2.4 GHz only and the Ethernet ports are 10/100; powered by 5 V micro USB.

Why teams choose it

Built for reliable networks

  • Dual-chain 2.4 GHz Wi-Fi

    802.11b/g/n rated at up to 300 Mbit/s.

  • CAPsMAN ready

    switch to cAP mode to join a centrally managed MikroTik wireless network.

  • Four wired ports

    4x 10/100 Ethernet with 394.7 Mbps routing at 1518-byte packets in MikroTik tests.

  • Low power

    up to 3.5 W from a 5 V micro USB input.

Specifications

Technical specifications

Product identifiers
SKURB941-2ND
General
Brand MikroTik
Model RB941-2nD
Product Name hAP lite
Device Type Home wireless access point and router
Interfaces
Ethernet Ports 4x 10/100 RJ45
Buttons WPS
Wireless
Wireless Standard 802.11b/g/n, Wi-Fi 4
Frequency Band 2.4 GHz
Data Rate 300 Mbit/s
MIMO Configuration 2x2, dual chain
Antenna Gain 1.5 dBi
Wireless Chip QCA9533
Max Tx Power 22 dBm at 1 Mbit/s; 16 dBm at MCS7
Rx Sensitivity -96 dBm at 1 Mbit/s; -71 dBm at MCS7
Performance
CPU QCA9533, 1 core, 650 MHz, SMIPS
Switch Chip QCA9533-BL3A
RAM 32 MB
Storage 16 MB flash
Routing Throughput 394.7 Mbps at 1518-byte packets, fast path (RFC 2544)
Routing Packet Rate 221.1 kpps at 64-byte packets, fast path
Routing (25 IP Filter Rules) 394.7 Mbps at 1518-byte; 220.8 Mbps at 512-byte
Power
Power Method 5 V micro USB
Max Power Consumption 3.5 W
Cooling Passive
Environmental
Operating Temperature -20 to 60 °C (tested ambient)
MTBF About 100,000 hours at 25 °C
Software and Management
Operating System RouterOS
RouterOS License Level 4
Wireless Management cAP mode for CAPsMAN
Listings and Approvals
Certifications FCC, IC
