MIKROTIK
Mikrotik RBLDFR&R11e-LTE6 LDF LTE6 kit RBLDFR&R11e-LTE6 Outdoor Dish
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

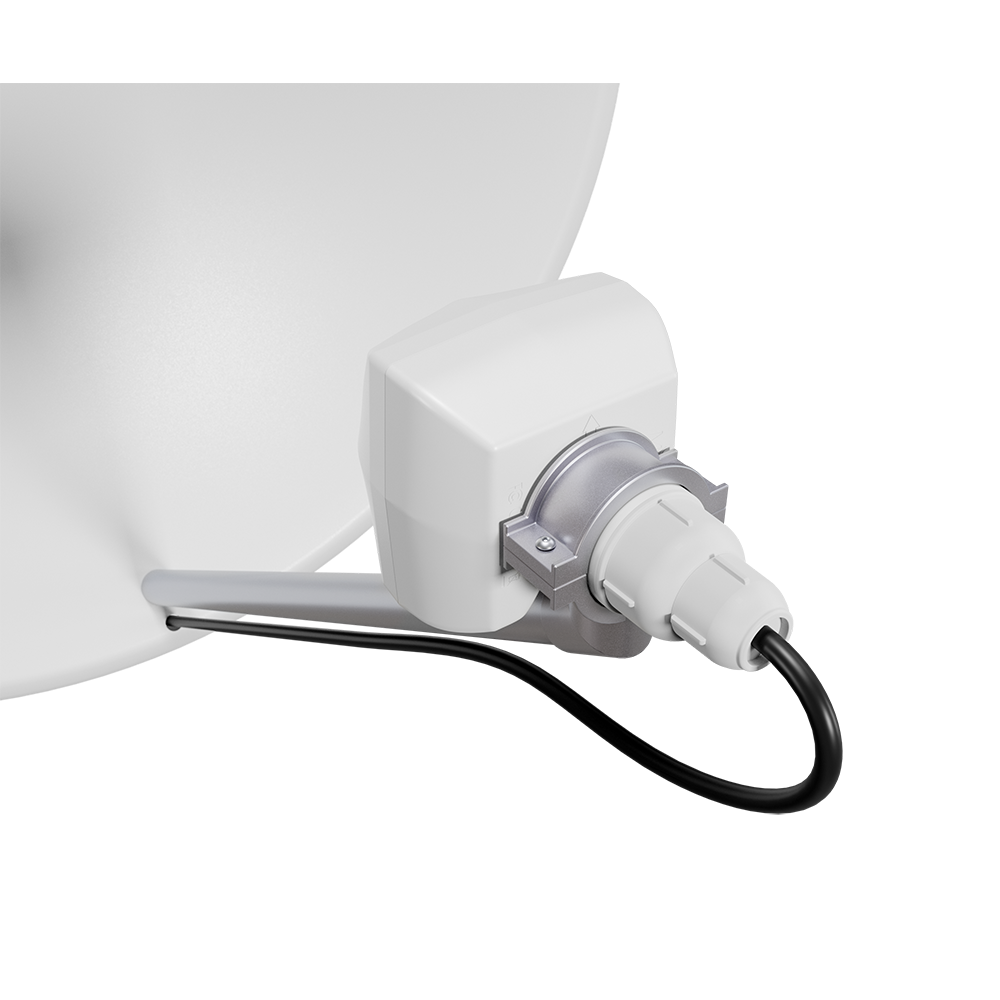

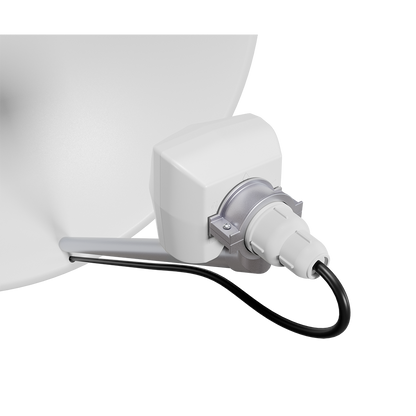

LDF LTE6 kit is a device for extremely remote locations that are within cellular network coverage. Attach it to any satellite TV dish (NOT included) and the dish will act as a reflector, greatly amplifying the signal.
Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. That means – Internet connectivity is possible even in areas, where you would usually have no mobile connectivity at all. Stormy weather is not a problem either – with a solid IP68 rating LDF LTE6 kit can withstand dust, dirt and sand, as well as temporary immersion in water.
LDF LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness and
Higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6.
Technical Description
-
Specifications
- Product code RBLDFR&R11e-LTE6
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- Dimensions 94 x 94 x 150 mm
- License level 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -30°C to 60°C
-
Powering
- PoE in 802.3af/at
- PoE in input Voltage 12-57 V
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 6 W
-
Mobile
- 2G Category Class12
- 2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 12 (700MHz) / 17 (700MHz) / 20 (800MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD bands 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41n (2500MHz)
-
Ethernet
- 10/100 Ethernet ports 1
-
Peripherals
- MiniPCI-e slots 1
-
Other
- Mode button Yes
