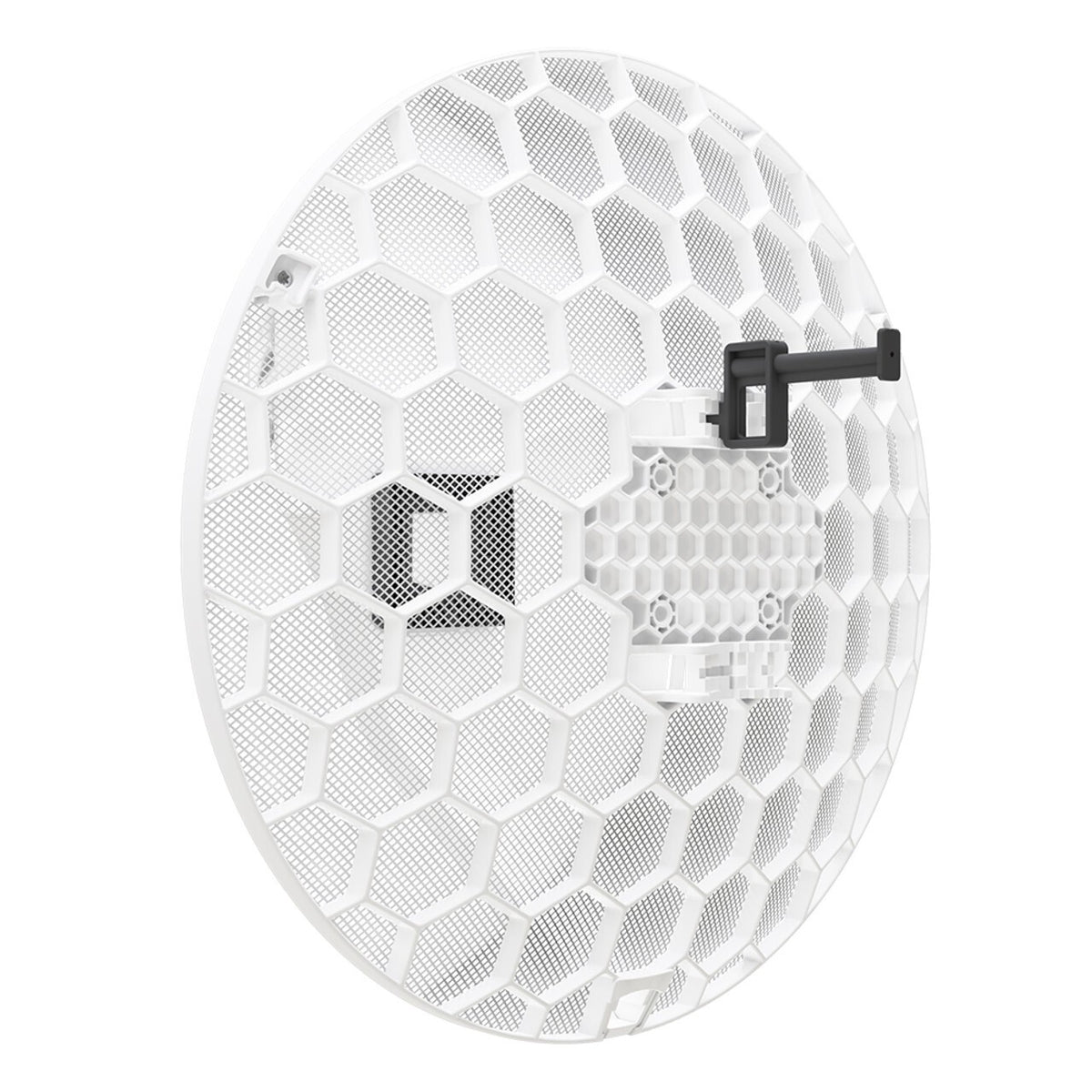

Mikrotik RBLHGG-60AD LHG 60G 60GHz Base Station Gigabit Ethernet

The MikroTik RBLHGG-60AD LHG 60G is a 60 GHz outdoor CPE designed for point-to-multipoint deployments where the 2.4 GHz and 5 GHz spectrum is congested and unreliable. Operating in the unlicensed 60 GHz band, it sidesteps interference from neighboring networks entirely, delivering data rates up to 2 Gbps. Up to eight LHG 60G units can associate with a single compatible 60 GHz access point, covering point-to-multipoint distances up to 800 meters and point-to-point distances up to 1500 meters. The integrated antenna grid construction minimizes cable loss and provides structural resilience against wind loading, while an IP55 ingress rating and a tested operating range of -40 °C to +70 °C make it suitable for demanding outdoor environments. Powered via 802.3af/at PoE, the unit requires no separate power supply at the installation point. RouterOS with a Level 3 license and a quad-core ARM processor with IPsec hardware acceleration round out the platform, giving operators a capable and manageable edge node.

Key features & benefits

• 60 GHz Unlicensed Spectrum — Operates in the 60 GHz band, completely avoiding the congested 2.4 GHz and 5 GHz spectrum and eliminating co-channel interference from neighboring deployments.
• Up to 2 Gbps Data Rate — Delivers throughput up to 2 Gbps, providing the bandwidth headroom needed for high-density subscriber environments or bandwidth-intensive applications.
• Point-to-Multipoint Architecture — Supports connection of up to eight LHG 60G units to a single compatible 60 GHz access point, enabling scalable last-mile distribution from a single sector.
• Extended Reach — Achieves point-to-point distances up to 1500 meters and point-to-multipoint distances up to 800 meters, covering a broad service radius from each access point.
• Integrated Antenna Grid Design — The antenna element is built directly into the wireless unit, eliminating coaxial cable losses, while the grid structure reduces wind load on the mount.
• IP55-Rated Weatherproof Enclosure — IP55 ingress protection combined with a tested ambient temperature range of -40 °C to +70 °C ensures reliable operation in harsh outdoor climates.
• 802.3af/at PoE Powered — Accepts 802.3af/at Power over Ethernet across a 12–57 V input range, simplifying installation by delivering power and data over a single cable with a maximum draw of only 5 W.
• IPsec Hardware Acceleration — The quad-core ARM IPQ-4019 processor includes dedicated IPsec hardware acceleration, enabling encrypted backhaul links without compromising throughput.
• RouterOS Level 3 with ARM Quad-Core Platform — Runs MikroTik RouterOS on a 716 MHz quad-core CPU with 256 MB RAM, providing a familiar, full-featured management environment for professional network operators.
