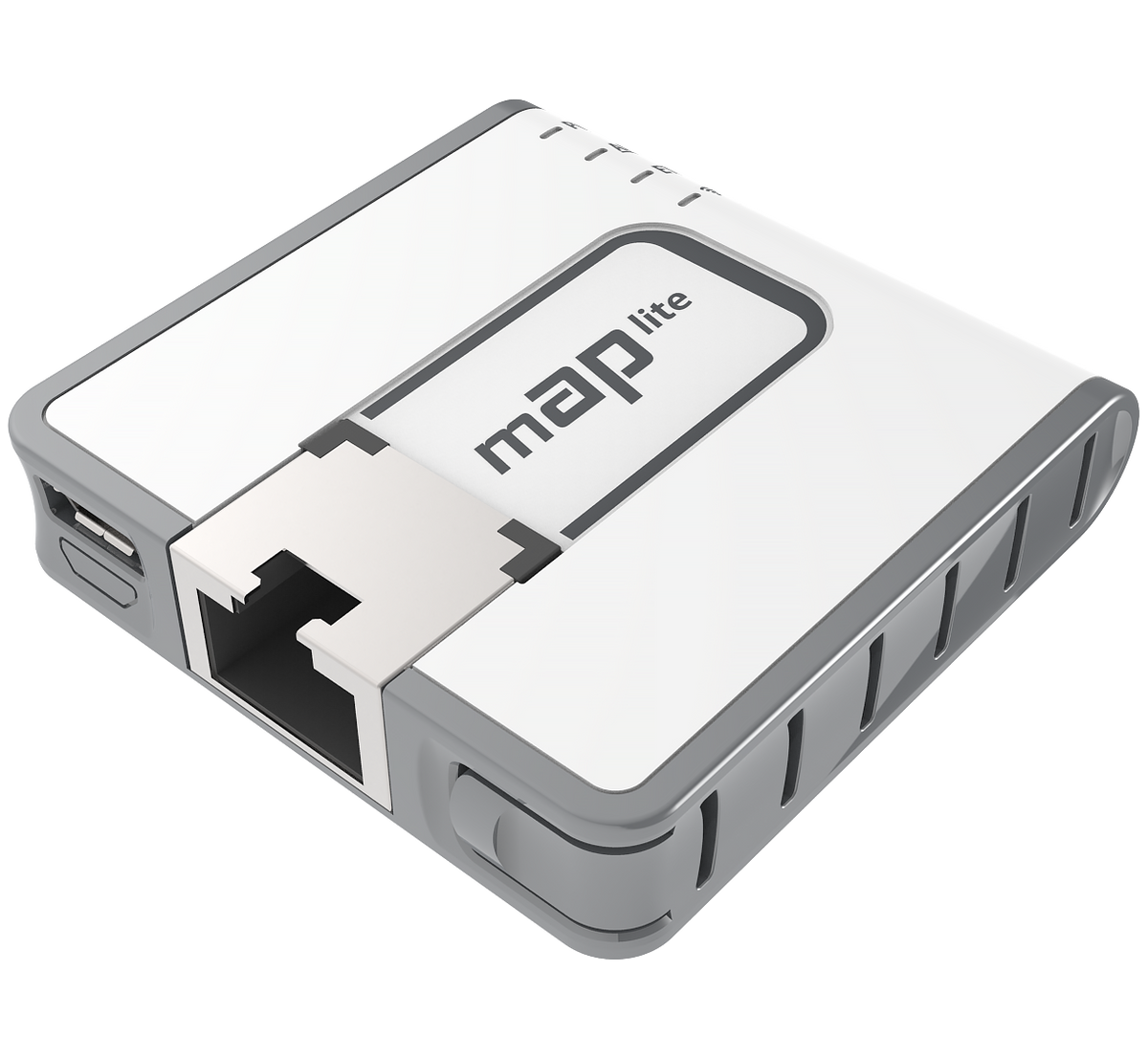

Mikrotik RBMAPL-2ND RouterBOARD mAP Lite 2.4GHz 802.11b/g/n Access Point LAN

The MikroTik RBMAPL-2ND mAP Lite is a compact, purpose-built 2.4 GHz 802.11b/g/n wireless access point designed for space-constrained deployments where reliable, low-power connectivity is a priority. Built on a QCA9533 MIPSBE processor running at 650 MHz with 64 MB of RAM and 16 MB of FLASH storage, the mAP Lite runs MikroTik RouterOS License Level 4, giving network administrators access to a broad set of routing, firewall, and wireless management capabilities in an exceptionally small 48×49×11 mm enclosure. Dual-input powering via 802.3af/at PoE or MicroUSB, a passive cooling design, and a maximum power draw of just 3.5 W make it straightforward to deploy in retail fixtures, hospitality environments, offices, and light industrial settings where cabling flexibility and minimal footprint matter. With a tested ambient operating range of −30 °C to 70 °C and an MTBF of approximately 100,000 hours at 25 °C, the mAP Lite is engineered for long-term, unattended operation.

Key features & benefits

• Dual-Chain 2.4 GHz Wi-Fi 4 Radio — The integrated QCA9533 wireless chipset delivers 802.11b/g/n connectivity with two spatial streams and a maximum data rate of 300 Mbit/s, providing reliable throughput for client-density environments where 2.4 GHz coverage is required.
• Flexible Dual-Input Powering — Accepts power via 802.3af/at PoE over the Ethernet port (10–60 V input range) or through a MicroUSB input at 5 V, enabling deployment wherever a PoE switch or a standard USB power source is available—no dedicated power adapter required in most installations.
• RouterOS License Level 4 — Ships with MikroTik RouterOS License Level 4, unlocking a comprehensive suite of networking features including advanced firewall rules, traffic shaping, VPN, hotspot gateway, and granular wireless client management from a single unified interface.
• Ultra-Compact Passive-Cooled Enclosure — At 48×49×11 mm with fully passive cooling and a maximum power consumption of 3.5 W, the mAP Lite generates minimal heat and fits discreetly into ceiling tiles, wall cavities, furniture, or any installation where size and aesthetics are a concern.
• Wide Operating Temperature Range — Tested from −30 °C to 70 °C ambient, the mAP Lite maintains reliable operation across challenging thermal environments, from cold storage vestibules to warm equipment closets.
• Strong Regulatory Certification Portfolio — Carries CE, FCC, IC, EAC, and RoHS certifications, simplifying procurement and compliance documentation for deployments across North American, European, and Eurasian markets.
• IP20 Rated for Indoor Use — The IP20 ingress protection rating is suited for standard indoor environments, ensuring the unit meets baseline protection requirements for typical commercial and light-industrial interior spaces.
