MikroTik RBwsAP-5Hac2nD wsAP ac lite Dual-Band PoE Access Point
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
The MikroTik wsAP ac lite is a dual-band 802.11ac wireless access point designed for hospitality and indoor deployments. Its wall-mount form factor integrates discreetly into standard wall outlet locations while providing concurrent 2.4 GHz and 5 GHz wireless coverage.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Dual concurrent 2.4 GHz and 5 GHz wireless operation
• Supports 802.11ac wireless standard with backward compatibility for legacy WiFi devices
• Designed for hospitality environments including hotels, hospitals, shopping centers, and airports

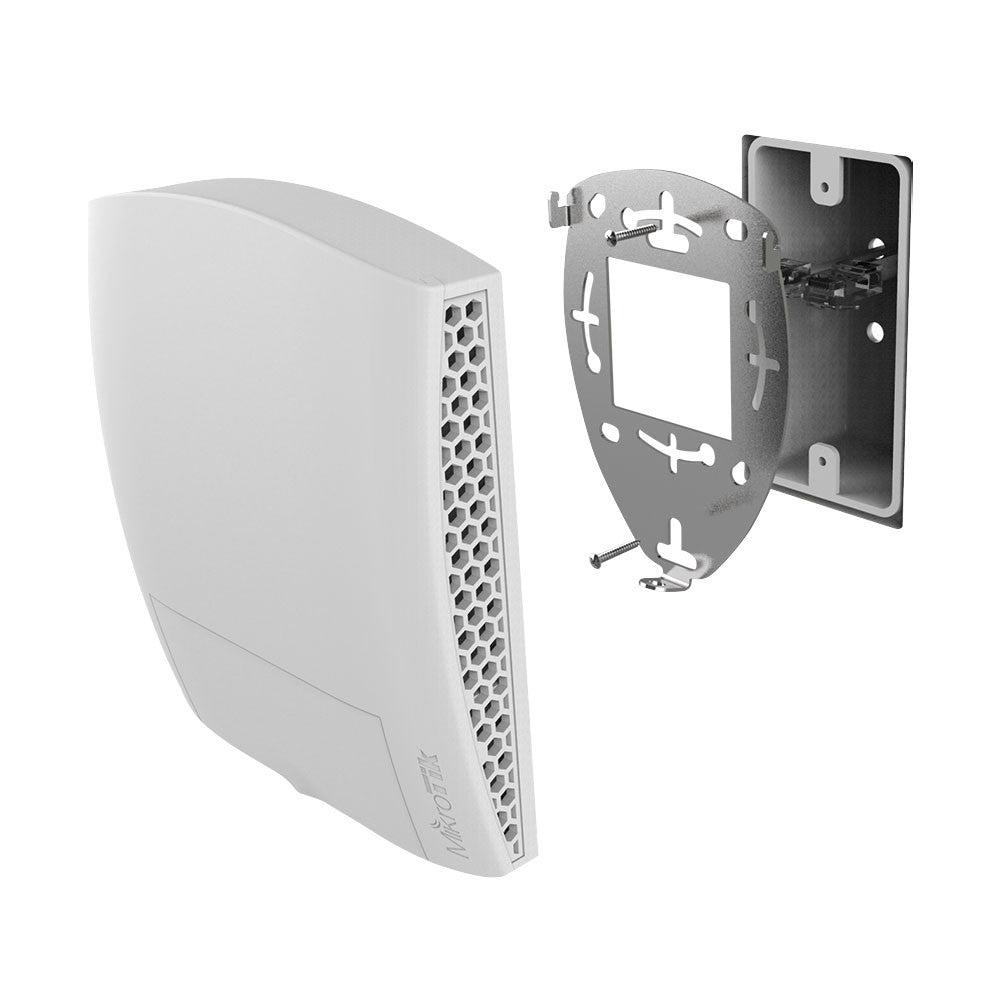

• Low-profile wall-mounted enclosure designed to blend into indoor environments
• Three Fast Ethernet ports for network connectivity
• PoE-In support via 802.3af/at standards
• Passive PoE output capability
• Integrated USB 2.0 Type-A port for device charging or storage applications
• Pass-through RJ11 telephone jack for simplified cable management
• Runs MikroTik RouterOS with License Level 4
• Optional K50 security screw set available separately for restricted enclosure access
TECHNICAL SPECIFICATIONS
• Model: RBwSAP-5Hac2nD
• Product Family: wsAP ac lite
• Architecture: MIPSBE
• CPU: Qualcomm QCA9531
• CPU Cores: 1
• CPU Frequency: 650 MHz
• RAM: 64 MB
• Storage Capacity: 16 MB
• Storage Type: FLASH
• Operating System: RouterOS
• License Level: 4
• Dimensions: 112 x 126 x 30 mm
• Operating Temperature: -40°C to +60°C
Wireless:
• 2.4 GHz Standards: 802.11b/g/n
• 2.4 GHz Chains: 2
• 2.4 GHz Antenna Gain: 1.5 dBi
• 2.4 GHz Chipset: QCA9531
• 5 GHz Standards: 802.11a/n/ac
• 5 GHz Chains: 1
• 5 GHz Antenna Gain: 3 dBi
• 5 GHz Chipset: QCA9887
Ethernet:
• Ethernet Ports: 3 x 10/100 Mbps
Power:
• Power Input: PoE-IN
• PoE Standard: 802.3af/at
• PoE Output: Passive PoE
• Input Voltage Range: 18-57 V
• Maximum Power Consumption: 10 W
Peripherals:
• USB Ports: 1
• USB Type: USB Type-A
• USB Power Reset: Yes
• Maximum USB Output Current: 0.5 A
INTENDED USE / APPLICATIONS
• Hospitality networks
• Hotels and guest rooms
• Hospitals and healthcare facilities
• Shopping malls and retail environments
• Airports and transportation facilities
• Indoor wireless access deployments requiring discreet installation
