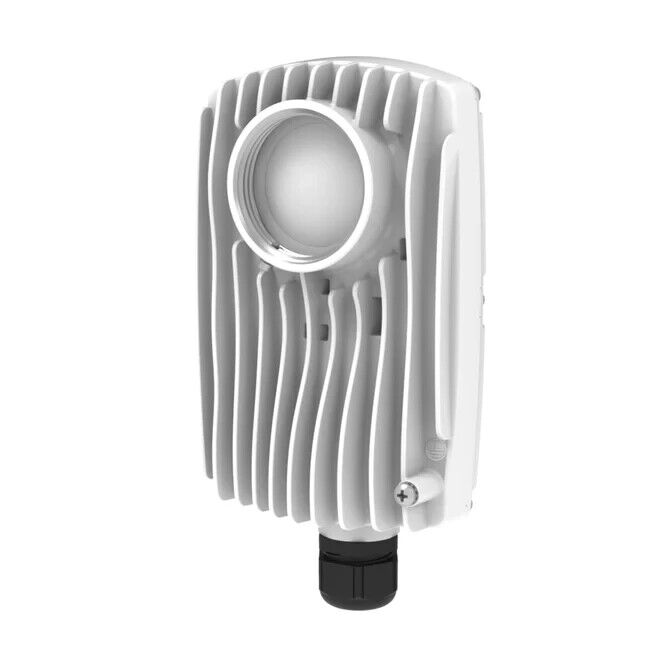

Mimosa C6x Point-to-Multipoint Radio 8 dBi 5-6GHz 802.11ax Wi-Fi 6E

PRODUCT OVERVIEW

Mimosa C6x 5~6GHz 8 dBi Modular Radio for PTMP or PTP 802.11ax Wi-Fi 6E

PRODUCT TYPE

Point-to-Multipoint

KEY FEATURES

• Mimosa C6x 5~6GHz 8 dBi Modular Radio for PTMP or PTP 802.11ax Wi-Fi 6E
• Super Flexible, Super Fast, Super Value Gigabit PTMP Client and PTP With Modular Antennas
• Integrated Radio with Modular Antenna Options
• The C6x radio's native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using modular, X-series, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
• Noise Just Met Its Match
• Incredible Speed and PTMP Scale
• 1.75 Gbps IP aggregate UL/DL (2402 Mbps PHY)
• Wireless Protocols:
• WiFi Interop; Auto-TDD (future release);
• PTMP TDMA (future release)
• PTMP client, 1.75 Gbps
• License key purchase modes:
• MIMO & Modulation:
• 2x2, PTMP MU-MIMO client support, OFDMA,
• 20/40/80/160 MHz channels, tunable to 5 MHz increments
• Frequency Range: PTP/PTMP: 5150–6425 MHz1 3
• (restricted by country of operation)
• Max Output Power: 27 dBm

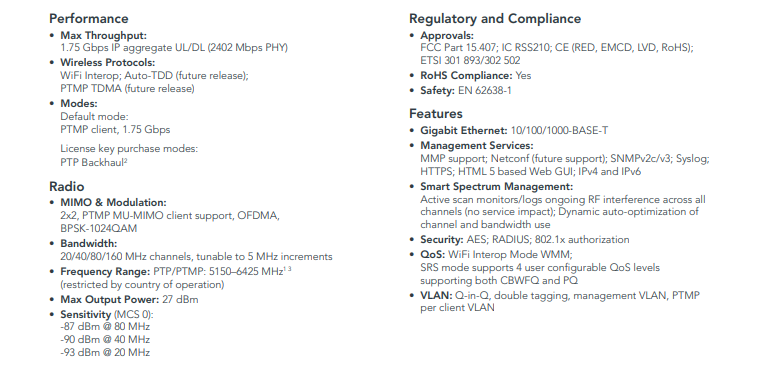

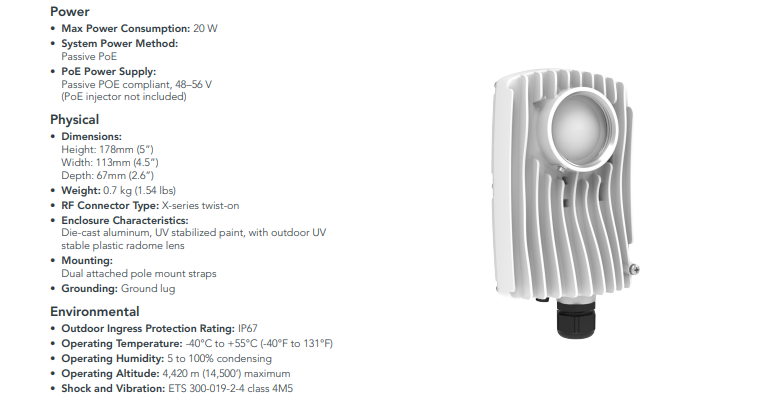

TECHNICAL SPECIFICATIONS

• Brand: Mimosa
• Model: C6x
• Product Type: PtP

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
