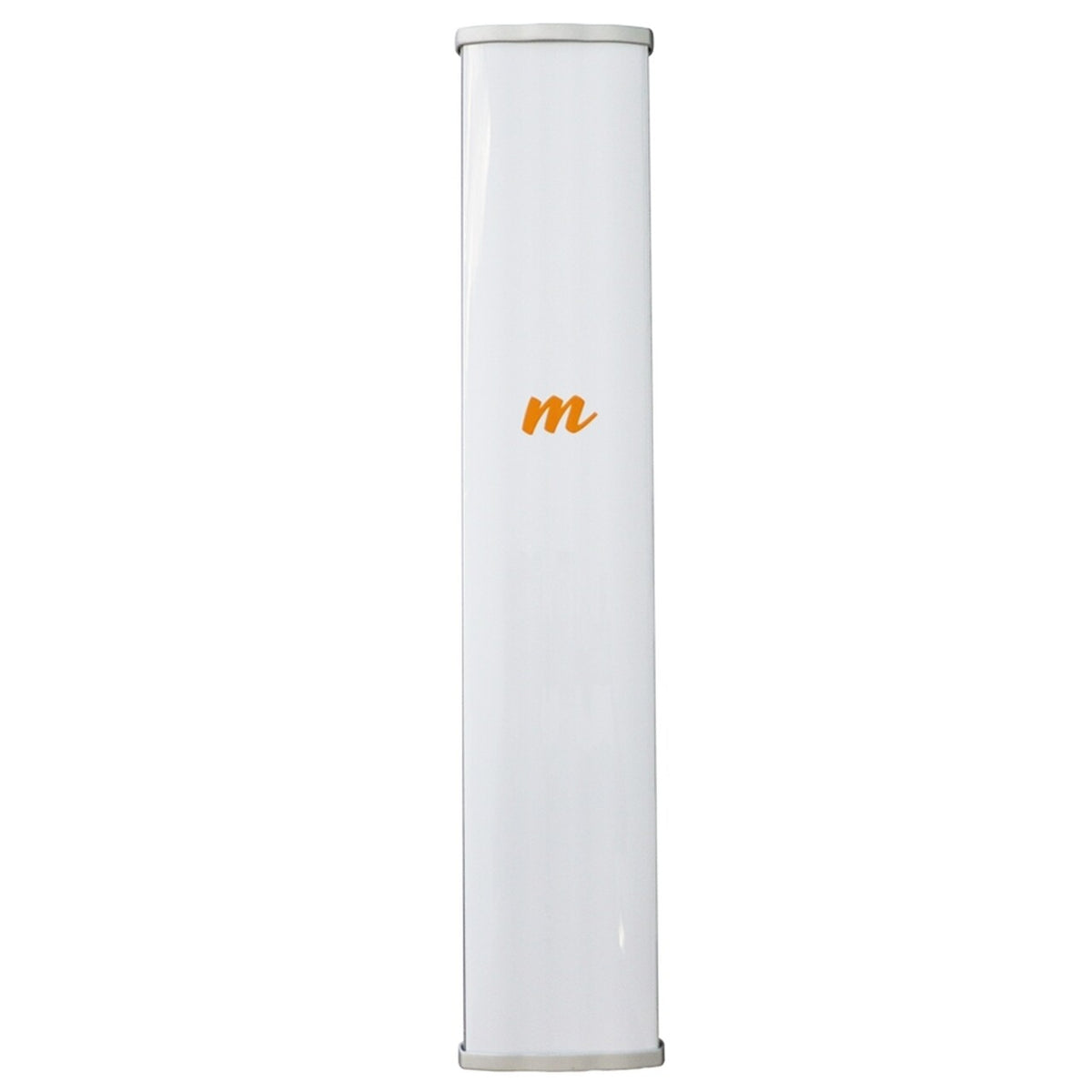

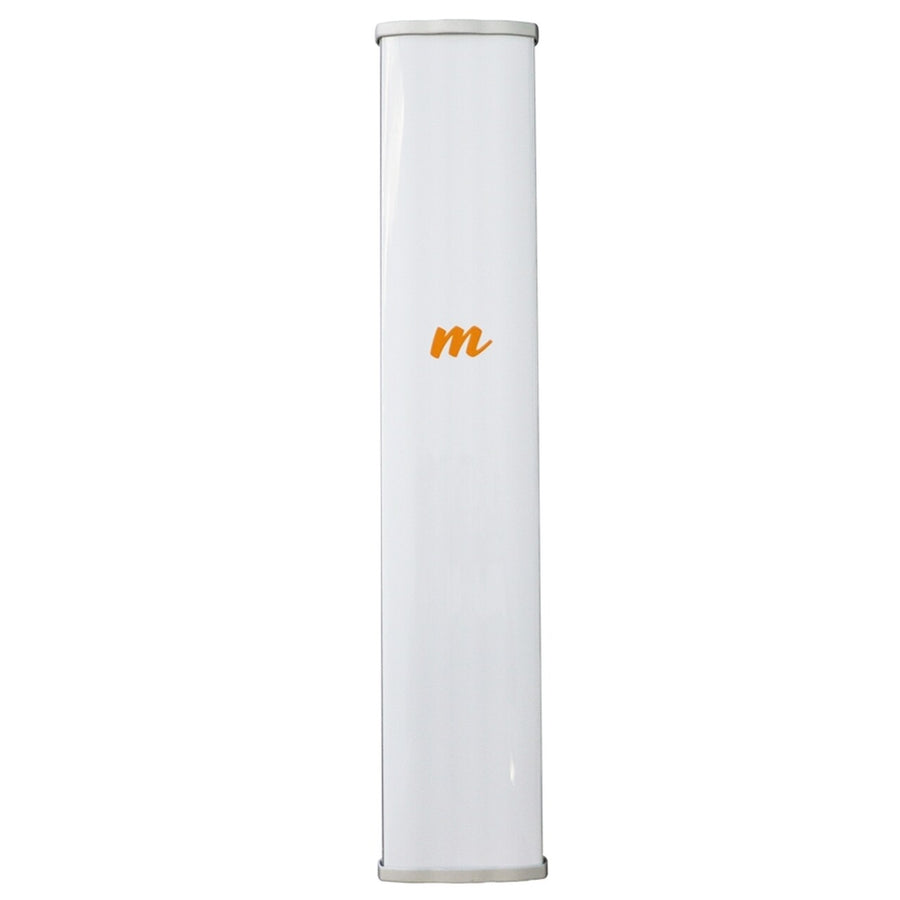

Mimosa N5-45X4 45-Degree Sector Dual-Slant Antenna, 22 dBi 4.9-6.4GHz Beamformi

PRODUCT TITLE

Mimosa N5-45X4 45-Degree Sector Dual-Slant Antenna, 22 dBi 4.9-6.4GHz Beamformi

PRODUCT OVERVIEW

The Mimosa N5-45x4 is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and

PRODUCT TYPE / CATEGORY

• Networking
• Antennas (Networking)

KEY FEATURES

• The Mimosa N5-45x4 is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and
• long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband.
• This 4-port, dual-slant polarization, 45º sector is designed for use with the Mimosa A5c 4x4 MIMO radio,
• delivering gain-enhancing beamforming for the best possible channel reuse, range and noise rejection at collocation and tower sites. Reject Noise and Synchronize
• Overcoming noise at tower sites is key to scaling capacity. The N5-45x4 delivers industry-leading side lobe rejection and an
• unprecedented 43 dB front-toback (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry.
• When used in combination with the Mimosa A5c access point, there’s no higher performance tower solution to deliver full, 2x spectrum reuse.
• Wideband Operation
• Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz
• (where regulations allow), the N5-45x4 provides an additional 800 MHz of spectrum beyond the crowded 5.15–5.85 GHz unlicensed channels.
• The Mimosa N5-45x4 offers the best of both worlds — a long distance, high-gain sector with the superior noise
• isolation of a horn. Competitive sectors offer highgain, but fail to reduce side lobe and front-to-back noise.
• Symmetric horn antennas achieve good noise isolation, but typically offer lower gain and inefficient symmetrical ground coverage patterns.
• Compatible with Third-Party
• Radios In addition to the 4x4 MIMO Mimosa A5c, the N5- 45x4 will support two concurrent third-party 2x2 MIMO
• radios operating on separate channels to double the coverage capacity at a tower site and avoid the congestion of the unlicensed 5 GHz band.
• Designed for Beamforming
• Paired with the 4x4 MIMO Mimosa A5c, the Mimosa N5-45x4 provides an easy-to-aim, 9º vertical beamwidth coverage area

TECHNICAL SPECIFICATIONS

• Brand: Mimosa
• Model: N5-45X4
• Product Type: Antennas (Networking)
• Antenna
• Gain: 22 dBi (+3 dBi from beamforming)
• Polarization: Dual-slant 45º
• Azimuth Beamwidth (4 dB): 45º
• Azimuth Beamwidth (3 dB): 42º
• Elevation Beamwidth (3 db): 9º
• Electrical Downtilt: 2º
• Front-to-Back Ratio (min): 43 dB
• Cross-Polar Isolation: >30 dB
• Port-to-Port Isolation: >10 dB
• Impedance: 50 Ω
• Max Input Power: 30 dBm
• Physical
• Dimensions:
• Height: 734 mm (28.88”)
• Width: 143 mm (6.63”)
• Depth: 76 mm (3.0”) including connectors
• Shipping Box Dimensions:
• Height: 981 mm (38.62”)
• Width: 166 mm (6.53”)
• Length: 105 mm (4.15”)
• Weight: 4.08kg (9.0 lbs)
• RF Connectors: 4 N-type female (includes four 1 meter LMR 240 Type-N to Type-N cables)
• RF Connectors Position: Back of antenna, near center
• Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
• Mounting: Galvanized steel, dual attached pole mount with
• 20º mechanical up or down tilt. Two mounting brackets included.
• For pole sizes, maximum is 3.5” (90 mm) and minimum is 1.5” (38 mm).
• Wind Survivability: 200 km/h (125 mph)

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
