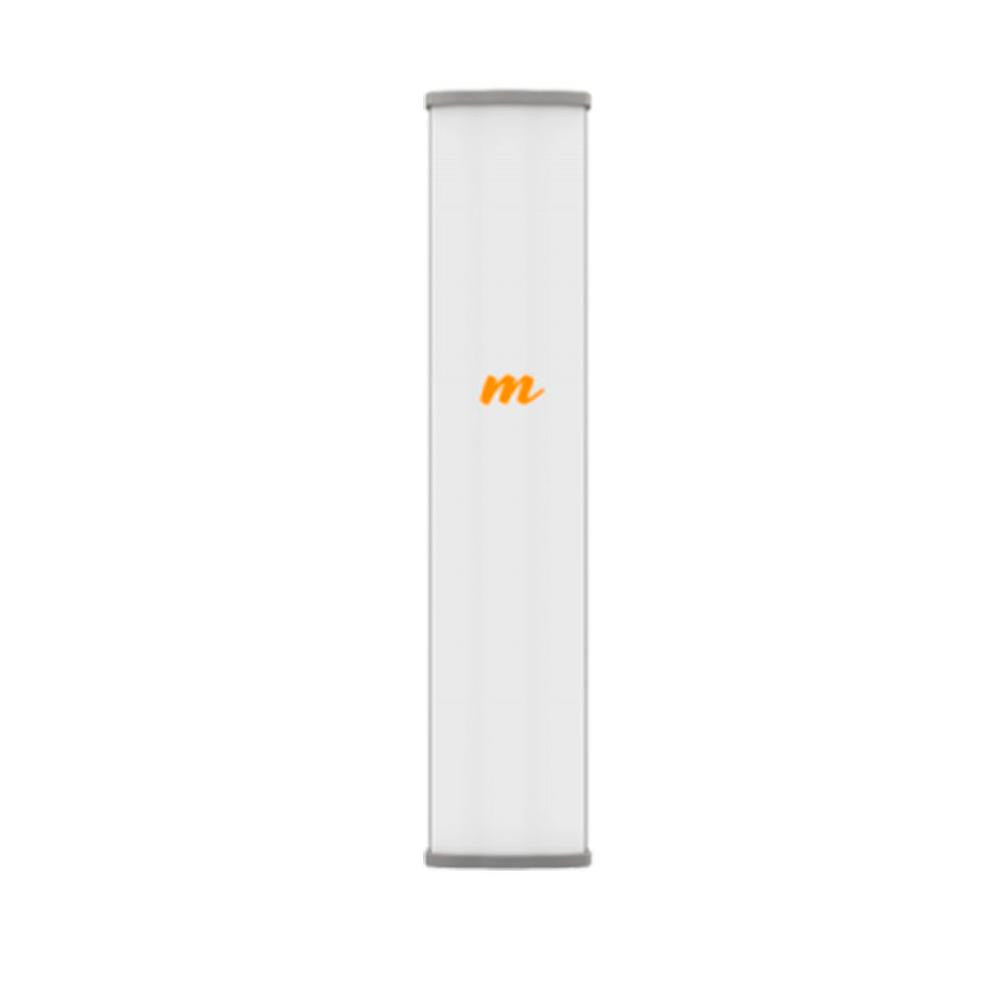

Mimosa N5-45x4 Sector Antenna 4.9-6.4 GHz 4x4 22dBi

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Mimosa N5-45x4 Sector Antenna 4.9-6.4 GHz 4x4 22dBi

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
The Mimosa N5-45x4 is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband . This 4-port, dual-slant polarization, 45º sector is designed for use with the Mimosa A5c 4x4 MIMO radio, delivering gain-enhancing beamforming for the best possible channel reuse, range and noise rejection at collocation and tower sites.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Reject Noise and Synchronize Overcoming noise at tower sites is key to scaling capacity. The N5-45x4 delivers industry-leading side lobe rejection and an unprecedented 43 dB front-toback (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry. When used in combination with the Mimosa A5c access point, there’s no higher-performance tower solution to deliver full, 2x spectrum reuse.
• Wideband Operation Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz (where regulations allow), the N5-45x4 provides an additional 800 MHz of spectrum beyond the crowded 5.15–5.85 GHz unlicensed channels.
• Go the Distance The Mimosa N5-45x4 offers the best of both worlds - a long-distance, high-gain sector with the superior noise isolation of a horn. Competitive sectors offer high gain, but fail to reduce side lobe and front-to-back noise. Symmetric horn antennas achieve good noise isolation, but typically offer lower gain and inefficient symmetrical ground coverage patterns.
• Compatible with Third-Party Radios In addition to the 4x4 MIMO Mimosa A5c, the N5- 45x4 will support two concurrent third-party 2x2 MIMO radios operating on separate channels to double the coverage capacity at a tower site and avoid the congestion of the unlicensed 5 GHz band.
• Designed for Beamforming Paired with the 4x4 MIMO Mimosa A5c, the Mimosa N5-45x4 provides an easy-to-aim, 9º vertical beamwidth coverage area with a narrow, 4.5º signal and +3 dB gain per client. In the uplink direction, the A5c’s digital phasing works with the 4 port N5-45x4, adding +3 dB of receive gain.
• Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse
• World-Class Noise Rejection
• Beamformed High-Gain for Long Distances
• Wideband 4.9–6.4 GHz Sector
• 734 mm (28.88”) x 143 mm (6.63”) x 76 mm (3.0”) - including connectors
• 2.81kg (6.2 lbs)
• Antenna Gain: 22 dBi (+3 dBi from beamforming)
• Polarization: Dual-slant 45º
• Azimuth Beamwidth (4 dB): 45º
• Azimuth Beamwidth (3 dB): 42º
• Elevation Beamwidth (3 db): 9º
• Electrical Downtilt: 2º
• Front-to-Back Ratio (min): 43 dB

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Mimosa
• Model: 100-00084
• Product Type: Antennas (Networking)
• Reject Noise and Synchronize Overcoming noise at tower sites is key to scaling capacity. The N5-45x4 delivers industry-leading side lobe rejection and an unprecedented 43 dB front-toback (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry. When used in combination with the Mimosa A5c access point, there’s no higher-performance tower solution to deliver full, 2x spectrum reuse.
• Wideband Operation Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz (where regulations allow), the N5-45x4 provides an additional 800 MHz of spectrum beyond the crowded 5.15–5.85 GHz unlicensed channels.
• Go the Distance The Mimosa N5-45x4 offers the best of both worlds - a long-distance, high-gain sector with the superior noise isolation of a horn. Competitive sectors offer high gain, but fail to reduce side lobe and front-to-back noise. Symmetric horn antennas achieve good noise isolation, but typically offer lower gain and inefficient symmetrical ground coverage patterns.
• Compatible with Third-Party Radios In addition to the 4x4 MIMO Mimosa A5c, the N5- 45x4 will support two concurrent third-party 2x2 MIMO radios operating on separate channels to double the coverage capacity at a tower site and avoid the congestion of the unlicensed 5 GHz band.
• Designed for Beamforming Paired with the 4x4 MIMO Mimosa A5c, the Mimosa N5-45x4 provides an easy-to-aim, 9º vertical beamwidth coverage area with a narrow, 4.5º signal and +3 dB gain per client. In the uplink direction, the A5c’s digital phasing works with the 4 port N5-45x4, adding +3 dB of receive gain.
• Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse
• World-Class Noise Rejection
• Beamformed High-Gain for Long Distances
• Wideband 4.9–6.4 GHz Sector
• 734 mm (28.88”) x 143 mm (6.63”) x 76 mm (3.0”) - including connectors
• 2.81kg (6.2 lbs)
• Antenna Gain: 22 dBi (+3 dBi from beamforming)
• Polarization: Dual-slant 45º
• Azimuth Beamwidth (4 dB): 45º
• Azimuth Beamwidth (3 dB): 42º
• Elevation Beamwidth (3 db): 9º
• Electrical Downtilt: 2º
• Front-to-Back Ratio (min): 43 dB
• Cross-Polar Isolation: >30 dB
• Port-to-Port Isolation: >10 dB
• Impedance: 50 Ω
• Max Input Power: 30 dBm

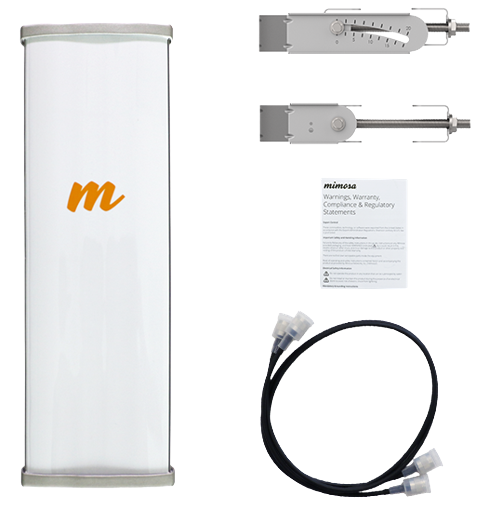

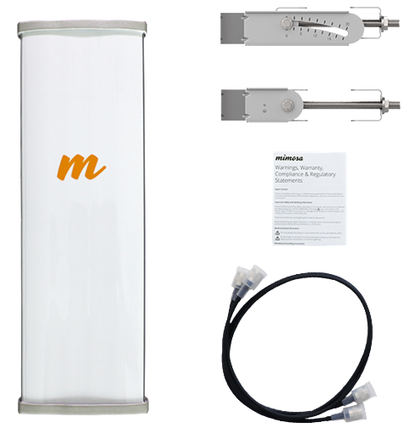

• Physical RF Connectors: 4 N-type female (includes four 1 meter LMR 240 Type-N to Type-N cables)
• RF Connectors Position: Back of antenna, near center
• Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
• Mounting: Galvanized steel, dual attached pole mount with 20º mechanical up or down tilt. Two mounting brackets included. For pole sizes, maximum is 3.5” (90 mm) and minimum is 1.5” (38 mm).
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 4.77 kg @ 160 km/h (10.49 lbs @ 100 mph)
• Environmental Outdoor Ingress Protection Rating: IP55

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
