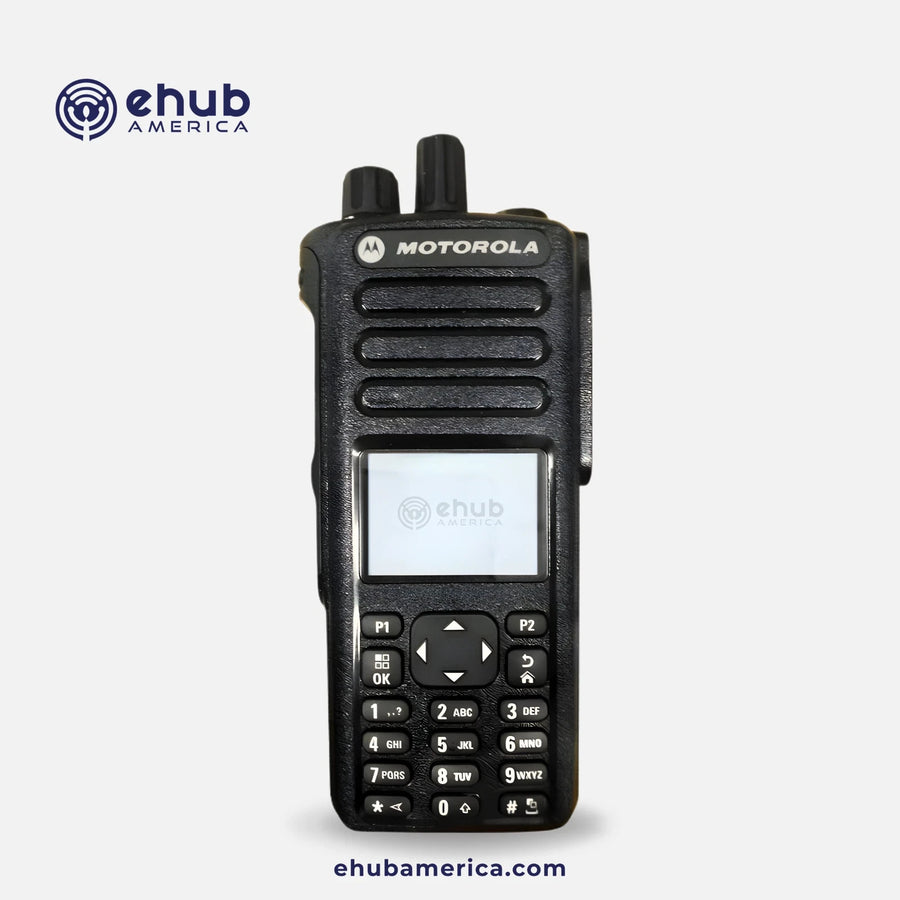

Motorola XPR 7580e Portable Two-Way Radio 800/900MHz AAH56UCN9RB1AN

PRODUCT OVERVIEW

Motorola MOTOTRBO XPR 7580e portable two-way radio with 1000 channels, integrated Bluetooth, Wi-Fi and GPS, full-color display with full keypad, and 800/900 MHz operation for advanced analog and DMR digital communications.

PRODUCT TYPE

700 / 800 MHz Portable Radios

KEY FEATURES

• 800/900 MHz operation (806–825, 851–870, 896–902, 935–941 MHz)
• 2.5 W high / 1 W low power
• 1000 channel capacity
• Full-color display with full keypad and day/night mode
• Analog and DMR digital voice and data
• Integrated Bluetooth 4.0 audio and data
• Integrated Wi-Fi for over-the-air software updates
• Integrated GPS location tracking
• Intelligent Audio with automatic volume adjustment
• Text messaging capability
• Orange programmable emergency button
• IP68 water and dust protection, rugged to MIL-STD 810
• Supports IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus and Capacity Max (enabled versions), and WAVE OnCloud (subscription required)

TECHNICAL SPECIFICATIONS

• Brand: Motorola
• Model: XPR 7580e
• Manufacturer part number: AAH56UCN9RB1AN
• Radio type: Portable / handheld, full keypad
• Frequency band: 800/900 MHz
• Frequency range: 806–825, 851–870, 896–902, 935–941 MHz
• Power output: 2.5 W high / 1 W low
• Channel capacity: 1000
• Channel spacing: 12.5 / 25 kHz (25 kHz not available in USA)
• Digital protocol: DMR, ETSI TS 102 361-1, -2, -3
• Vocoder: AMBE+2
• Bluetooth: 4.0, Class 2, 33 ft (10 m)
• Wi-Fi: IEEE 802.11 b/g/n
• GNSS: GPS
• Battery life (2100 mAh slim): 19.0 h digital / 15.5 h analog
• Battery life (3000 mAh high capacity): 28.0 h digital / 23.0 h analog
• Dimensions (slim battery): 5.1 x 2.2 x 1.4 in (130 x 55 x 36 mm)
• Weight (slim battery): 11 oz (315 g)
• IP rating: IP68
• MIL-STD: 810 C/D/E/F/G
• Operating temperature: -30 °C to +60 °C (-22 °F to 140 °F)
• FCC ID description: AZ489FT7067

INCLUDED ACCESSORIES

• 800/900 MHz antenna (AN000411A01)
• PMNN4543 battery
• PMLN4651A belt clip
• NNTN8117A charger
• 15012157001 accessory cover

INTENDED USE / APPLICATIONS

• Public safety communications
• Oil and gas operations
• Mining environments
• Manufacturing and industrial communications
• Business-critical digital voice and data communications
