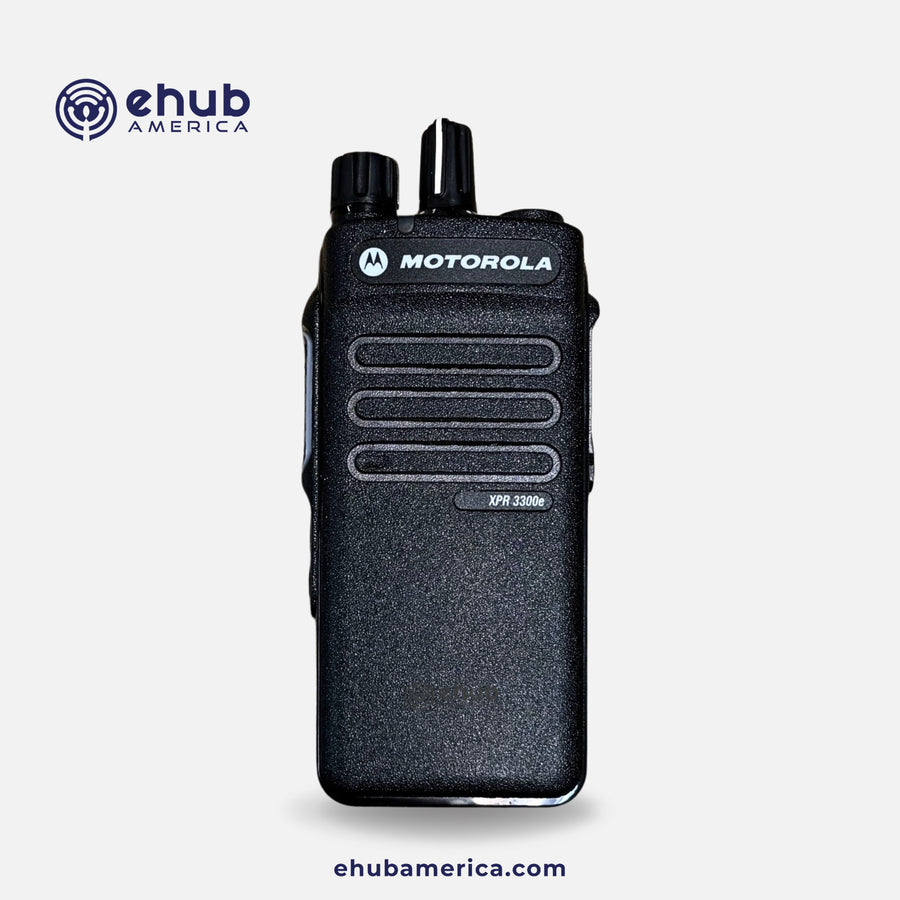

Motorola XPR3300e VHF Digital Portable AAH02JDC9VA1AN 136-174Mhz Mototrbo

PRODUCT OVERVIEW

Motorola XPR 3300e is a VHF digital portable two-way radio delivering reliable MOTOTRBO voice communications with integrated Wi-Fi, Bluetooth, and enhanced audio performance in a rugged, professional, no-display design.

PRODUCT TYPE

VHF Portable Radios

KEY FEATURES

• VHF digital portable radio supporting MOTOTRBO DMR standards
• Frequency range: 136–174 MHz
• Up to 5 W transmit power (VHF), 1 W low power
• 16 channels, no display or keypad, 2 programmable buttons
• Integrated Wi-Fi for over-the-air programming and software updates
• Bluetooth 4.0 for compatible audio accessories
• Intelligent Audio and IMPRES audio support
• IP67 rated for dust and water immersion (1 m for 30 mins)
• Rugged to MIL-STD 810
• Supports analog and digital operation
• UL-approved to TIA-4950 for hazardous locations when equipped with a Motorola UL-approved battery

TECHNICAL SPECIFICATIONS

• Brand: Motorola
• Model: XPR 3300e
• Motorola part number: AAH02JDC9VA1AN
• Radio type: Portable / handheld, no keypad (NKP)
• Frequency band: VHF
• Frequency range: 136–174 MHz
• Channel capacity: 16 channels
• Channel spacing: 12.5 / 25 kHz (25 kHz not available in USA)
• High power output: 5 W
• Low power output: 1 W
• Modulation: 4FSK digital (DMR)
• Digital vocoder: AMBE+2
• Audio output power: 0.5 W rated
• Bluetooth version: 4.0
• Wi-Fi standards: IEEE 802.11 b/g/n
• Battery life (2100 mAh standard): 19.5 h digital / 14.0 h analog
• Battery life (3000 mAh high capacity): 28.5 h digital / 21.0 h analog
• Dimensions (standard battery): 4.8 x 2.2 x 1.4 in (122 x 56 x 36 mm)
• Weight (standard battery): 9 oz (264 g)
• Operating temperature: -30 °C to +60 °C (-22 °F to 140 °F)
• Environmental rating: IP67
• Compliance: FCC, IC, MIL-STD-810
• FCC ID description: AZ489FT7069
