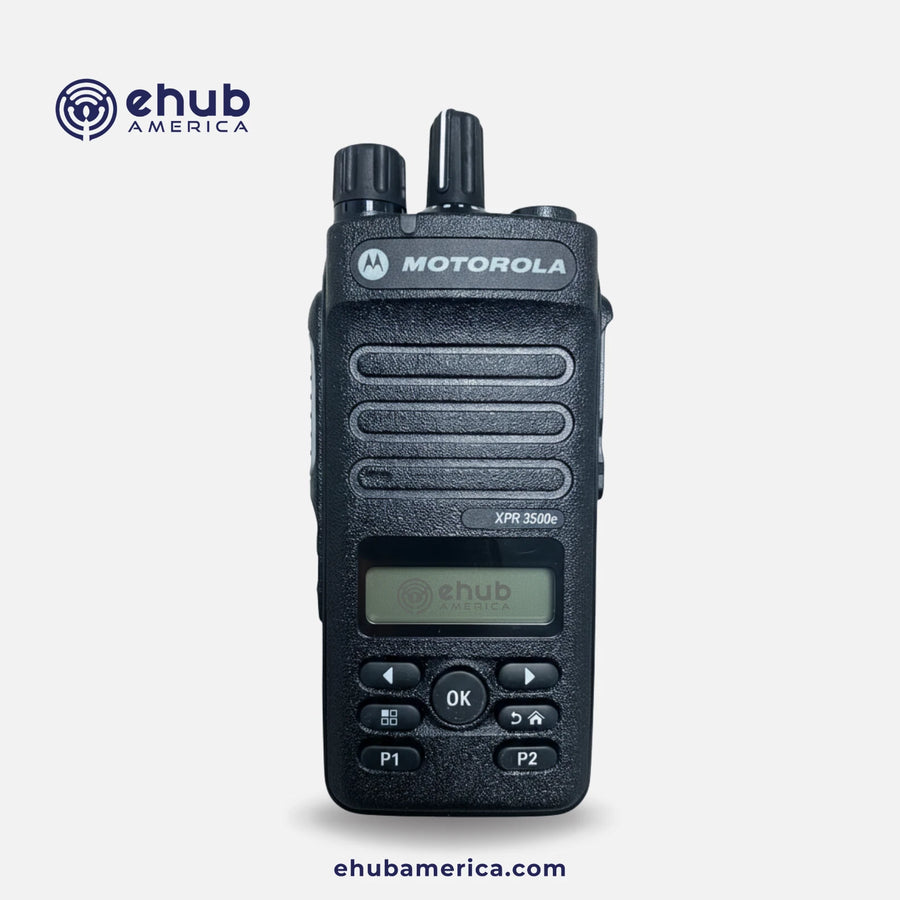

Motorola XPR3500E VHF 136-174 Mhz Digital Portable AAH02JDH9VA1AN IP67 Mototrbo

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Motorola MOTOTRBO XPR3500e VHF 136–174 MHz Digital Portable Radio AAH02JDH9VA1AN IP67

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Motorola MOTOTRBO XPR3500e VHF portable radio supporting analog and DMR digital operation. Features limited keypad with monochrome display, integrated Wi-Fi and Bluetooth audio, 128-channel capacity, and IP67 environmental protection for professional communications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
VHF Portable Radios

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• VHF frequency band: 136–174 MHz
• Model: XPR3500e (Limited Keypad, monochrome display)
• 5W high power / 1W low power output
• 128 channel capacity
• Analog and DMR digital capable (ETSI TS 102 361-1, -2, -3)
• Integrated Wi-Fi
• Bluetooth 4.0 audio
• Over-the-air programming
• Over-the-air software updates
• Intelligent Audio and IMPRES™ audio
• SINC+ Noise Cancellation
• Acoustic Feedback Suppressor
• Channel lock (XPR3500e only)
• Basic and Enhanced Privacy
• Lone Worker
• Transmit Interrupt (encode/decode)
• IP Site Connect
• Capacity Plus (single-site and multi-site)
• Dual Capacity Direct Mode
• IP67 dust and water protection
• Rugged to MIL-STD-810
• Hazardous location models available

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GENERAL
• Frequency Range: 136–174 MHz
• Channel Spacing: 12.5 / 25 kHz
• Channel Capacity: 128
• Power Supply: 7.5V (nominal)
• Frequency Stability: ±0.5 ppm

RF OUTPUT
• High Power: 5W
• Low Power: 1W

RECEIVER
• Analog Sensitivity (12 dB SINAD): 0.16 µV
• Digital Sensitivity (5% BER): 0.14 µV
• Intermodulation (TIA603D): 70 dB
• Adjacent Channel Selectivity: 60 dB (12.5 kHz), 70 dB (25 kHz)
• Spurious Rejection: 70 dB

TRANSMITTER
• 4FSK Digital Modulation:
– 7K60F1D (Data)
– 7K60F1E (Voice)
– 7K60F1W (Voice & Data)
• Conducted/Radiated Emissions: -36 dBm (<1 GHz), -30 dBm (>1 GHz)
• Adjacent Channel Power: 60 dB (12.5 kHz), 70 dB (25 kHz)

AUDIO
• Digital Vocoder: AMBE+2™
• Rated Audio Output: 0.5W
• Audio Distortion at Rated Audio: 3%
• Hum and Noise: -40 dB (12.5 kHz), -45 dB (25 kHz)

BLUETOOTH
• Version: 4.0
• Range: Class 2 (up to 10 m / 33 ft)
• Supported Profiles: HSP, SPP
• Simultaneous Connections: 1 audio accessory

WI-FI
• Standards Supported: IEEE 802.11b/g/n
• Security Protocols: WPA, WPA2, WEP
• Maximum Number of SSIDs: 64

ENVIRONMENTAL
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Dust and Water Intrusion: IEC 60529 IP67 (1 meter for 30 minutes)
• Electrostatic Discharge: IEC 61000-4-2 Level 4
• Packaging Test: MIL-STD 810D and E

PHYSICAL
• Dimensions (H x W x D) with Standard Battery: 4.8 x 2.2 x 1.4 in (122 x 56 x 36 mm)
• Weight with Standard Battery: 10 oz (281 g)
• Dimensions (H x W x D) with High Capacity Battery: 4.8 x 2.2 x 1.7 in (122 x 56 x 42 mm)
• Weight with High Capacity Battery: 11 oz (309 g)

BATTERY LIFE (5/5/90 PROFILE)
• Standard 2100 mAh Battery (Digital/Analog): 19.5 / 14.0 hrs
• High Capacity 3000 mAh Battery (Digital/Analog): 28.5 / 21.0 hrs

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐒𝐇𝐈𝐏𝐏𝐈𝐍𝐆
• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues

Shipping Restrictions:
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐑𝐄𝐓𝐔𝐑𝐍𝐒
• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐃𝐀𝐓𝐀 𝐀𝐂𝐂𝐔𝐑𝐀𝐂𝐘 𝐃𝐈𝐒𝐂𝐋𝐀𝐈𝐌𝐄𝐑
Product details are based on available manufacturer information and may be subject to change without notice.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
