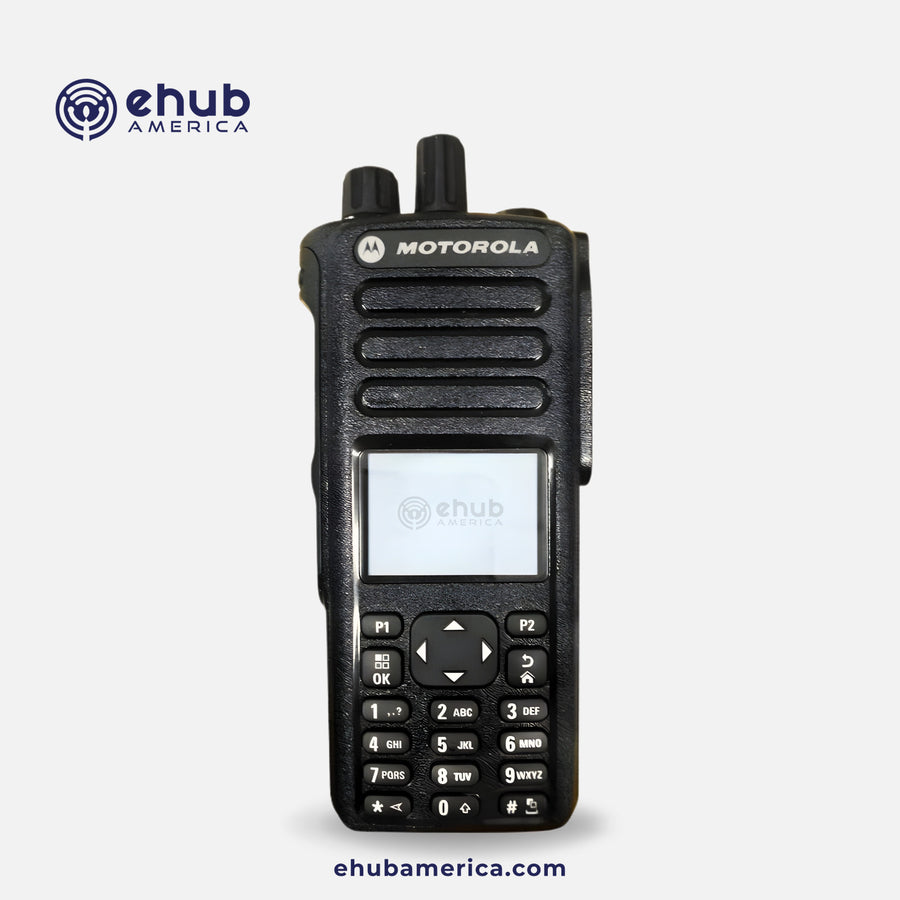

Motorola XPR7550e UL UHF Digital Two-Way Radio Intrinsically Safe Mototrbo
Product identifier
SKU
XPR7550e UL UHF
$649.00
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Motorola MOTOTRBO XPR 7550e UHF digital portable radio with UL Intrinsically Safe certification, designed for professional and industrial communications in hazardous environments. Full keypad with color display, integrated Bluetooth, Wi-Fi and GPS, and analog / DMR digital operation.
PRODUCT TYPE
UHF Portable Radios
KEY FEATURES
- UHF 403–512 MHz operation, 4 W high / 1 W low power
- UL-approved to TIA-4950 for hazardous locations when equipped with a Motorola UL-approved battery
- Full keypad with color display and day/night screen mode
- Up to 1000 channels
- Analog and DMR digital (MOTOTRBO) voice and data
- Integrated Bluetooth 4.0 audio and data
- Integrated Wi-Fi for over-the-air software updates
- Integrated GPS location tracking
- Intelligent Audio and IMPRES Audio
- Orange emergency button with Transmit Interrupt
- Integrated accelerometer for optional Man Down
- Waterproof to IP68 (2 m for 2 hrs), rugged to MIL-STD 810
TECHNICAL SPECIFICATIONS
- Brand: Motorola
- Model: XPR 7550e UL (UHF)
- Series: MOTOTRBO XPR 7000e
- Radio type: Portable / handheld, full keypad
- Frequency band: UHF
- Frequency range: 403–512 MHz
- Power output: 4 W high / 1 W low
- Channel capacity: 1000
- Channel spacing: 12.5 / 25 kHz (25 kHz not available in USA)
- Digital protocol: DMR, ETSI TS 102 361-1, -2, -3
- Vocoder: AMBE+2
- Bluetooth: 4.0, Class 2, 33 ft (10 m)
- Wi-Fi: IEEE 802.11 b/g/n
- GNSS: GPS
- Battery life (2100 mAh slim): 19.0 h digital / 14.5 h analog
- Battery life (3000 mAh high capacity): 28.0 h digital / 21.5 h analog
- Dimensions (slim battery): 5.1 x 2.2 x 1.4 in (130 x 55 x 36 mm)
- Weight (slim battery): 11 oz (315 g)
- IP rating: IP68
- MIL-STD: 810 C/D/E/F/G
- Operating temperature: -30 °C to +60 °C (-22 °F to 140 °F)
- Hazardous location: UL TIA-4950, Div 1 Class I, II, III Groups C, D, E, F, G; Div 2 Class I Groups A, B, C, D; T3C
- FCC ID description: AZ489FT7065
INTENDED USE / APPLICATIONS
- Professional and industrial communications in hazardous environments
