PCTEL

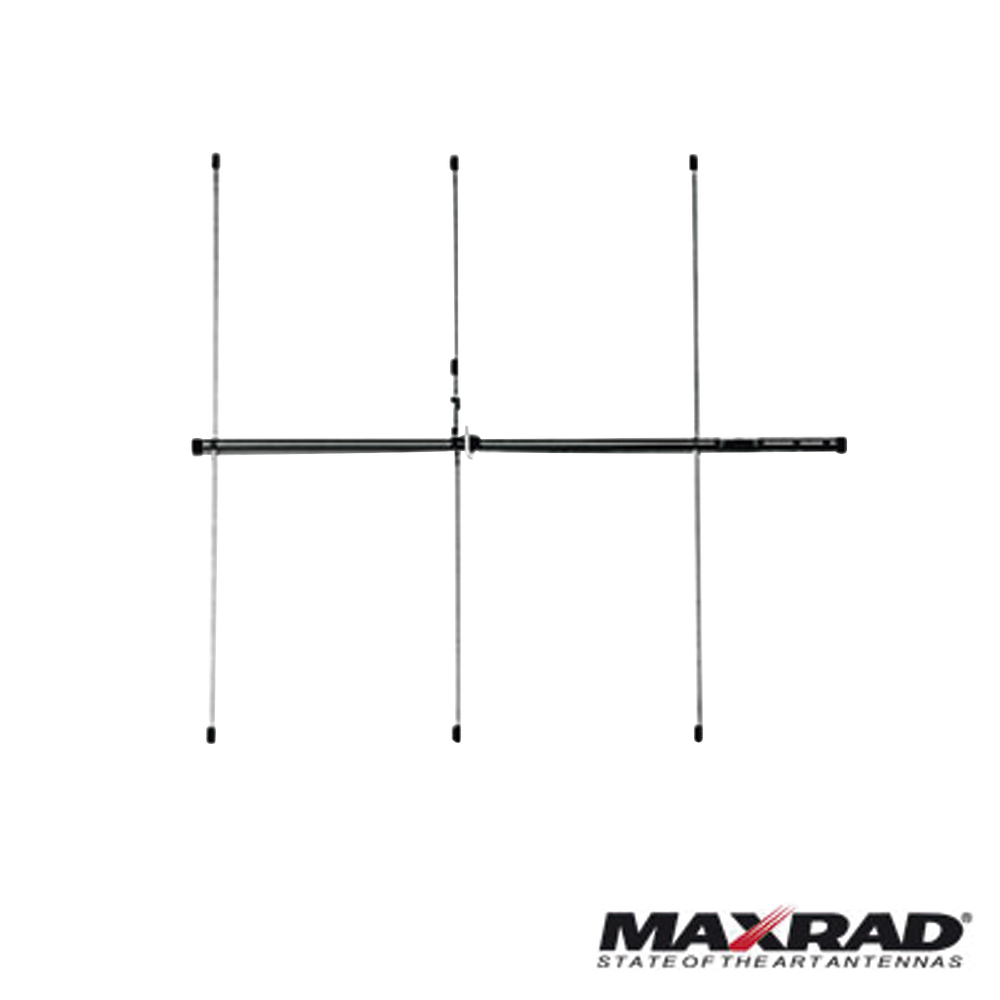

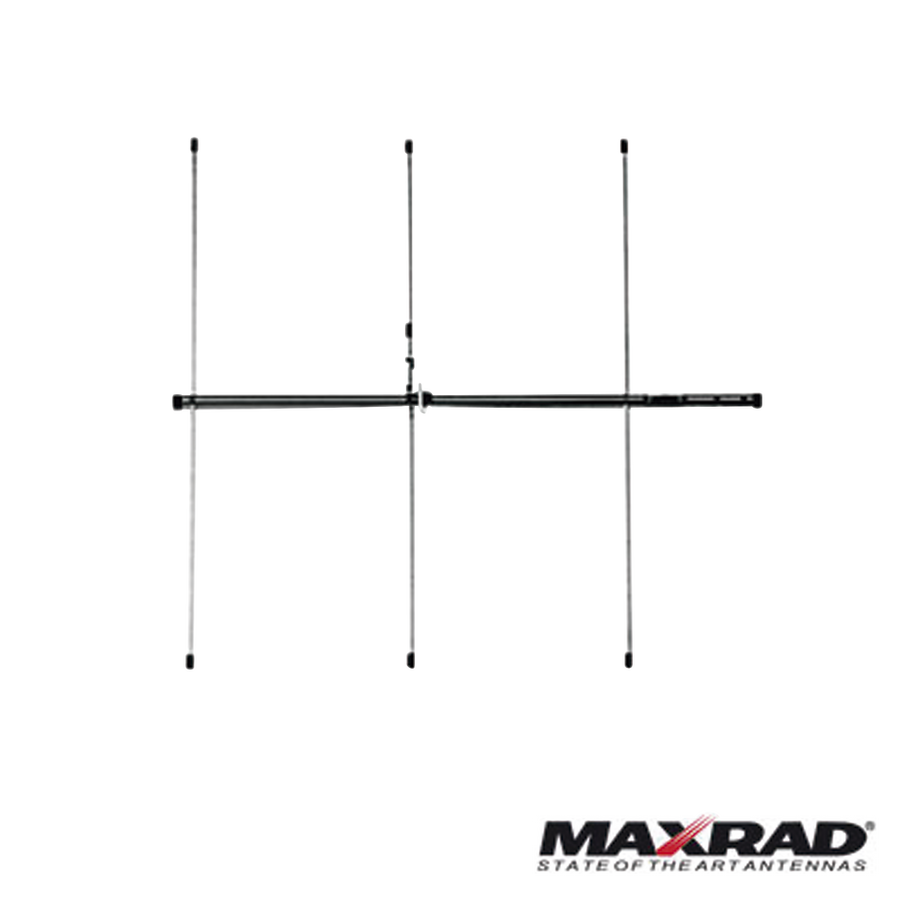

PCTEL MYA-1503K VHF Base Antenna, Directional, 150-174 MHz (Yagi 3 elements)
Product identifier
SKU
MYA-1503K
$133.20
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
- Type: Yagi/ 3 elements
- Frequency range: 150-174 MHz
- Gain: 7.1 dB
- Bandwidth: 0.7 MHz
- Power: 250 W
- Connector: UHF Female
- Wind resistance: 100 mph (161 km/h)
The Yagi antennas of the PCTEL MYA series are high-performance antennas, their aluminum construction makes them very resistant antennas. The elements are grounded.
Key Features
- 3 Element Yagi Design With 9.2 dBi High Gain Performance
- Seamless 6061-T6 Aluminum Construction for Maximum Durability
- Wind Resistance up to 100 mph for Harsh Outdoor Environments
- 50 Ohm Impedance With 1.5:1 VSWR for Optimal Signal Quality
- Grounded Elements Provide ESD Protection for Equipment Safety
- SO-239 UHF Female Connector for Standard Radio Compatibility
