Cambium Networks N000065L031A PTP650/ PTP670 Mounting Bracket for Integrated ODU
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

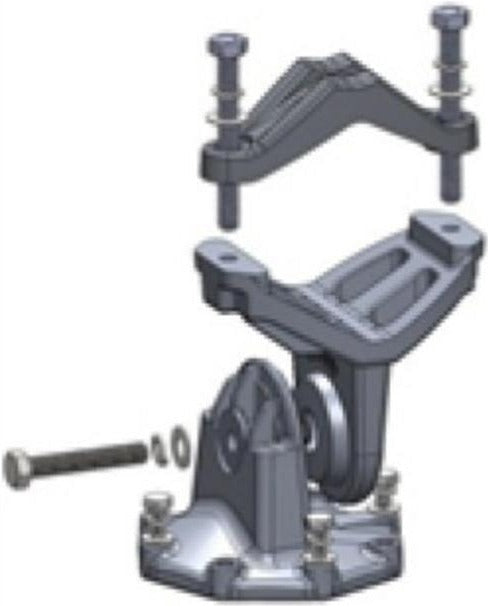

Cambium Networks N000065L031A PTP650 PTP670 Integrated ODU Mounting Bracket
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks integrated ODU mounting bracket for compatible PTP integrated outdoor units. Manufacturer documentation specifies pole mounting and elevation adjustment capability.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Integrated ODU mounting bracket
• Designed for pole-mounted installations
• Provides elevation adjustment
• Manufacturer documentation identifies compatibility with PTP 650 Integrated, PTP 650S Integrated, and PTP 650L Integrated ODUs
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Part Number: N000065L031A
• Product Type: Integrated ODU Mounting Bracket
• Mounting Type: Pole mount
• Supported Pole Diameter: 40 mm to 82 mm (1.6 in to 3.2 in)
• Documented ODU Variants: PTP 650 Integrated, PTP 650S Integrated, PTP 650L Integrated
• Manufacturer Base Bracket Part Number: N000065L031
• Large Diameter Configuration: N000065L031 used with N000065L042 extension kit supports pole diameters from 89 mm to 229 mm (3.5 in to 9.0 in)
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Mounting compatible integrated PTP outdoor units to poles
• Standard configuration supports poles from 40 mm to 82 mm (1.6 in to 3.2 in)
• Can be used with the separately identified N000065L042 large diameter extension kit for supported larger-diameter pole installations
