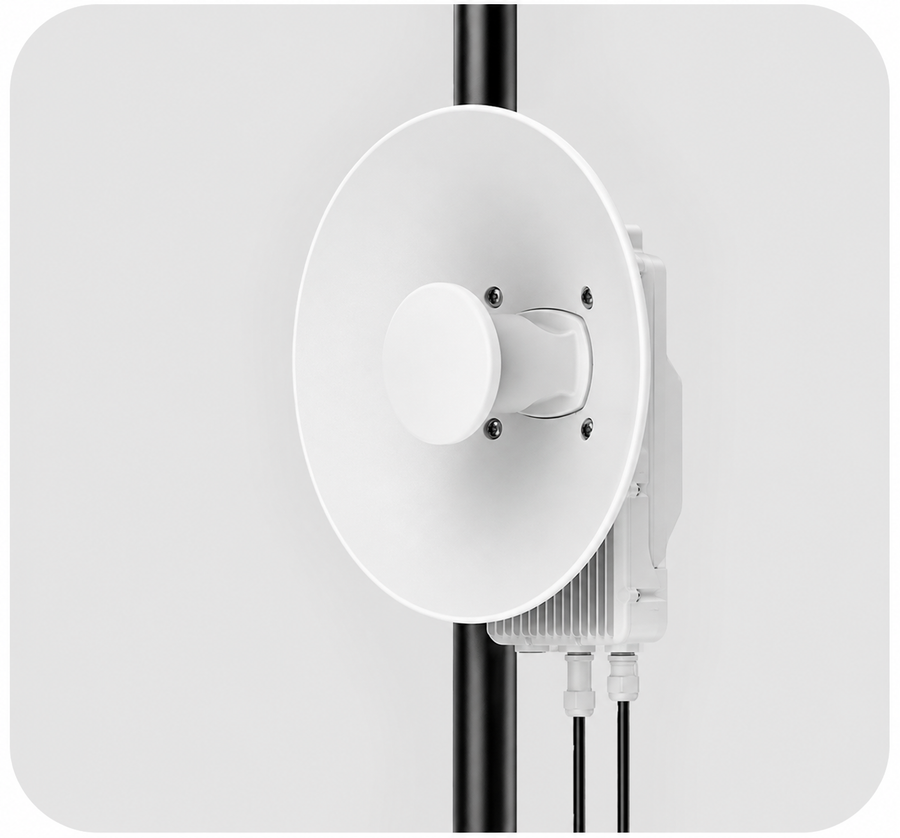

Cambium Networks N060045D401A (4-Pack) 6GHz 4x4 Dish Antenna for 450v

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks N060045D401A 4-Pack High Gain Dish Mechanical Assembly for PMP 450v

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
4-pack of Cambium Networks N060045D401A high-gain dish mechanical assemblies for the PMP 450v platform, which supports operation from 5.150 GHz to 7.125 GHz.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Antennas (Networking)

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Manufacturer part number: N060045D401A
• High Gain Dish Mechanical Assembly
• Designed for the Cambium Networks PMP 450v platform
• PMP 450v platform supports 5.150 GHz to 7.125 GHz operation
• PMP 450v integrated dish antenna peak gain: 22 dBi
• Dual-linear H+V polarization
• 7° azimuth 3 dB beamwidth
• 7° elevation 3 dB beamwidth
• Quantity: 4 assemblies

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Part Number: N060045D401A
• Manufacturer Description: High Gain Dish Mechanical Assembly
• Compatible Platform: PMP 450v
• Platform Frequency Range: 5.150 GHz–7.125 GHz
• Integrated Antenna Peak Gain: 22 dBi
• 3 dB Beamwidth, Azimuth: 7°
• 3 dB Beamwidth, Elevation: 7°
• Polarization: Dual Linear, H+V
• Front-to-Back Isolation: >30 dB (>25 dB at sector edge)
• Cross Polarization: 15 dB
• VSWR: <2
• PMP 450v Dish Dimensions: 462 mm diameter x 264 mm depth (18.1 in diameter x 10.4 in depth)
• PMP 450v Weight: 4.5 kg (9.9 lb); 6.5 kg (14.3 lb) with bracket
• Wind Survival: 200 kph (124 mph)
• Quantity: 4

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
For use with the Cambium Networks PMP 450v fixed wireless platform. The PMP 450v supports subscriber module deployments and point-to-point backhaul applications.
