ASTRON

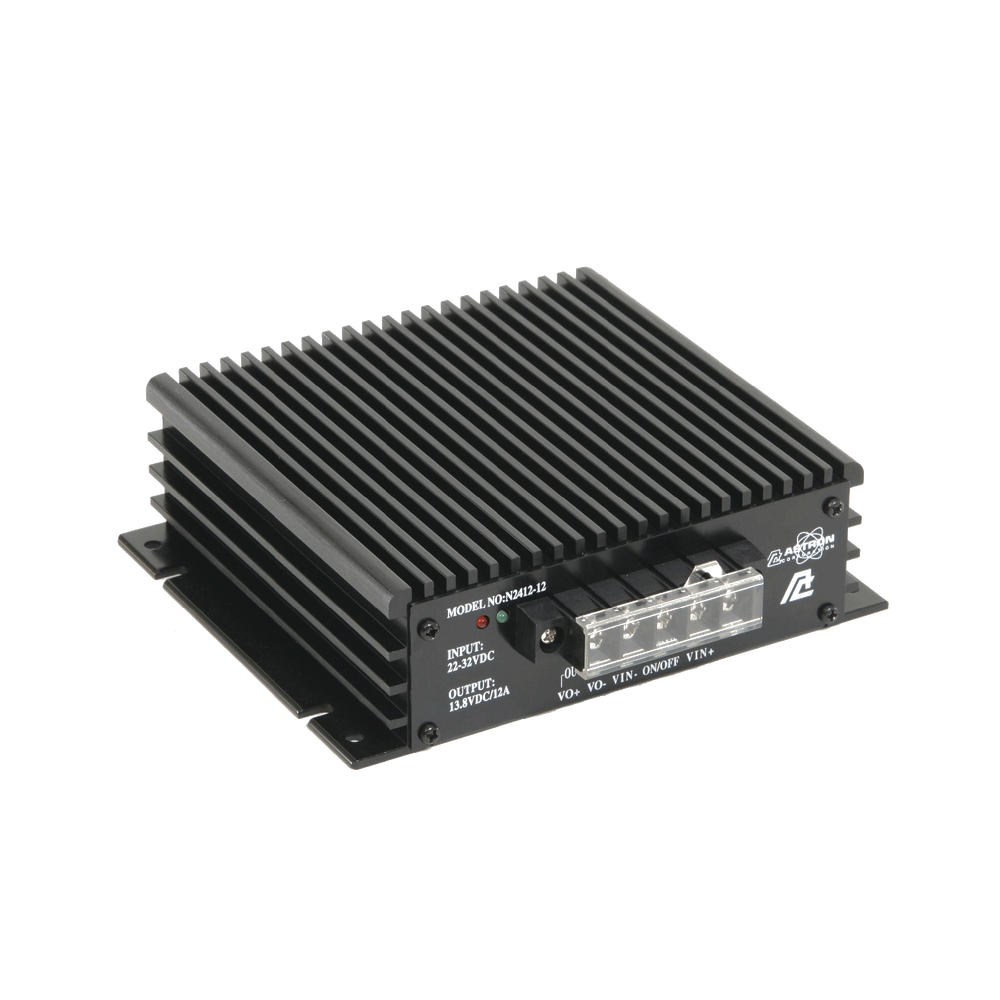

Astron N2412-12 Converters 22 - 32 V, 13.8 Vdc, 10 Amp DC-DC
Product identifier
SKU
N2412-12
$112.49
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
DC-DC Converter
Standard Features
- Over-voltage protection
- Over-current protection
- Short circuit protection
- Terminal block connectors
- Additional terminal provided to allow converters to be turned ON and OFF with the ignition switch.
Technical Specifications
- Input voltage: 22-32 VDC
- Output voltage: 13.8 VDC
- Current: 10 Amps
- Dimensions: 5 x 16 x 18 cm (1.97 x 6.3 x 7.09 in)
Key Features
- Comprehensive Protection Against Overvoltage and Overcurrent
- Short Circuit Protection for Enhanced System Safety
- Stable 13.8 VDC Output Voltage Regulation
- Wide Input Voltage Range From 22 to 32 VDC
- Integrated Terminal Block Connector for Easy Installation
- Compact Dimensions of 2 x 6.3 x 7.1 Inches
