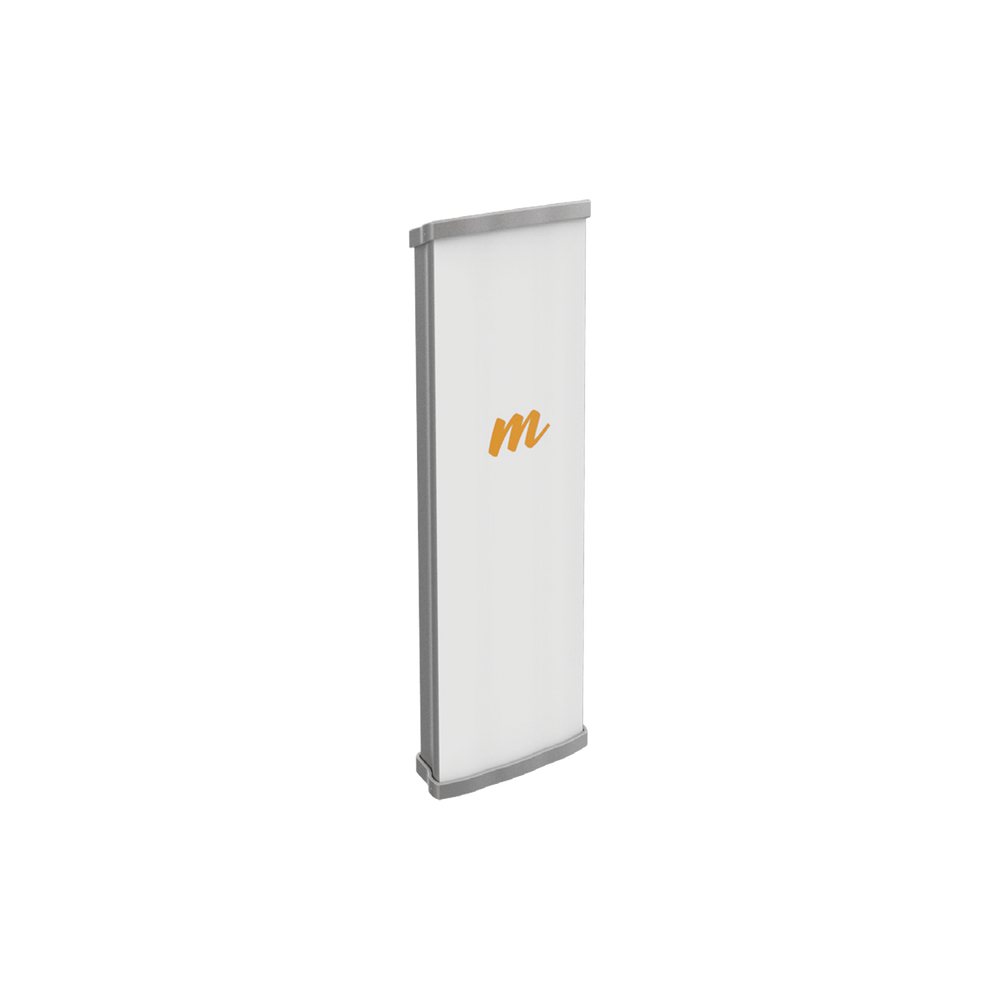

Mimosa N5-45x2 Sector Antenna

The Ultimate in Sector Performance for Wireless Networks

Engineered for the next generation of high-performance wireless networks, the Mimosa N5-45x2 combines the wide coverage of a sector antenna with the interference-resistant precision of a horn. Designed for the 4.9–6.4 GHz band, this antenna delivers unmatched performance for high-capacity multipoint deployments.

Key Highlights

• 19 dBi High Gain for extended reach and superior throughput
• 43 dB Front-to-Back Ratio for minimal interference and frequency reuse
• Wideband 4.9–6.4 GHz for flexible deployments
• Dual-Slant 45° MIMO 2×2 – compatible with any brand of MIMO radio

Perfect for:

• High-Speed Internet Access Providers (WISPs)
• Public Safety and Government Networks
• Fixed 5G and Rural Broadband
• UHD Video Surveillance Backhaul

Why Choose the N5-45x2?

No Side Lobes – Pure Signal, Pure Performance

Advanced RF design ensures an ultra-clean 42° beamwidth with virtually no sidelobes, reducing noise and maximizing link stability even in dense environments.

Beamformed High Gain with Mimosa A5c

When paired with the Mimosa A5c 4×4 MIMO access point, the N5-45x4 achieves an additional +3 dB beamforming gain in both uplink and downlink, maximizing network efficiency.

What’s in the Box

• N5-45x2 Antenna
• Two × 1 m LMR-240 Cables with Weatherized Boots
• Pivot and Sliding Mount Brackets

Technical Specifications

• Frequency Range: 4.9 – 6.4 GHz
• Gain: 19 dBi
• Beamwidth: 45° H / 9° V
• Tilt Adjustment: ±20° mechanical
• Connectors: 2 × N-Female (includes 1 m RF LMR-240 cables)
• Polarization: Dual Slant 45°
• Cross-Polar Isolation: > 30 dB
• Front-to-Back Ratio: 43 dB min
• Impedance: 50 Ω | Max Input Power: 30 dBm
• Wind Resistance: Up to 200 km/h (125 mph)
• Protection: IP55 | Operating Temp: –40 to +55 °C
• Weight: 2.81 kg (6.2 lb)

Dimensions

Antenna:
Height 427 mm (16.8 ″) | Length 143 mm (5.6 ″) | Width 76 mm (3.0 ″)
Shipping:
Height 662 mm (26 ″) | Width 166 mm (6.5 ″) | Length 100 mm (3.9 ″)

Boost your wireless coverage with precision-engineered performance. The Mimosa N5-45x2 is the trusted choice for WISPs, enterprises, and city-wide wireless networks.

Key Features

• Dual Slant 45° Polarization for MIMO 2x2 Compatibility
• Exceptional 43 dB Front-to-Back Ratio for Superior Performance
• Wide -40°F to 131°F Operating Temperature Range
• IP55 Weatherproof Rating for Harsh Outdoor Environments
• Wind Resistance up to 125 mph for Extreme Conditions
• Includes Two N-Male to N-Male LMR-240 Jumper Cables
