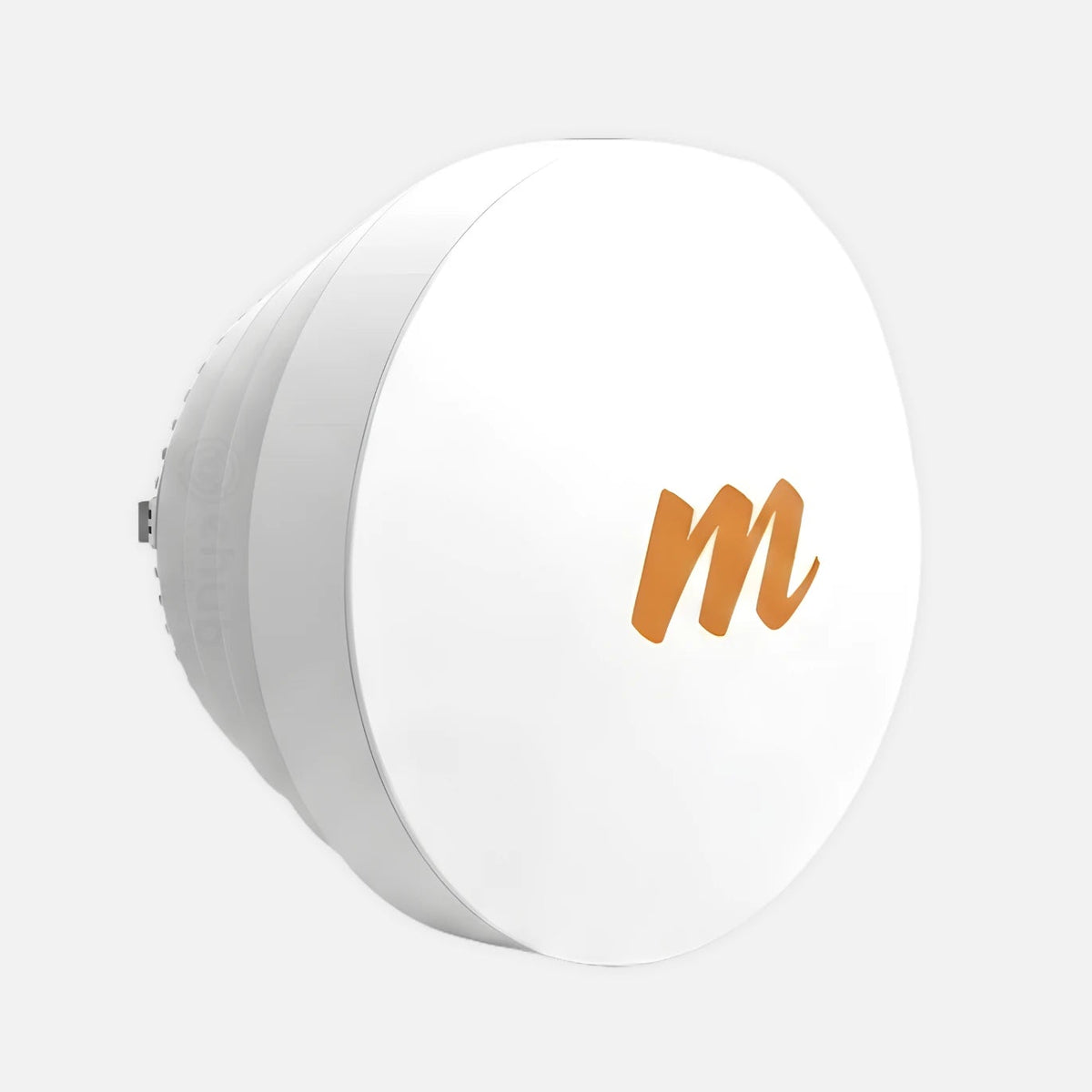

Mimosa N5-X16 Networks 4.9-6.4GHz 150mm Horn Antenna for C5x 100-00087

The Mimosa N5-X16 (Part Number 100-00087) is a 16 dBi horn antenna engineered for broadband fixed wireless deployments across the 4.9–6.4 GHz spectrum. Its compact 150 mm horn form factor delivers exceptional spatial isolation, with a 50 dB front-to-back ratio and a 43 dB front-to-side ratio that translate directly into reduced interference ingestion and cleaner link budgets in dense RF environments. Weighing just 0.61 kg and built to ultra-rugged construction standards, the N5-X16 is well suited for demanding outdoor point-to-point and point-to-multipoint installations where noise immunity, mechanical durability, and spectral efficiency are critical operational requirements. Compliance with FCC Part 15.405, Part 90Y, CE/ETSI, and RoHS ensures the antenna meets regulatory obligations across multiple markets.

Key features & benefits

• 16 dBi Gain Across 4.9–6.4 GHz — A wide operating band spanning licensed and unlicensed spectrum from 4.9 GHz to 6.4 GHz gives network planners flexibility to address regulatory requirements and frequency coordination challenges without changing hardware.
• 50 dB Front-to-Back Ratio — An industry-leading 50 dB front-to-back ratio dramatically suppresses interference arriving from behind the antenna, protecting link quality in co-located or interference-rich deployments.
• 43 dB Front-to-Side Ratio — Strong side-lobe rejection of 43 dB minimizes susceptibility to cross-sector and adjacent-sector interference, enabling tighter frequency reuse in point-to-multipoint sector architectures.
• Compact 150 mm Horn Form Factor — The compact horn geometry keeps wind loading and mounting footprint minimal, simplifying installation on towers, rooftops, and street-level infrastructure while maintaining the directivity performance of larger antenna designs.
• Four Twist-On Flexible Antenna Options — Twist-on compatibility provides field configurability, allowing operators to adapt the antenna to evolving deployment requirements without specialized tooling or hardware replacement.
• PTP and PTMP Mode Support — The antenna supports both point-to-point and point-to-multipoint topologies (feature key may be required), giving operators the ability to deploy a single hardware platform across diverse network architectures.
• Ultra-Rugged Construction — Built for sustained outdoor exposure, the N5-X16 is designed to maintain mechanical and electrical integrity under the environmental stresses typical of tower-mounted and rooftop fixed wireless installations.
• Broad Regulatory Compliance — Certified to FCC Part 15.405, FCC Part 90Y, FCC Part 15 Class B, CE/ETSI, EN 55022 Class B, IEC 61000, UL/IEC 60950-2, IEC/EN 60950-1, WEEE, and RoHS, the N5-X16 is cleared for deployment across a wide range of commercial, public-safety, and institutional applications in both US and international markets.
