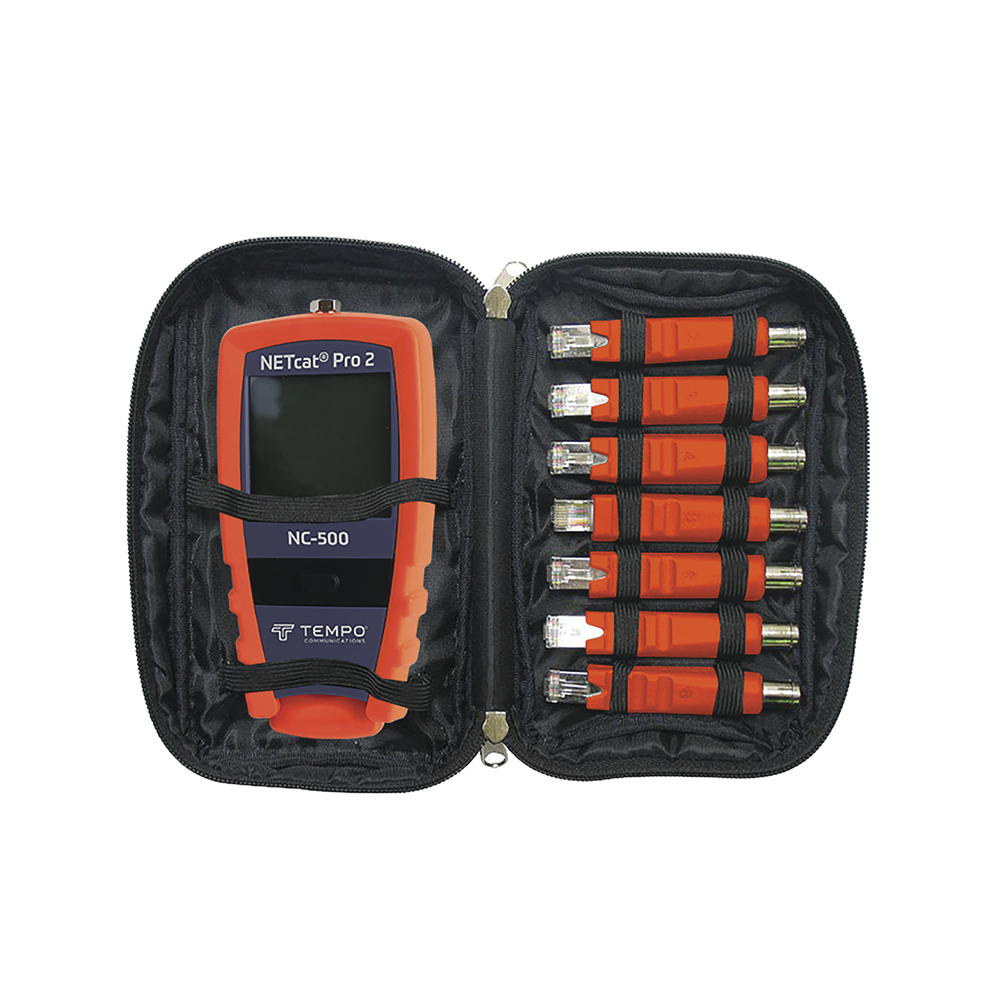

Tempo NC-520 NETcat® Pro Kit with Accessories

The NC-520 from Tempo is the complete NETcat Pro 2 kit that includes everything an IT technician should need to check LAN cables from source to destination: the main NETcat Pro unit plus the accessory set with an additional seven ID units and a carry case for everything with space to spare. The NC520 NETcat® Pro 2 kit includes:

• The Netcat Pro 2 main unit with stylus
• Removable remote jack and patch lead test and Id unit
• Twisted pair (modular RJ45 coax(F) and alligator clip test cords
• Seven additional remote jack test and ID units, RJ45 and F (male)
• Carrying case to hold additional remote test ID units and content of NC-500 main kit

Specifications:

• Application: Test and Troubleshoot Telephone, Data and Coax Wiring
• Backlight: White LED
• Battery: 9 V Alkaline Battery (PP3) (Not Included)
• Buttons: LCD Touch-Screen, Single Momentary Contact Push Button
• Display: 128 x 128 pixel LCD, 3" 78mm diagonal
• Interface Connections: RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors
• Remote Identifier: 2,000 ft. (609.6 meters) maximum distance
• Resolution: 1 ft, 0.1 m
• TDR Calibration:
  • User Selectable Based On A Known Cable Length
  • 40 PCT To 100 PCT In StepsOf 1 PCT
• TDR Range: 0 - 2000 ft (600 m)
• Weight: 0.45 lb. (200 g)
• Wiremap: 358 ft. (100 meters) maximum distance
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Accuracy: ±2% (to open) ±4% (to short or ID unit) or 2 ft (0.6 m) whichever is greater.
• Dimensions: 3.3” x 1.4” x 6.7” (8.5 cm x 3.5 cm x 17 cm)
• Carry Case: Tough polyester outer, fine lining with elastic retaining loops, pocket for manual. 9" x 5.5" x 2.5" (23 x 14 x 6 cm)

Key Features

• Verifies STP, UTP, and Coaxial Cable Wiring Continuity
• Office Identification With Multiple Remote Identification Units
• Detects Shorts, Open Pairs, Reversed and Crossed Wires
• LCD Touchscreen Display With LED Backlight for Clear Visibility
• Tests Up to 8 Network Cables Simultaneously for Efficiency
• TDR Technology Measures Cable Length up to 2000 Feet
