PRODUCT SPECIFICATIONS

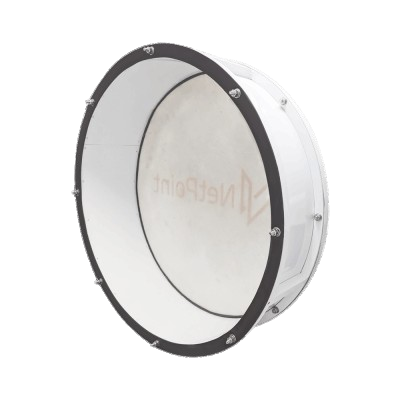

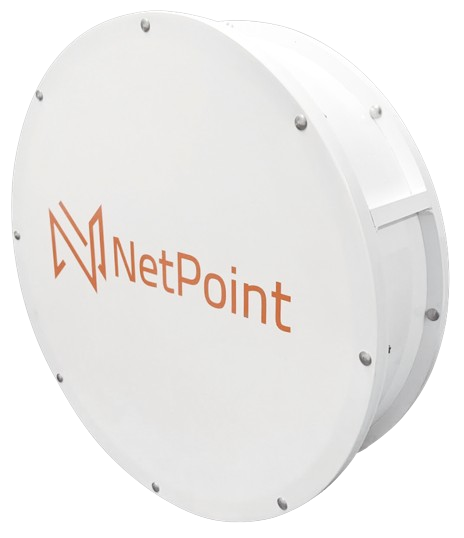

AR2NP2 - 3-Foot Replacement radome for NP5 antenna
The AR2NP2 is a high-performance protective radome designed to enhance the functionality and durability of NP5 antennas. The radome not only boosts antenna performance by increasing gain in the direction of the main lobe by 1 to 2 dB, but also minimizes interference from side and rear lobes, thereby improving the front-to-back ratio. This product is ideal for enhancing signal quality in challenging environments.
Features:
- Increased Gain: Improves gain by 1-2 dB in the main lobe direction.
- Interference Reduction: Decreases interference in side and rear lobes for better signal clarity.
- Weather Protection: Shields the antenna from adverse weather conditions such as rain, hail, and wind, preventing ice accumulation on the feeder.
- Durable Construction: Made from high-quality materials designed to withstand harsh environments.
Technical Description
- Diameter: 3.28 ft (100 cm)
- Width: 0.75 ft (23 cm)
- Compatibility: NP5
- Protector Material: Aluminum
- Radome Material: Polystyrene
More Information
MFRPartNum:
AR2NP2
