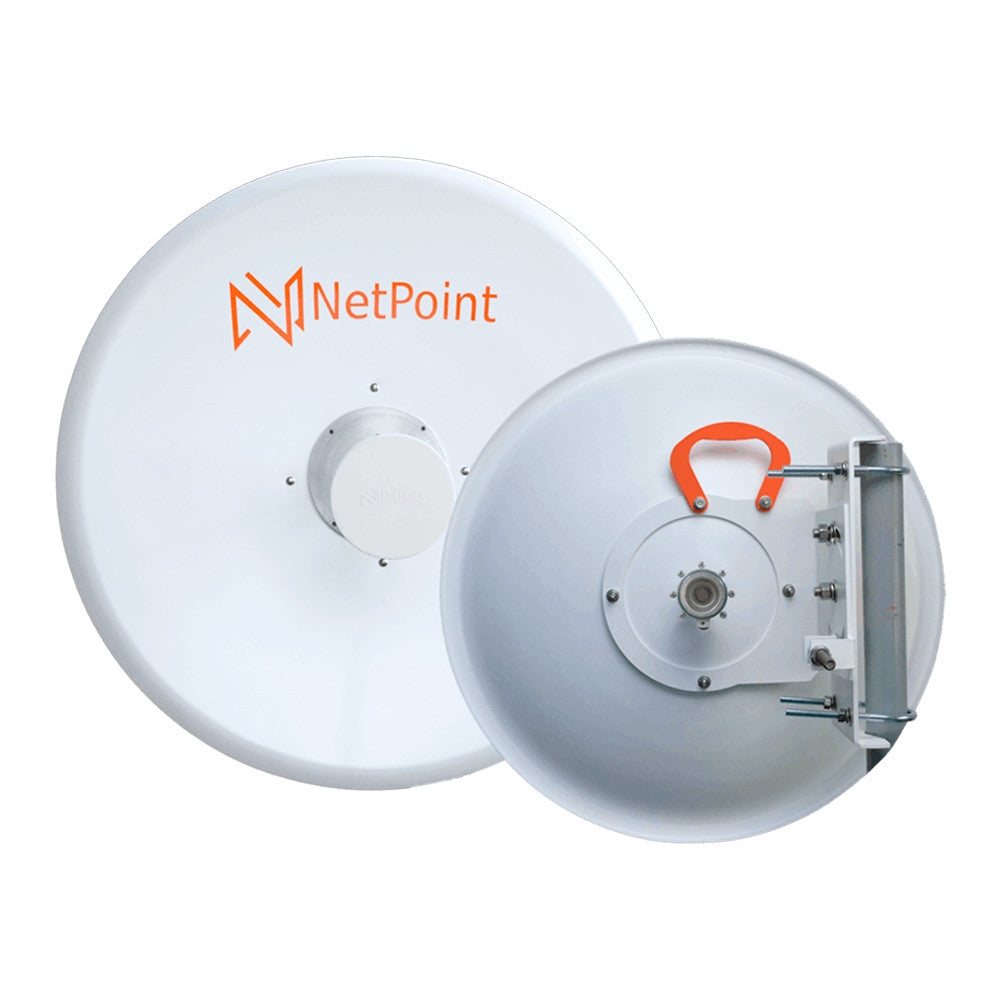

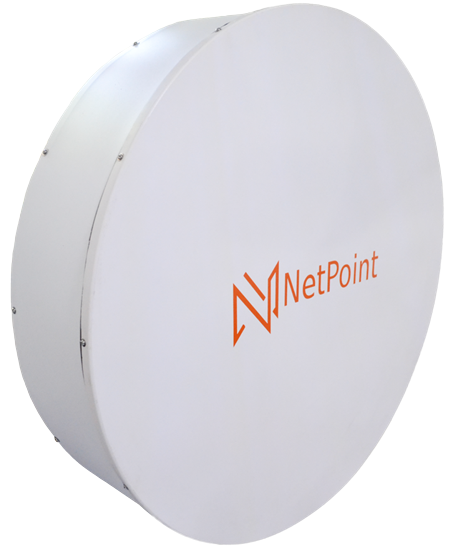

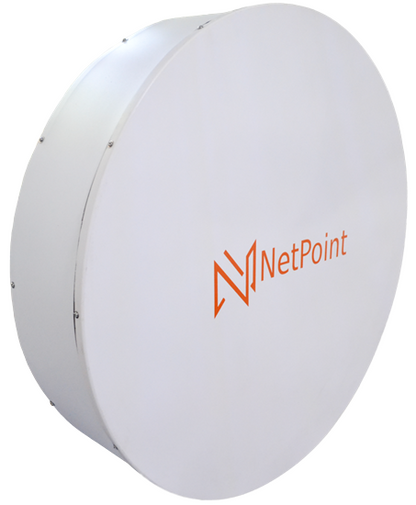

NetPoint NPPRO-S36 Modular Twist-on 4.9-6.4GHz 36dBi Dish Antenna

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
NetPoint NPPRO-S36 Modular Twist-on 4.9-6.4GHz 36dBi Dish Antenna

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
NetPoint's NPPRO5-S twist-on super high-performance dish antenna is designed to work with very high performance in unlicensed bands with excellent gain . The NPPRO5-S model twist-on compatibility with B5x and C5X, as well as exceptional VSRW performance in the 4.9 to 6.4 GHz operating band. The antenna comes pre-assembled and ready to install , as does an integrated radome for high performance and reliable operation in the most demanding conditions . This 4-foot parabolic antenna can be used for PTP backhaul, CPE and public safety applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Gain of up to 40 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
• One antenna that covers 5 and 6 Ghz
• Simplifies installation on site and guarantees “factory-tested” quality
• Connector type Twist-on
• 52.75 x 52.75 x 15.35in (134 X 134 X 39cm)
• 57.32lb (26kg)
• Eletric Specifications Antenna type: Modular dish twist - on
• Frequency: 4.9 - 6.4 Ghz
• Connector type: Twist-on
• Gain (dBi): 234, 35, 36 - 4.9GHz, 5.4GHz and 5.7GHz
• VSWR HPOL: <2.0
• Beamwidth VPOL: 2.6°
• Beamwidth HPOL: 2.8°
• Radius F/B (dB): >30
• Polarization: Dual slant 45°
• Impedance (Ohms): 50
• Mechanical Specifications Wind max survival speed (MPH): 74.56 miles
• 120km with Radome

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: NetPoint
• Model: NP-PRO-S36
• Product Type: Antennas (Networking)
• Gain of up to 40 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
• One antenna that covers 5 and 6 Ghz
• Simplifies installation on site and guarantees “factory-tested” quality
• Connector type Twist-on
• 52.75 x 52.75 x 15.35in (134 X 134 X 39cm)
• 57.32lb (26kg)
• Eletric Specifications Antenna type: Modular dish twist - on
• Frequency: 4.9 - 6.4 Ghz
• Connector type: Twist-on
• Gain (dBi): 234, 35, 36 - 4.9GHz, 5.4GHz and 5.7GHz
• VSWR HPOL: <2.0
• Beamwidth VPOL: 2.6°
• Beamwidth HPOL: 2.8°
• Radius F/B (dB): >30
• Polarization: Dual slant 45°
• Impedance (Ohms): 50
• Mechanical Specifications Wind max survival speed (MPH): 74.56 miles
• 120km with Radome
• Azimuth adjustment: +/- 60 degrees
• Elevation adjustment (°): +/- 20 degrees
• Mounting Pipe Diameter, Min: 1 inch - 25.4mm
• Mounting Pipe Diameter, Max: 2.750 inch 69.86mm
• Operating temperature (C°): -49 to +140 F° | -45 to +60 C°

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
