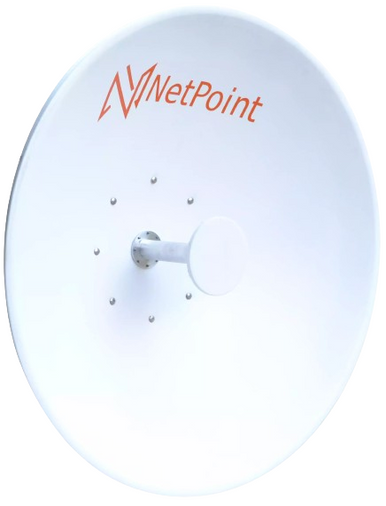

Netpoint NP62 2Ft Parabolic Antenna DP 5.9-7.2 GHz 30.2 dBi Pigtail N-F to SMA

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Netpoint NP62 2Ft Parabolic Antenna DP 5.9-7.2 GHz 30.2 dBi Pigtail N-F to SMA

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
NetPoint's NP62-DP-2FT is a super high-performance dish antenna engineered for optimal performance in both licensed and unlicensed bands, delivering exceptional gain. This model features dual polarization, an N-female connector, and outstanding VSWR performance within the 5.9 to 7.2 GHz operating band. The NP62-DP-2FT antenna is pre-assembled and ready to install, featuring an integrated radome for reliable operation under the most demanding conditions. This 2-foot parabolic antenna is ideal for PTP backhaul, CPE, and public safety applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• High Gain: Offers up to 30 dBi gain with low VSWR and high port isolation across the entire 5.9 - 7.2 GHz band.
• Wide Frequency Coverage: Covers both 6 GHz and 7 GHz bands.
• Interference Reduction: Achieves a minimum front-to-back ratio of >39 dB, minimizing interference.
• Easy Installation: Pre-assembled and factory-tested to ensure quality and simplify on-site installation.
• Durable Connector: Equipped with a female N-type connector.
• PTP Backhaul: Ideal for point-to-point backhaul applications.
• CPE: Suitable for customer premises equipment installations.
• Public Safety: Reliable for public safety communication networks.
• ELECTRIC SPECIFICATIONS Antenna type: Directional parabolic reflector
• Frequency: 5.9 - 7.2 GHz
• Connector type: Female N
• Gain (dBi): 28, 29, 30
• 5.9GHz, 6.8GHz and 7.2GHz
• VSWR HPOL: <2.0
• Beamwidth VPOL: 4.2°
• Beamwidth HPOL: 4.0°
• Impedance (Ohms): 50
• Radius F/B (dB): > 39

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: NetPoint
• Model: NP62
• Product Type: Antennas (Networking)
• High Gain: Offers up to 30 dBi gain with low VSWR and high port isolation across the entire 5.9 - 7.2 GHz band.
• Wide Frequency Coverage: Covers both 6 GHz and 7 GHz bands.
• Interference Reduction: Achieves a minimum front-to-back ratio of >39 dB, minimizing interference.
• Easy Installation: Pre-assembled and factory-tested to ensure quality and simplify on-site installation.
• Durable Connector: Equipped with a female N-type connector.
• PTP Backhaul: Ideal for point-to-point backhaul applications.
• CPE: Suitable for customer premises equipment installations.
• Public Safety: Reliable for public safety communication networks.
• ELECTRIC SPECIFICATIONS Antenna type: Directional parabolic reflector
• Frequency: 5.9 - 7.2 GHz
• Connector type: Female N
• Gain (dBi): 28, 29, 30
• 5.9GHz, 6.8GHz and 7.2GHz
• VSWR HPOL: <2.0
• Beamwidth VPOL: 4.2°
• Beamwidth HPOL: 4.0°
• Impedance (Ohms): 50
• Radius F/B (dB): > 39
• Polarization: Dual slant 45° or 90°
• MECHANICAL SPECIFICATIONS Wind max survival speed (MPH): 124.2 miles with Radome.
• Azimuth adjustment: +/- 60 degrees
• Elevation adjustment (°): +/- 15 degrees
• Mounting Pipe Diameter, Min: 1 inch - 25.4mm
• Mounting Pipe Diameter, Max: 2.95 inches 75.00mm
• Operating temperature (C°): - 49 to +140 F° | -45 to +60 C°
• Connector type: Dual N-Female with pigtails for RP-SMA
• Length of pigtail: 2ft - 600 mm

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
