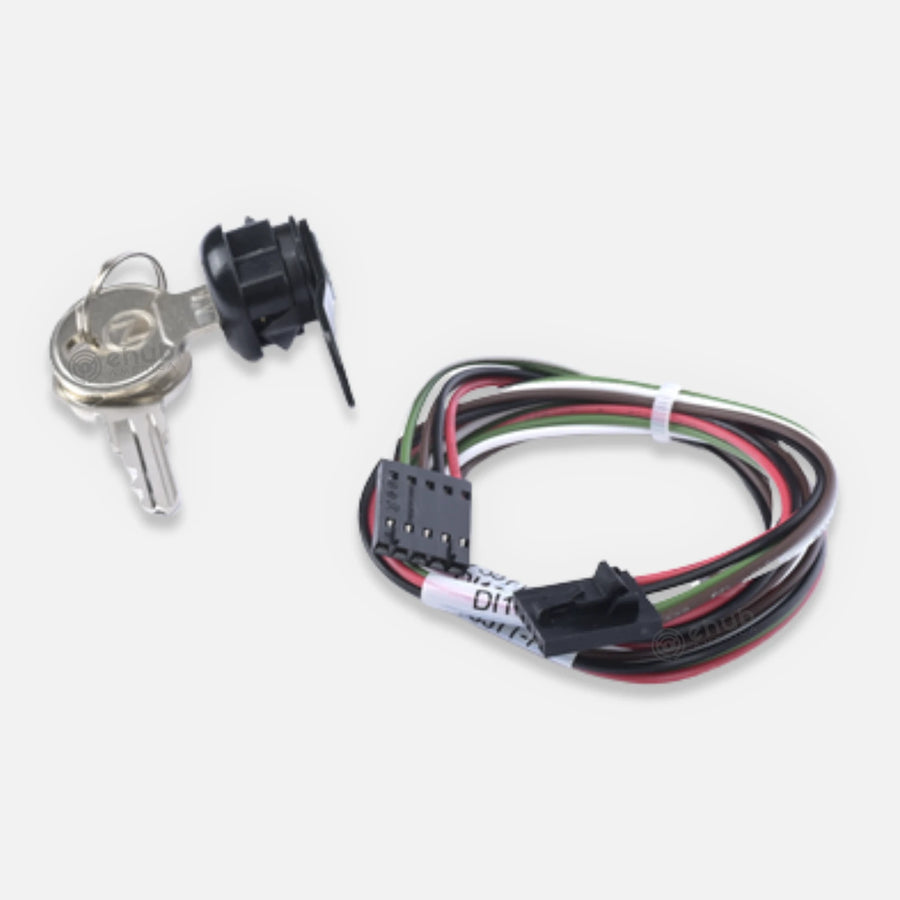

Notifier 50160636-001 CLSS Gateway Kit with 30 in NUP Cable and Lock and Key Set

Part number / SKU
50160636-001
  • CLSS Gateway Kit
  • 18 to 30 VDC
  • UL, CSFM, FDNY

Works with: HON-CGW-MBB CLSS Gateway, CCM-ATT-HON cellular module (AT&T), CCM-VZ-HON cellular module (Verizon), 32351718-001 10 ft NUP cable, Compatible Honeywell fire alarm control panels and panel networks Confirmed by the manufacturer


$58.67

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The 50160636-001 is the CLSS Gateway Kit for the Honeywell Connected Life Safety Services (CLSS) Gateway, HON-CGW-MBB. Honeywell lists the kit as including a 30 in NUP cable and a Notifier lock and key set. The gateway connects compatible Honeywell fire alarm control panels, or panel networks, to the CLSS Cloud over a wireless or wired connection.

The gateway runs on 18 to 30 VDC with a typical current of 0.140 A, including the cellular module. It is configured from a mobile device over Bluetooth with the CLSS Gateway app for iOS or Android. The enclosure is black flame-retardant ABS, measures 10.25 x 8.023 x 2.788 in and weighs 1.9 lb, and the unit can be used as a portable tool or a permanent installation.

Optional CCM-ATT-HON (AT&T) and CCM-VZ-HON (Verizon) cellular modules add cellular connectivity for fixed-location applications. A 10 ft NUP cable is available separately as 32351718-001.

  • Best for: connecting a compatible Honeywell fire alarm panel or panel network to the CLSS Cloud for remote access to system data.
  • System fit: compatible Honeywell fire alarm control panels, standalone or networked, including panels with digital voice control.
  • Important to know: CLSS subscriptions, licenses and feature activations are handled separately through Honeywell; installation should be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Cloud connection

    links panels or panel networks to the CLSS Cloud over wired or wireless connection.

  • Phone setup

    configured over Bluetooth with the CLSS Gateway app for iOS or Android.

  • Low power draw

    0.140 A typical at 18 to 30 VDC, including the cellular module.

  • Listed gateway

    UL File S35608, CSFM 7300-1637:0504 and FDNY COA 2021-TMCOAP-006279-AMND.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU50160636-001
General
Brand Honeywell (Notifier)
Model 50160636-001
Device Type CLSS Gateway Kit
Kit Contents 30 in NUP cable; Notifier lock and key set (per ordering information)
Gateway Model HON-CGW-MBB
Panel Connection Standalone panel, networked panel, or standalone with digital voice control
Cloud Connection Wireless or wired to CLSS Cloud
Configuration Bluetooth pairing with CLSS Gateway app (iOS, Android)
Cellular Option CCM-ATT-HON or CCM-VZ-HON (fixed-location applications)
Electrical
Operating Voltage 18 to 30 VDC
Rated Current 0.140 A typical (includes cellular module)
Transmitter Battery Voltage 3.6 V
Wireless
Wi-Fi 2.4 GHz TX Power 802.11b 17.5 dBm; 802.11g/n 15 dBm; 802.11ac 14 dBm (each +/-2.0 dB)
Wi-Fi 5 GHz TX Power 802.11a/n 15 dBm (+/-2.0 dB)
FCC ID PV3CGWMB
IC 1609A-CGWMB
Physical
Enclosure Black, flame-retardant ABS
Dimensions 10.25 in H x 8.023 in W x 2.788 in D (26 x 20.37 x 7 cm)
Weight 1.9 lb (861.8 g) gateway with enclosure
IP Rating IP30 (cable glands required)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Storage Temperature 14 to 140 F (-10 to 60 C)
Operating Humidity 1% to 93% RH, non-condensing
Listings and Approvals
Agency Approvals UL, CSFM, FDNY
Approval Details UL File S35608; CSFM 7300-1637:0504; FDNY COA 2021-TMCOAP-006279-AMND
