Notifier · Fire Alarm

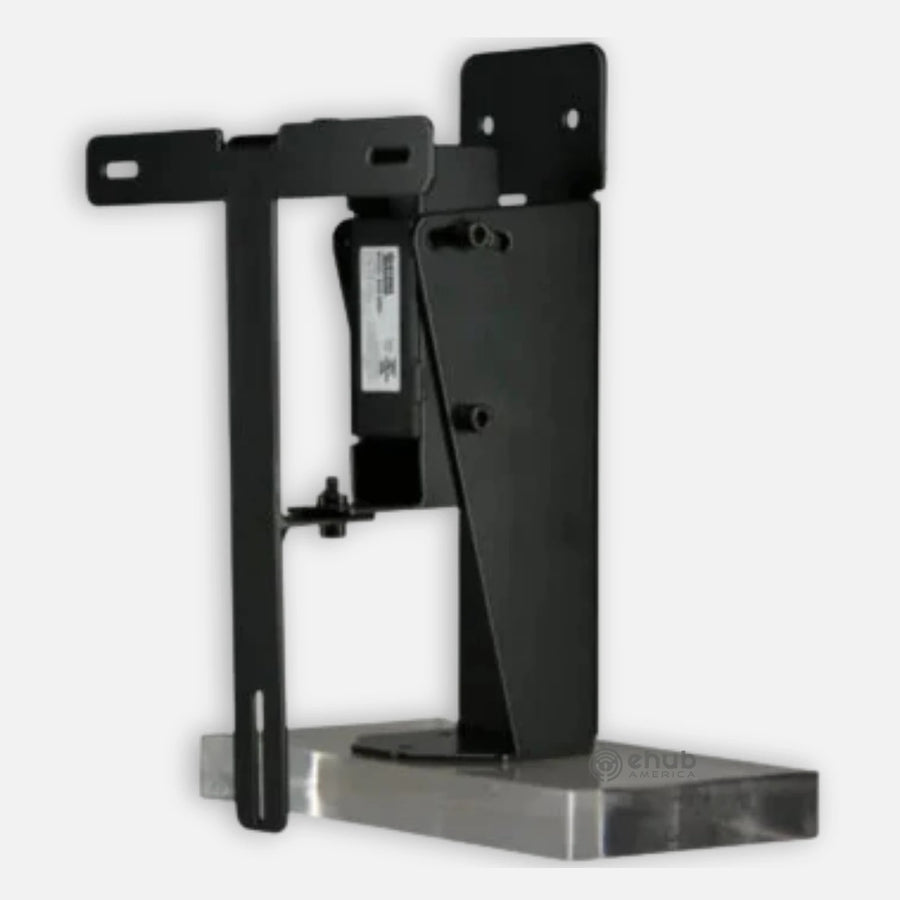

Notifier 6500-MMK Heavy Duty Multi-Mount Kit for Beam Smoke Detectors

Part number / SKU
6500-MMK
  • Multi-mounting kit
  • Wall or ceiling

Works with: BEAM200 beam detector, BEAM200S beam detector, BEAM1224 beam detector, BEAM1224S beam detector, FSB-200 beam detector, FSB-200S beam detector and 3 more models Confirmed by the manufacturer


$172.88

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The 6500-MMK is a multi-mounting kit for reflected beam smoke detectors. It lets the transmitter/receiver or the reflector mount to a wall or ceiling and adds alignment range where the detector and reflector cannot be aligned within 10 degrees of each other.

The kit includes a wall/ceiling fixed bracket, a T-bracket and the M6 and M4 hardware to join them. Mounting a transmitter/receiver on the kit also requires the 6500-SMK surface mount kit, and if both the transmitter/receiver and the reflector need extra range, two kits are needed. The kit is not compatible with the long-range reflector kit.

  • Best for: beam detector installations where the detector and reflector cannot be aligned within 10 degrees of each other.
  • System fit: BEAM200, BEAM200S, BEAM1224, BEAM1224S, FSB-200, FSB-200S, BEAM355 and BEAM355S beam detectors.
  • Important to know: mount only on solid building structure, not flexible walls such as sheet metal; installation must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Wider alignment range

    adds adjustment where the units cannot be aligned within 10 degrees.

  • Wall or ceiling mounting

    one kit mounts a beam detector or reflector on either surface.

  • Complete hardware

    fixed bracket, T-bracket, bolts, screws, nuts and washers are included.

  • Fits several beam models

    made for the BEAM200, BEAM1224, FSB-200 and BEAM355 families.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU6500-MMK
General
Brand System Sensor (sold under Notifier)
Model 6500-MMK
Device Type Multi-mounting kit
Device Type Detail For beam smoke detectors
Mount Type Wall or ceiling
Alignment Use Where detector and reflector cannot be aligned within 10 degrees
Required With Transmitter/Receiver 6500-SMK surface mount kit
Not Compatible With Long-range reflector kit
Mounting Surface Solid building structure only; not flexible walls such as sheet metal
Conduit Entry Up to 20 mm (drilled in 6500-SMK surface box)
Physical
Included Brackets 1 wall/ceiling fixed bracket; 1 T-bracket
Included Bolts 2 M6 x 15 mm hex allen head bolts with 2 M6 split lock washers
Included Screws 3 M4 x 16 mm pan head screws
Included Nuts and Washers 3 M4 hex nuts; 6 M4 washers; 3 M4 split lock washers
