Notifier · Fire Alarm

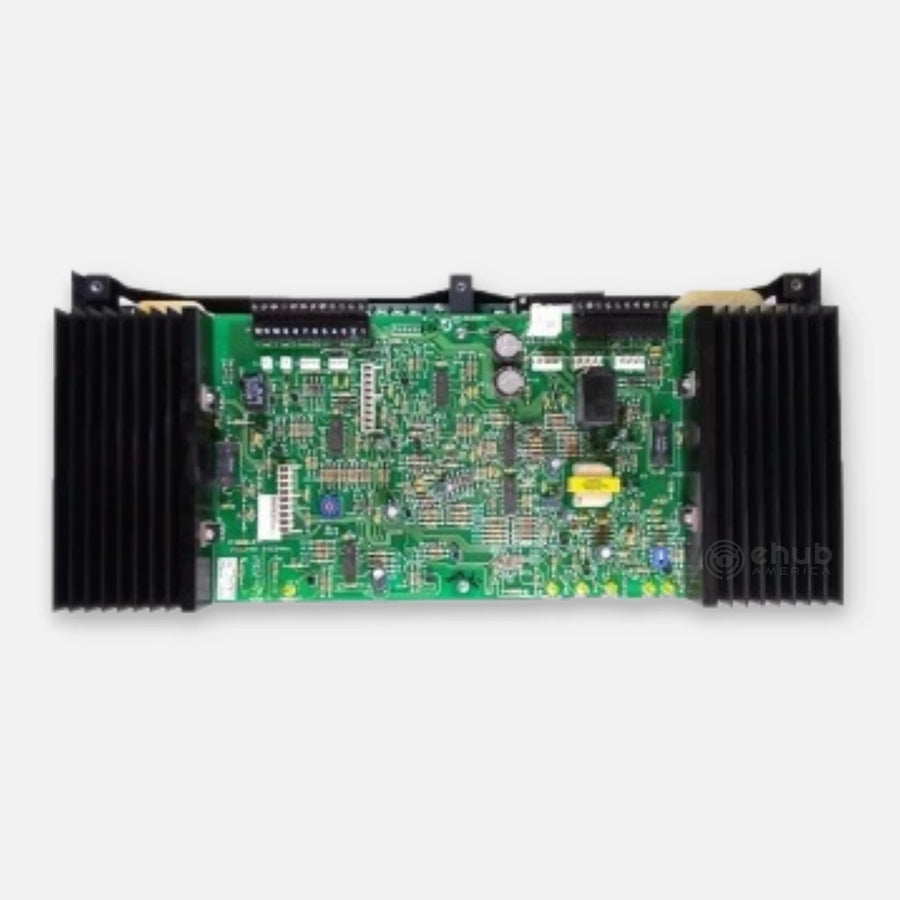

Notifier AA-100 100 W Audio Amplifier, 70.7 Vrms Output

Part number / SKU
AA-100
  • Audio amplifier
  • Integral chassis
  • UL, ULC, MEA, CSFM, FM

Works with: AMG-1 audio message generator, DVC Digital Voice Command with DVC-AO, CAB-3 Series cabinets, CAB-4 Series cabinets, EQ Series cabinets, 19 in racks and 1 more model Confirmed by the manufacturer


$1,620.59

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier AA-100 is a 100 W audio amplifier from the AA Series, providing high-level audio for Notifier voice evacuation systems. It drives 70.7 Vrms speaker circuits with dual outputs, with combined output not to exceed 100 W, and works with classic audio systems such as the AMG-1 or with DVC systems through the DVC-AO analog audio option.

Each amplifier includes its own power supply, battery switch-over with brownout switch-over, amplifier supervision and backup amplifier switch-over on a grouped or one-to-one switching bus. A low-power standby mode reduces battery drain, and a built-in backup tone generator provides slow whoop or high/low tones. The amplifier mounts on its integral chassis in CAB-3/CAB-4 Series or EQ Series cabinets, or in 19 in racks.

  • Best for: adding 70.7 Vrms speaker circuit power to Notifier voice evacuation systems using AMG-1 or DVC with DVC-AO.
  • System fit: Notifier AMG-1 classic audio, DVC Digital Voice Command with DVC-AO; mounts in CAB-3/CAB-4 Series or EQ Series cabinets.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • 100 W at 70.7 Vrms

    dual outputs with combined output up to 100 W.

  • Built-in backup

    backup amplifier switch-over and an automatic backup tone generator.

  • Battery friendly

    low-power standby mode and battery switch-over with brownout detection.

  • Widely listed

    UL S624, ULC, MEA, CSFM and FM Approved.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUAA-100
General
Brand Notifier
Series AA Series
Model AA-100
Device Type Audio amplifier
Output Power 100 W total (dual outputs, combined not to exceed 100 W)
Output Voltage 70.7 Vrms
Audio Source AMG-1 classic audio; DVC with DVC-AO analog audio option
Backup Tone Generator Built-in, slow whoop or high/low
Level Adjustment 10 positions with indicator LEDs
Backup Amplifier Switch-over via grouped or one-to-one switching bus
Supervision Amplifier supervision
240 VAC Version AA-100E
Electrical
Power Supply Integral, switched-mode regulation
Battery Battery input with switch-over and brownout switch-over
Standby Mode Low-power standby for reduced battery drain
Power Limited Designed to UL and NFPA requirements per NEC Article 760
Physical
Mount Type Integral chassis
Mount Type Detail For CAB-3/CAB-4 Series or EQ Series cabinets, 19 in (48.26 cm) racks; standard Notifier wall-mount cabinets
Connections Plug-in terminal strips and cable connectors
Listings and Approvals
Agency Approvals UL, ULC, MEA, CSFM, FM
Approval Details UL S624; ULC CS118/CS733/CBP696 Vol. VII; MEA 17-96-E, 317-01-E, 232-06-E, 345-02-E; CSFM 7170-0028:153, 7170-0028:154, 7170-0028:216, 7170-0028:223, 7170-0028:182; FM Approved
