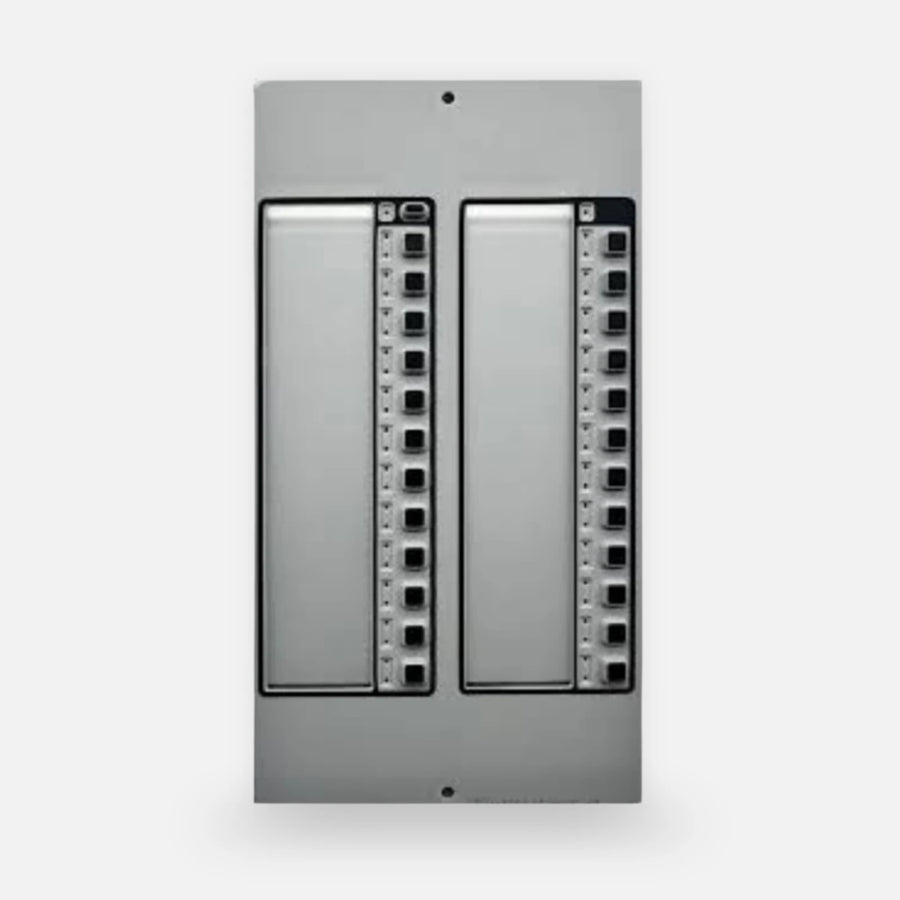

Notifier ACM-24AT ONYX Series ACS Annunciator Control Module, 24 Points

Part number / SKU
ACM-24AT
  • Annunciator control module
  • ABS/ABF boxes
  • 24 VDC
  • UL, ULC, FDNY, CSFM, FM

Works with: NFS2-640, NFS2-3030, NFS-320(C), NFS-320SYS, XPIQ (speaker control mode), NCA-2 network control annunciator and 10 more models Confirmed by the manufacturer


$694.99

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier ACM-24AT is an ACS Series annunciator control module for ONYX Series intelligent fire alarm control panels, network control annunciators and legacy addressable panels. It provides 24 annunciation and control points, each with a color-programmable red, green or yellow Active LED, a yellow Trouble LED and a momentary touch-pad switch.

The module also has a System Trouble LED, an On-Line/Power LED and a piezo sounder with a silence/acknowledge switch, and the keypad controls Signal Silence, System Reset, Local Acknowledge and Lamp Test. It runs on 24 VDC from the panel or a remote power supply and connects on an EIA-485 four-wire loop up to 6,000 ft from the panel. The module measures 8.375 in H x 4.375 in W.

Up to three AEM-24AT expanders can be added for a maximum of 96 points per annunciator, and the ACS Series supports up to 32 annunciators, subject to the panel. Mounting options include ABS and ABF boxes, the ADP-4B dress panel in CAB-4 Series cabinets and the AKS-1B key switch with the ABS-1TB box.

  • Best for: remote status annunciation and control switches for ONYX Series fire alarm panels and network annunciators.
  • System fit: ONYX Series panels (NFS2-640, NFS2-3030, NFS-320), NCA-2 and legacy addressable panels; AEM-24AT expanders.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • 24 control points

    each with a color-programmable Active LED, a Trouble LED and a touch-pad switch.

  • Expandable

    up to three AEM-24AT expanders for 96 points per annunciator.

  • Long wiring runs

    EIA-485 connection up to 6,000 ft from the panel.

  • Listed annunciator

    UL S635, ULC S635, FDNY, CSFM and FM Approved.

Specifications

Technical specifications

Product identifiers
SKUACM-24AT
General
Brand Notifier
Series ACS Series for ONYX Series
Model ACM-24AT
Device Type Annunciator control module
Points 24 annunciation and control points
Indicators per Point Red/green/yellow programmable Active LED; yellow Trouble LED
Switches 24 momentary touch-pad switches
System Indicators System Trouble LED; On-Line/Power LED
Local Sounder Piezo with silence/acknowledge switch
Keypad Functions Signal Silence, System Reset, Local Acknowledge, Lamp Test
Expansion Up to 3 AEM-24AT (96 points max)
System Capacity Up to 32 annunciators, 3,072 points (subject to panel)
Terminals Plug-in, removable compression type
End-of-Line Resistors On-board, switch enabled
Electrical
Operating Voltage 24 VDC
Operating Voltage Detail From panel or remote power supply
Communication EIA-485, four wires (twisted pair data plus 24 VDC power)
Distance from Panel Up to 6,000 ft (1,828.8 m)
Physical
Dimensions 8.375 in H x 4.375 in W
Mount Type ABS/ABF boxes
Mount Type Detail ADP-4B dress panel in CAB-4 Series cabinets
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Operating Humidity 85% non-condensing at 86 F (30 C) per NFPA; 93% +/-2% at 90 F (32 C) per ULC
Listings and Approvals
Agency Approvals UL, ULC, FDNY, CSFM, FM
Approval Details UL S635; ULC S635; FDNY COA 6067 (NFS2-640), COA 6065 (NFS2-3030); CSFM 7120-0028:0156, 7165-0028:0243, 7165-0028:0224; FM Approved
