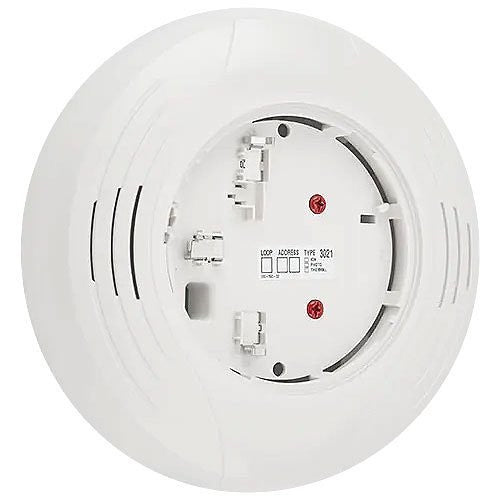

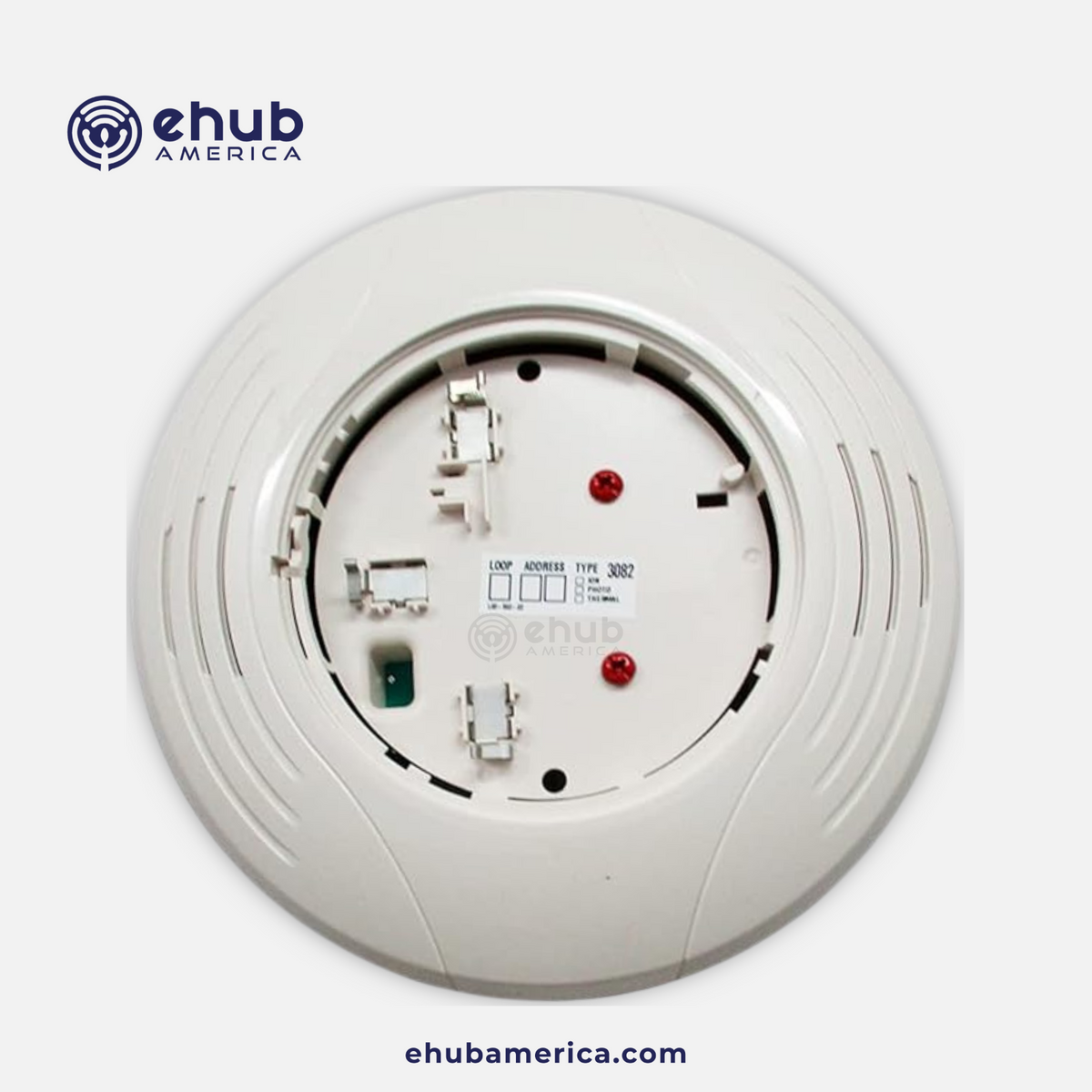

Notifier B224BI-WH Intelligent Isolator Base White

The Notifier B224BI-WH is an intelligent isolator base manufactured by System Sensor (a Honeywell Building Technologies company) for use in intelligent, addressable fire alarm systems. Its primary function is to protect Signaling Line Circuit (SLC) loops from being fully disabled by a short-circuit fault: when a short occurs, the base automatically isolates the faulted loop segment from the remainder of the circuit, keeping all devices outside that segment fully operational. Once the short-circuit condition is cleared, the base automatically restores the full loop without any manual intervention. Up to 25 addressable devices may be protected between any two isolator bases, enabling granular loop-segment protection across large addressable installations. The base supports compatible System Sensor and Notifier detector heads and features a white housing to blend with standard ceiling finishes. Its SEMS screw terminals accept wire gauges from 12 to 24 AWG, streamlining installation across a wide range of conductor sizes.

Key features & benefits

• Automatic Short-Circuit Isolation — Detects and isolates the faulted SLC loop segment the moment a short circuit occurs, preventing the fault from propagating and disabling the entire loop.
• Automatic Loop Restoration — Once the cause of the short circuit is corrected, the base automatically reconnects the isolated segment, restoring full loop communication without technician intervention.
• Up to 25 Devices Per Protected Segment — Generally, up to 25 addressable devices may be protected between any two isolator bases, enabling precise, zone-level fault containment on large SLC loops.
• Broad Wiring Compatibility (12–24 AWG) — SEMS screw terminals accept conductors from 12 AWG to 24 AWG, accommodating both heavy backbone runs and lightweight branch circuits.
• White Housing Finish — The B224BI-WH variant ships in white to coordinate with standard commercial and institutional ceiling aesthetics; an ivory (B224BI-IV) variant is also available.
• Compatible with Notifier, Fire-Lite, Silent Knight, and Farenhyt Detector Heads — Designed for use across the Honeywell Building Technologies family of intelligent addressable panels and detectors, providing broad cross-platform applicability.
• UL Listed — Listed to UL 268 (Smoke Detectors for Fire Alarm Systems) and UL 464 (Audible Signal Appliances), confirming compliance with applicable fire alarm standards.
