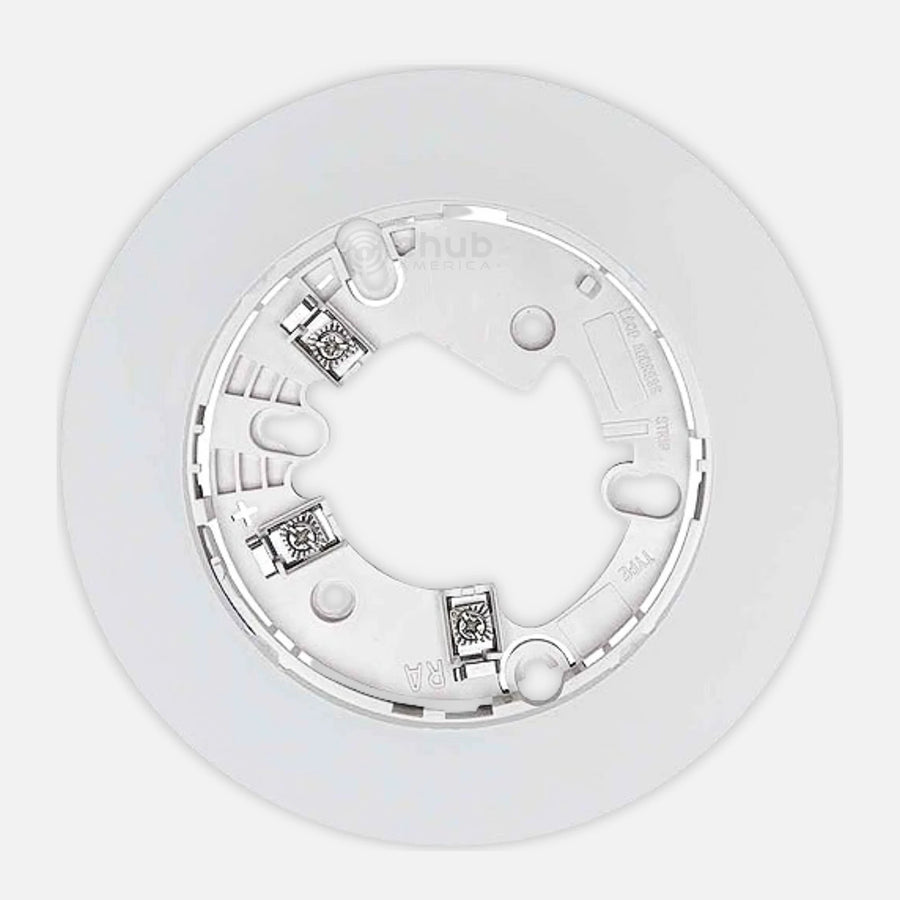

Notifier B300-6-IV 6 in Flanged Intelligent Detector Base, Ivory

Part number / SKU
B300-6-IV
  • 6 in plug-in detector base
  • 4 in square
  • 15 to 32 VDC
  • UL 268

Works with: RA100Z remote annunciator, Compatible intelligent plug-in sensors (System Sensor Base/Sensor Cross Reference Chart), NFS2-640 (B300-6-IV listed option) Confirmed by the manufacturer


$21.36

In stock

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The B300-6-IV is a 6 in flanged plug-in detector base for intelligent addressable smoke and heat sensors. It is the ivory version of the B300-6. It carries power and communication for the detector head over two terminals and has a third terminal for an RA100Z remote annunciator.

The base runs on 15 to 32 VDC with a standby current of 170 uA and measures 6.1 in in diameter and 0.76 in high. It mounts to 4 in square boxes with or without plaster ring, 4 in and 3-1/2 in octagon boxes and single-gang boxes. Signal wiring should be 18 AWG or larger, and wire up to 12 AWG can be used. A breakable tab turns on a tamper-resist feature for the detector head.

  • Best for: mounting compatible intelligent plug-in detector heads on standard electrical boxes in ivory.
  • System fit: compatible intelligent plug-in sensors per the System Sensor base/sensor cross reference; Notifier lists the B300-6-IV with the NFS2-640.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Low standby draw

    170 uA at 15 to 32 VDC.

  • Remote annunciator terminal

    connects an RA100Z between terminals 1 and 3.

  • Wide box fit

    mounts to 4 in square, octagon and single-gang boxes.

  • Tamper resist

    a breakable tab locks the detector head to the base.

Specifications

Technical specifications

Product identifiers
SKUB300-6-IV
General
Brand Notifier (System Sensor)
Model B300-6-IV
Device Type 6 in plug-in detector base
Device Type Detail Intelligent, flanged
Mount Type 4 in square
Mount Type Detail With or without plaster ring; 4 in octagon, 3-1/2 in octagon, single-gang box
Terminals 1 Power (-) and RA (-); 2 Power (+); 3 RA (+)
Communication Over power (+/-) lines
Remote Annunciator RA100Z between terminals 1 and 3
Tamper Resist Breakable tab; lever release for removal
Electrical
Operating Voltage 15 to 32 VDC
Standby Current 170 uA
Wire Gauge 18 AWG minimum signal wiring; up to 12 AWG
Physical
Diameter 6.1 in (155 mm)
Height 0.76 in (19 mm)
Color Ivory
Environmental
Operating Temperature Per installed sensor (Base/Sensor Cross Reference Chart)
Listings and Approvals
Agency Approvals UL 268
