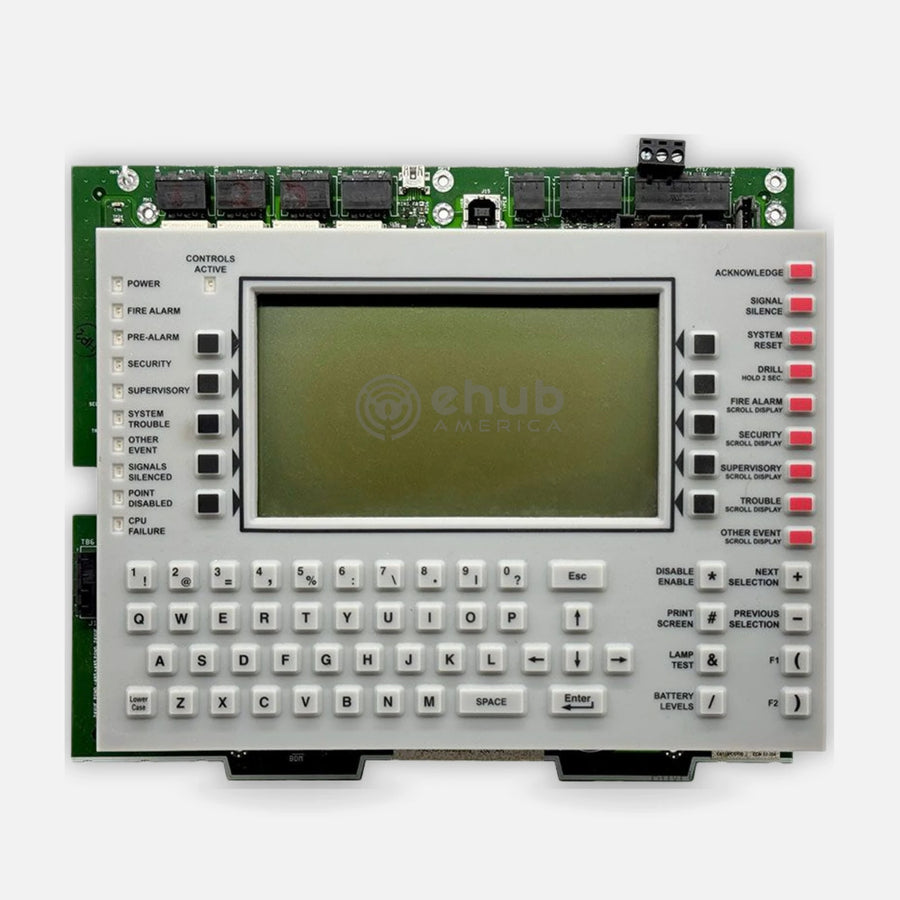

Notifier CPU2-3030D NFS2-3030 CPU with 640-Character Display and Keypad
- Part number / SKU
- CPU2-3030D
- Fire alarm control panel CPU
- Addressable
- CHS-M3 chassis
- UL, ULC, FM, MEA, FDNY, CSFM
Works with: CHS-M3 mounting chassis, DP-DISP dress panel, BMP-1 blank module, AMPS-24 / AMPS-24E power supply, LCM-320 loop control module, LEM-320 loop expander module and 4 more models Confirmed by the manufacturer
In stock
- Warranty
- Manufacturer warranty
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Full local display
backlit 16-line, 640-character LCD with QWERTY keypad installed.
-
Large capacity
up to ten SLCs and 3,180 devices per panel or network node.
-
Deep history
4,000-event history file plus a 1,000-event alarm-only file.
-
Network ready
up to 200 nodes on the high-speed network or 103 on the standard network.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | CPU2-3030D |
| General | |
| Brand | Notifier |
| Model | CPU2-3030D |
| Device Type | Fire alarm control panel CPU |
| Device Type Detail | With primary display |
| Series | ONYX Series NFS2-3030 |
| Addressing | Addressable |
| Display | 640 characters (16 lines x 40 characters), LED backlight; QWERTY keypad |
| SLC Capacity | 1 to 10 isolated SLCs, Style 4, 6 or 7 (LCM-320 / LEM-320) |
| Device Capacity | 159 detectors and 159 modules per SLC; 3,180 per FACP or network node |
| History Buffer | 4,000 events plus 1,000-event alarm-only file |
| Network | High-speed up to 200 nodes; standard up to 103 nodes (54 with DVC-EM paging) |
| Version Without Display | CPU2-3030ND |
| Electrical | |
| Board Current Draw | 0.340 A standby and alarm |
| Power Supply | AMPS-24 (110 to 120 VAC, 50/60 Hz, 4.5 A max) or AMPS-24E (240 VAC, 50/60 Hz, 2.25 A max) |
| DC Outputs | Main 24 VDC up to 5.0 A; Aux 24 VDC up to 5.0 A; 5 VDC up to 0.15 A (AMPS-24) |
| Battery Charger | 7 to 200 AH, float 27.6 V; separate cabinet for batteries over 26 AH |
| Physical | |
| Mount Type | CHS-M3 chassis |
| Mount Type Detail | In a CAB-4 Series enclosure |
| Dress Panel | DP-DISP (top row) |
| Weight | 5.95 lb (2.70 kg) |
| Environmental | |
| Operating Temperature | 32 to 120 F (0 to 49 C) |
| Humidity | 93% +/- 2% RH noncondensing at 32 C +/- 2 C |
| Recommended Room Temperature | 60 to 80 F (15 to 27 C) |
| Listings and Approvals | |
| Agency Approvals | UL, ULC, FM, MEA, FDNY, CSFM |
| Approval Details | UL Listed S635; ULC Listed S635; FM Approved; MEA 232-06-E; FDNY COA#6114; CSFM 7165-0028:0224 |
