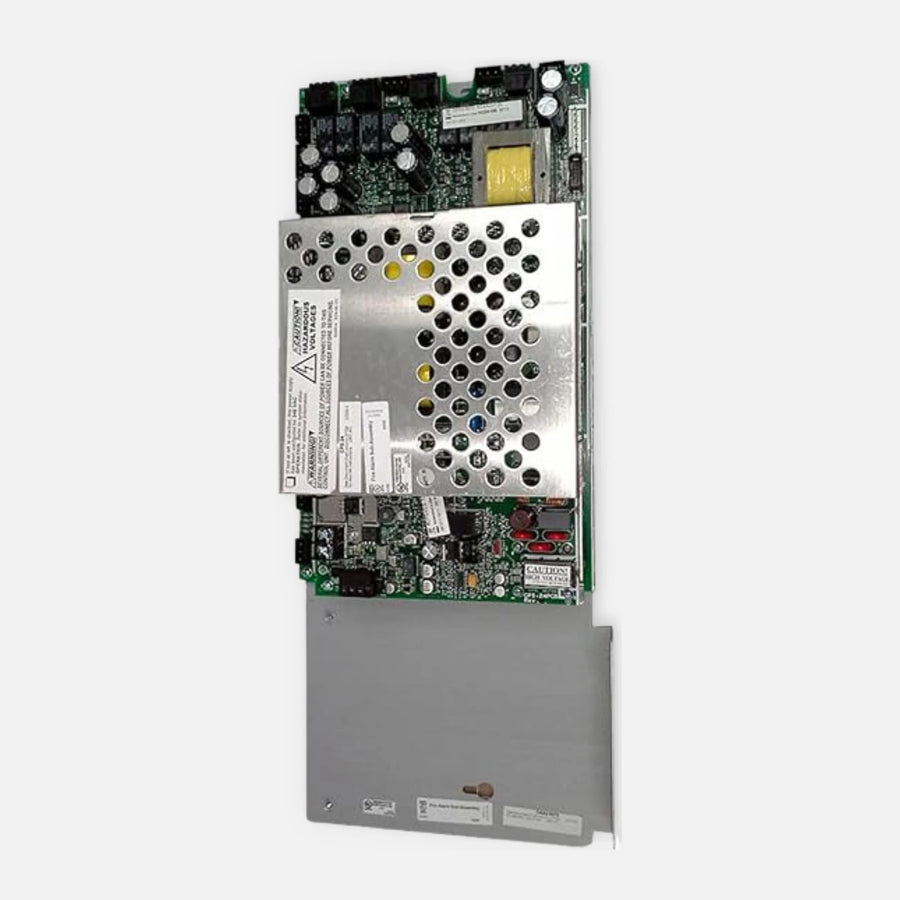

Notifier DAA2-5070 50 W, 70.7 Vrms DVC Digital Audio Amplifier

Part number / SKU
DAA2-5070
  • Digital audio amplifier assembly
  • 120 VAC, 60 Hz
  • UL, ULC, FM, CSFM, FDNY

Works with: DVC-EM Digital Voice Command, BDA backup digital amplifier, DAX Series amplifiers, DAA Series amplifiers, RM-1 remote microphone, CHS-BH1 battery holder and 4 more models Confirmed by the manufacturer


$1,368.89

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier DAA2-5070 is a 50 W, 70.7 Vrms digital audio amplifier assembly with power supply and chassis for the DVC Digital Voice Command emergency voice system. It accesses one of up to eight audio channels on the DVC digital audio loop (DAL), amplifies it and distributes it through four Class B or two Class A speaker outputs.

It runs from 120 VAC, 60 Hz (the E version uses 220 to 240 VAC, 50/60 Hz) and has a current-limited charger for two 12 V sealed lead acid batteries in series, up to 200 AH, which can be enabled or disabled. Two wire digital audio ports connect to DAL segments and either can be converted to fiber with fiber option modules. An isolated alarm bus input gives backup activation of alarm messages if digital communication is lost, and the amplifier stores backup alarm and trouble messages.

An optional BDA amplifier provides one-to-one backup, two-channel operation (two messages at once), or raises output to 100 W. Up to 32 DAL devices such as DAA2 amplifiers connect to one DVC, and DAA2, DAX and DAA amplifiers can be mixed on the same DAL. Options include a firefighter telephone riser, RM-1 remote microphone support and an adjustable background music input.

  • Best for: adding 70.7 Vrms speaker circuit power to Notifier DVC emergency voice evacuation systems.
  • System fit: Notifier DVC-EM Digital Voice Command on NFS2-640, NFS-320 and NFS2-3030 systems; mixes with DAX and DAA amplifiers on the DAL.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Speaker power

    50 W total at 70.7 Vrms speaker circuit output.

  • Flexible wiring

    four Class B or two Class A high-level audio outputs.

  • Backup options

    optional BDA gives one-to-one backup, two channels or up to 100 W.

  • Standby power

    built-in charger for two 12 V batteries up to 200 AH.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUDAA2-5070
General
Brand Notifier
Model DAA2-5070
Device Type Digital audio amplifier assembly
Device Type Detail With power supply and chassis
Series DAA2 Series
Output Power 50 W
Speaker Circuit Output 70.7 Vrms
Speaker Outputs 4 Class B or 2 Class A
Audio Channels Accesses one of up to 8 DAL channels; two with optional BDA
Backup Amplifier Optional BDA: one-to-one backup, two-channel operation, or up to 100 W
DAL Ports 2 wire digital audio ports; fiber with optional fiber modules
DAL Capacity Up to 32 DAL devices per DVC
Alarm Bus Isolated input for backup activation of alarm messages
Options Firefighter telephone riser, RM-1 remote microphone, background music input
E Version DAA2-5070E, 220 to 240 VAC
Electrical
Operating Voltage 120 VAC, 60 Hz
Input Voltage, E Version 220 to 240 VAC, 50/60 Hz
AC Fuse 8 A, 250 V, 5 x 20 mm fast-acting ceramic (Notifier p/n 12117)
24 V AUX Output Power-limited, 0.5 A
Battery Charger Two 12 V SLA batteries in series, up to 200 AH; enable/disable option
Battery Cables Supplied for CAB-4 and CHS-BH1 battery mounting
Battery Sharing 12 AWG, same cabinet or conduit up to 20 ft (6.09 m)
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM, FDNY
Approval Details UL Listed S635; ULC Listed S635; FM Approved; CSFM 7165-0028:0243 (NFS2-640/NFS-320), 7165-0028:0224 (NFS2-3030); FDNY COA#6212 (NFS2-640/NFS-320), COA#6211 (NFS2-3030)
Standards NFPA 72 2007; UL 864; ULC-S527-11; FCC Part 15 Class A
