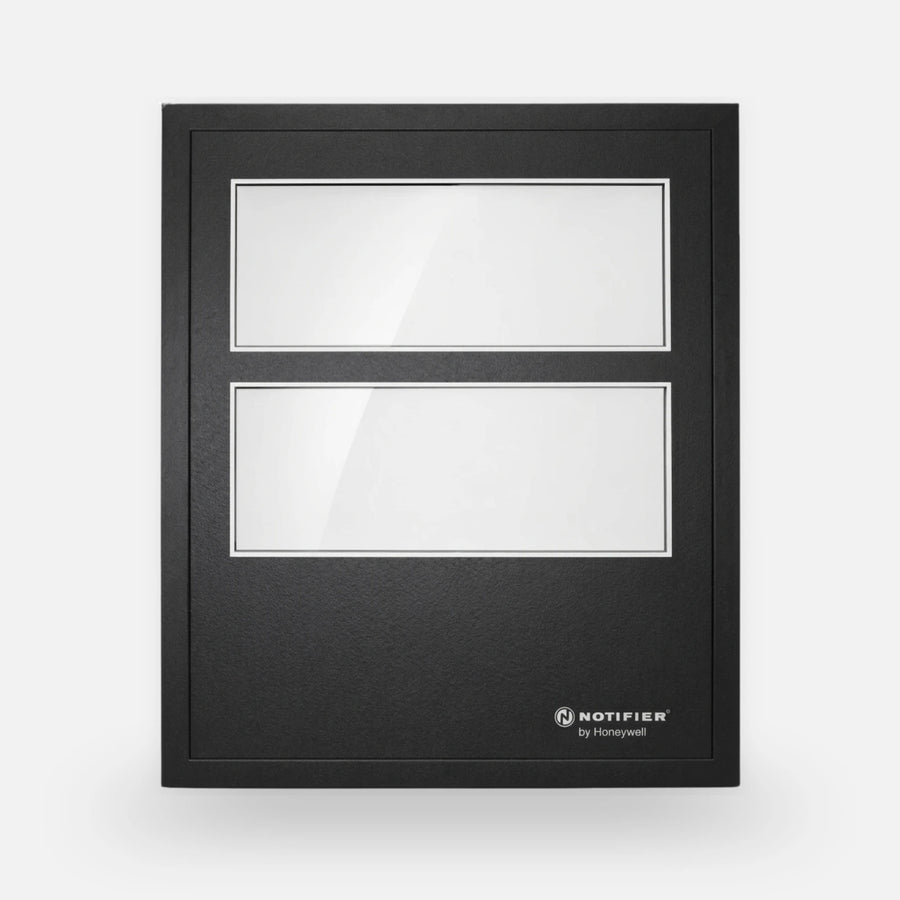

Notifier DR-B4 CAB-4 Series Two-Tier Door Assembly with Lock and Keys

Part number / SKU
DR-B4
  • Cabinet door assembly
  • Semi-flush
  • UL, ULC, MEA, CSFM, FM

Works with: SBB-B4 backbox, BP2-4 battery dress plate, CAB-4 trim ring (semi-flush), NFS2-640, NFS2-3030, NFS-640 and 1 more model Confirmed by the manufacturer


$295.37

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier DR-B4 is the door assembly for the "B" size, two-tier CAB-4 Series cabinet used with Notifier ONYX Series fire alarm control panels. A CAB-4 cabinet has two main parts, a backbox and a locking door, and the DR-B4 is the door, ordered separately from the SBB-B4 backbox.

Notifier builds CAB-4 cabinets from 16-gauge steel in black or red, with or without LEXAN windows. The door uses a pin-type hinge that is field-selectable for right or left hand opening, opens 180 degrees and comes with two keys. Black metal trim rings allow semi-flush mounting, and the backbox has knockouts at several points for conduit entry. Cabinets are seismic certified when used with the appropriate seismic mounting kit.

  • Best for: replacing or specifying the door on a two-tier CAB-4 cabinet for an NFS2-640, NFS2-3030 or earlier NFS series panel.
  • System fit: Notifier CAB-4 Series "B" size cabinets (SBB-B4 backbox) for NFS-640, NFS-3030, NFS2-640 and NFS2-3030 panels.
  • Important to know: the backbox is a separate part, and installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Sized to fit

    door for the "B" size, two-tier CAB-4 Series cabinet.

  • Steel build

    CAB-4 cabinets use 16-gauge steel construction.

  • Flexible hinge

    field-selectable right or left hand hinge, opening 180 degrees, with two keys.

  • Listed cabinet

    CAB-4 Series cabinets carry UL S635, ULC CS118, MEA, CSFM and FM listings.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUDR-B4
General
Brand Notifier
Model DR-B4
Device Type Cabinet door assembly
Device Type Detail With lock and keys
Series CAB-4 Series
Cabinet Size "B" (two-tier)
Tiers 2
Matching Backbox SBB-B4
Keys Two
Physical
Material 16-gauge steel
Hinge Pin-type, field-selectable right or left hand
Door Opening 180 degrees
Cabinet Colors Black or red; LEXAN window or solid door versions
Mount Type Semi-flush
Mount Type Detail With optional black metal trim ring
Conduit Entry Backbox knockouts at multiple points
Seismic Seismic certified with the appropriate seismic mounting kit
Listings and Approvals
Agency Approvals UL, ULC, MEA, CSFM, FM
Approval Details UL Listed S635; ULC Listed CS118; MEA 317-01-E, 345-02-E; CSFM 7165-0028:214, 7170-0028:216 (NFS-640), 7165-0028:224, 7170-0028:223 (NFS-3030); FM Approved (all except AA size)
