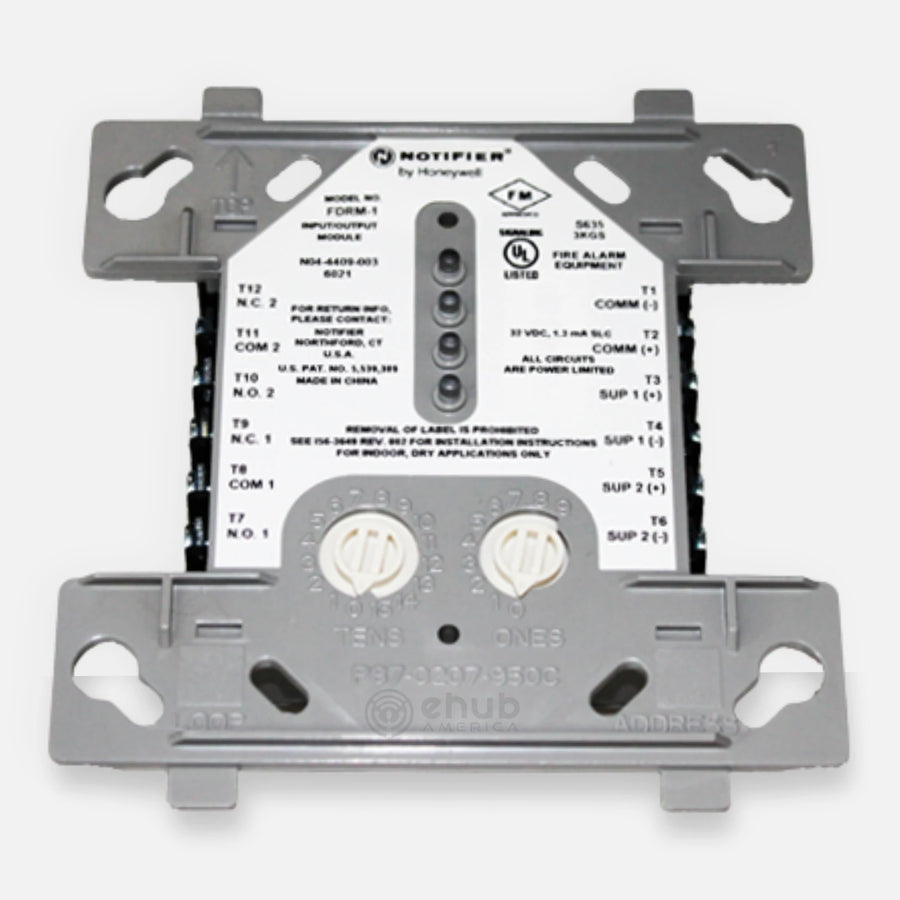

Notifier FDRM-1 FlashScan Dual Relay and Dual Monitor Module

Part number / SKU
FDRM-1
  • Dual relay, dual monitor module
  • Addressable
  • UL, ULC, CSFM

Works with: Notifier ONYX Series panels, Notifier CLIP Series panels Confirmed by the manufacturer


$313.58

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier FDRM-1 is a FlashScan dual relay and dual monitor module for intelligent two-wire loops on Notifier ONYX and CLIP Series fire alarm control panels. It contains two individual relay control modules and two Class B monitor modules in one unit.

Each relay output provides Form C switching for applications that do not need wiring supervision of the load circuit, and each monitor input connects the panel to one or more normally open contact devices. Rotary decimal switches set addresses from 1 to 159, and addresses can be viewed and changed without an electronic programmer. It is UL/ULC listed S635 and CSFM 7300-0028:0219.

  • Best for: combining two auxiliary relay outputs and two normally open contact inputs in one addressable module.
  • System fit: Notifier ONYX Series and CLIP Series fire alarm control panels on intelligent two-wire loops.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Four points in one

    two relay outputs and two monitor inputs in a single module.

  • Form C relays

    each output switches loads that do not need wiring supervision.

  • Class B inputs

    each input monitors one or more normally open contact devices.

  • No programmer needed

    rotary switches set addresses from 1 to 159.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUFDRM-1
General
Brand Notifier
Model FDRM-1
Device Type Dual relay, dual monitor module
Device Type Detail Addressable
Addressing Addressable
Addressing Detail Rotary decimal switches, 1 to 159
Protocol FlashScan
Outputs 2 Form C relays, load wiring not supervised
Inputs 2 Class B monitor inputs for normally open contact devices
Communications Addressable analog
Listings and Approvals
Agency Approvals UL, ULC, CSFM
Approval Details UL/ULC Listed S635; CSFM 7300-0028:0219
