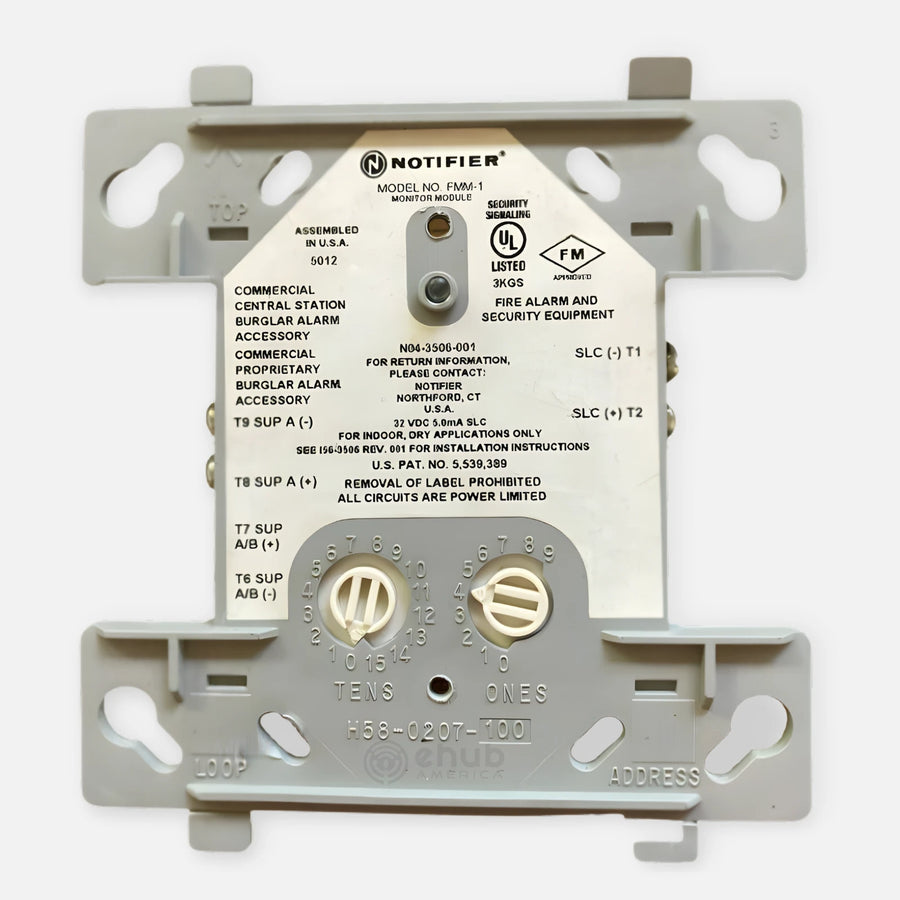

Notifier FMM-1 FlashScan Addressable Monitor Module, Class A or B

Part number / SKU
FMM-1
  • Addressable monitor module
  • Addressable
  • 4 in square box or SMB500
  • 15 to 32 VDC
  • UL, ULC, FM, CSFM, MEA, USCG

Works with: SMB500 surface-mount backbox, NFS2-640, NFS2-320, NFS2-3030 Confirmed by the manufacturer


$65.49

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier FMM-1 is a standard-size FlashScan addressable monitor module that supervises a dry-contact initiating device circuit, such as pull stations, waterflow devices and four-wire smoke detectors, and reports its status to a Notifier intelligent fire alarm control panel. It is powered by the two-wire SLC and needs no additional power.

The input circuit can be wired Style D (Class A) or Style B (Class B) with the supplied 47K ohm end-of-line resistor. The module operates from 15 to 32 VDC, draws 375 µA average with the LED flashing, accepts up to 1500 ohm IDC wiring resistance, and mounts in a 4 in square, 2.125 in deep box or the SMB500 surface box. It replaces the MMX-1 in existing systems.

  • Best for: monitoring pull stations, waterflow switches and other dry-contact initiating devices on Notifier addressable loops.
  • System fit: Notifier intelligent fire alarm control panels on FlashScan or CLIP SLC loops, including NFS2-640, NFS2-320 and NFS2-3030.
  • Important to know: addresses must not be duplicated on the loop; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Class A or B input

    supervises a dry-contact IDC wired Style D (Class A) or Style B (Class B).

  • Loop powered

    runs from the SLC with 375 µA average operating current.

  • Long input runs

    accepts up to 1500 ohm IDC wiring resistance.

  • Clear status

    LED latches steady to indicate alarm.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUFMM-1
General
Brand Notifier
Model FMM-1
Device Type Addressable monitor module
Device Type Detail Standard size
Addressing Addressable
Addressing Detail 01 to 159 on FlashScan, 01 to 99 on CLIP; rotary switches
Protocol FlashScan and CLIP
Input One dry-contact IDC, Style D (Class A) or Style B (Class B)
Indicators LED latches steady on alarm
Replaces MMX-1 in existing systems
Electrical
Operating Voltage 15 to 32 VDC
Maximum Current 5.0 mA (LED on)
Average Operating Current 375 µA (LED flashing, one communication every 5 seconds, 47K EOL)
Maximum IDC Wiring Resistance 1500 ohm
Maximum IDC Voltage 11 V
EOL Resistor 47K ohm, supplied (Style B only)
Physical
Dimensions 4.5 in H x 4 in W x 1.25 in D
Mount Type 4 in square box or SMB500
Mount Type Detail 4 in square x 2.125 in deep box or SMB500 surface box
Environmental
Operating Temperature 32°F to 120°F (0°C to 49°C)
Relative Humidity 10% to 93% non-condensing
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM, MEA, USCG
Approval Details UL Listed S635; ULC S635 (A models); FM Approved; CSFM 7300-0028:0219, 7165-0028:0224, 7165-0028:0243; MEA 457-99-E; USCG 161.002/50/0; Lloyd's Register 11/600013; FDNY COA #6121 (NFS2-640, NFS2-320), #6114 (NFS2-3030)
