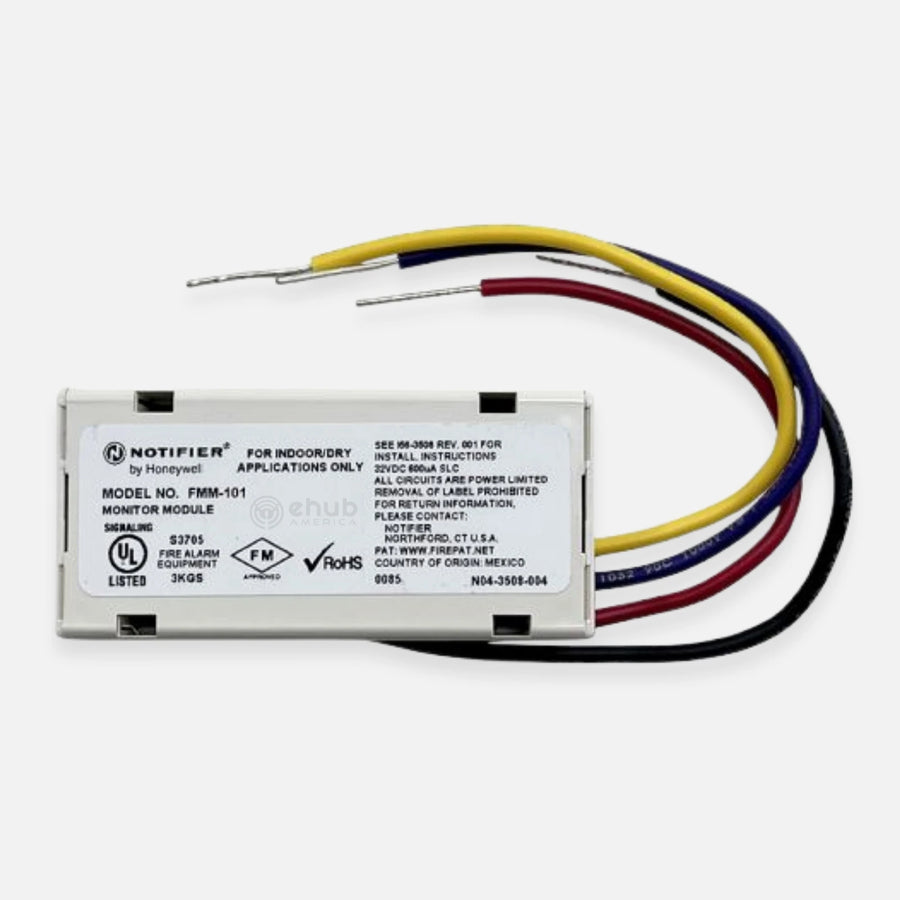

Notifier FMM-101 FlashScan Miniature Addressable Monitor Module, Class B

Part number / SKU
FMM-101
  • Addressable monitor module
  • Addressable
  • Inside a single-gang box
  • 15 to 32 VDC
  • UL, ULC, FM, CSFM, MEA, USCG

Works with: NFS2-640, NFS2-320, NFS2-3030 Confirmed by the manufacturer


$52.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier FMM-101 is a miniature FlashScan addressable monitor module that supervises a single Style B (Class B) dry-contact initiating device circuit. It is small enough to fit in a single-gang junction box directly behind the device it monitors, and it is powered by the two-wire SLC.

The module measures 1.3 x 2.75 x 0.65 in, uses tinned and stripped leads with a 6 in minimum wire length, and uses the supplied 47K ohm end-of-line resistor. It operates from 15 to 32 VDC, draws 350 µA average, and accepts up to 1500 ohm IDC wiring resistance. It replaces the MMX-101 in existing systems.

  • Best for: monitoring a single pull station, waterflow switch or other dry-contact device where the module must fit behind the device.
  • System fit: Notifier intelligent fire alarm control panels on FlashScan or CLIP SLC loops, including NFS2-640, NFS2-320 and NFS2-3030.
  • Important to know: addresses must not be duplicated on the loop; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Fits behind the device

    1.3 x 2.75 x 0.65 in body mounts in a single-gang box.

  • Loop powered

    runs from the SLC with 350 µA average operating current.

  • Long input runs

    accepts up to 1500 ohm IDC wiring resistance.

  • FlashScan and CLIP

    addresses 01 to 159 on FlashScan or 01 to 99 on CLIP.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUFMM-101
General
Brand Notifier
Model FMM-101
Device Type Addressable monitor module
Device Type Detail Miniature
Addressing Addressable
Addressing Detail 01 to 159 on FlashScan, 01 to 99 on CLIP; rotary switches
Protocol FlashScan and CLIP
Input One dry-contact IDC, Style B (Class B) only
Leads Tinned and stripped; 6 in (15.24 cm) minimum wire length
Replaces MMX-101 in existing systems
Electrical
Operating Voltage 15 to 32 VDC
Average Operating Current 350 µA (one communication every 5 seconds, 47K EOL)
Maximum Current 600 µA (communicating, IDC shorted)
Maximum IDC Wiring Resistance 1500 ohm
Maximum IDC Voltage 11 V
Maximum IDC Current 450 µA
EOL Resistor 47K ohm, supplied
Physical
Dimensions 1.3 in H x 2.75 in W x 0.65 in D
Mount Type Inside a single-gang box
Mount Type Detail Behind the monitored device
Environmental
Operating Temperature 32°F to 120°F (0°C to 49°C)
Relative Humidity 10% to 93% non-condensing
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM, MEA, USCG
Approval Details UL Listed S635; ULC S635 (A models); FM Approved; CSFM 7300-0028:0219, 7165-0028:0224, 7165-0028:0243; MEA 457-99-E; USCG 161.002/50/0; Lloyd's Register 11/600013; FDNY COA #6121 (NFS2-640, NFS2-320), #6114 (NFS2-3030)
