Notifier · Fire Alarm

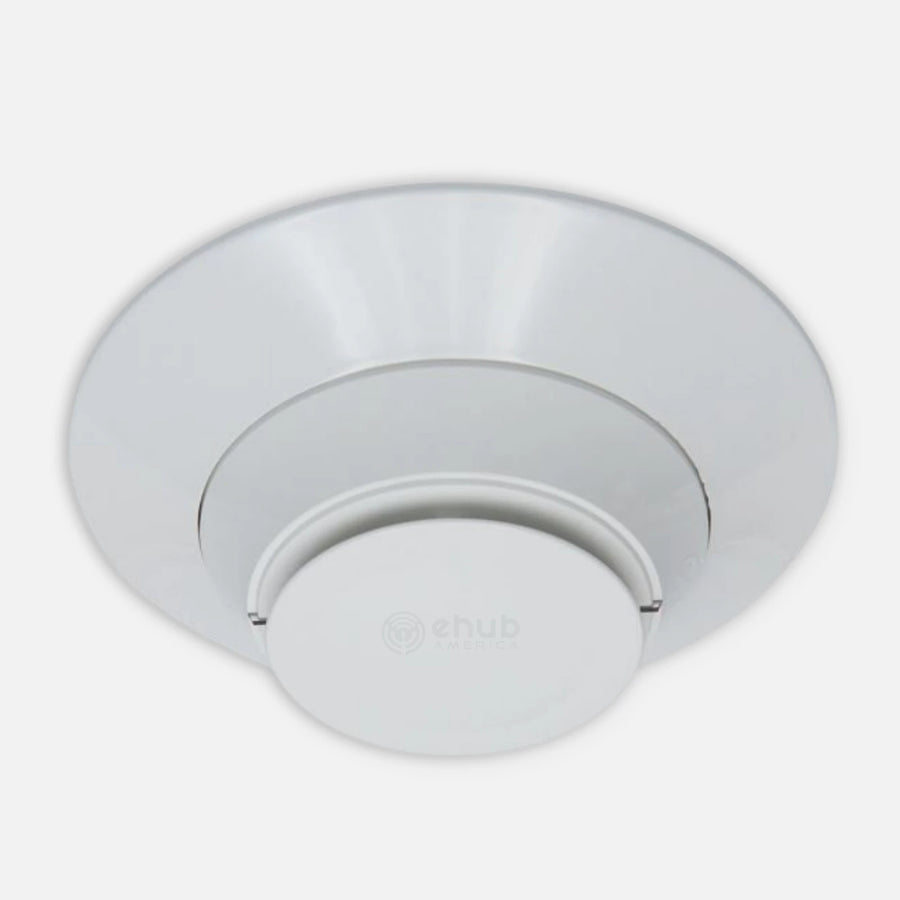

Notifier FSP-951 Intelligent Addressable Photoelectric Smoke Detector, White

Part number / SKU
FSP-951
  • Photoelectric smoke detector
  • Photoelectric
  • Addressable
  • Plugs into a separate base
  • 15 to 32 VDC peak

Works with: B300-6 6 in flanged low-profile base, B501-WHITE 4 in flangeless base, B224RB-WH relay base, B224BI-WH isolator base, B200S-WH intelligent sounder base, B200S-LF-WH low-frequency sounder base and 6 more models Confirmed by the manufacturer


$76.93

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier FSP-951 is an intelligent, plug-in photoelectric smoke detector from the FSP-951 Series. It connects to a Notifier intelligent fire alarm control panel over a two-wire SLC loop, and its sensitivity is programmed from the panel and continuously monitored and reported to it. Rotary decimal switches set the address, from 1 to 159 on FlashScan loops.

Sensitivity runs from 0.5% to 4.0% per foot obscuration for UL applications, with a factory preset of 1.5%. The detector operates from 15 to 32 VDC and draws 200 µA maximum average in standby at 24 VDC. It stands 2.0 in high, plugs into a separate base mounted on a backbox at least 1.5 in deep, and is listed for air velocities up to 4000 ft/min, so it is suitable for ducts.

Notifier offers relay, isolator and sounder bases for the series, including the B300-6 6 in flanged base, the B501 4 in base, the B224RB relay base, the B224BI isolator base and the B200S sounder base. Notifier positions the FSP-951 Series as a direct replacement for the FSP-851 Series.

  • Best for: addressable smoke detection on Notifier FlashScan systems, including duct applications within the listed 0 to 4000 ft/min air velocity range.
  • System fit: Notifier intelligent fire alarm control panels on FlashScan SLC loops; plugs into B300-6, B501, B224RB, B224BI and B200S Series bases.
  • Important to know: the detector head plugs into a separate base that is ordered as its own part; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Panel-set sensitivity

    sensitivity is programmed from the panel and reported back continuously.

  • Low loop load

    200 µA maximum average standby current at 24 VDC.

  • Duct-rated airflow

    listed for air velocities from 0 to 4000 ft/min.

  • Easy service testing

    magnet test switch, remote test from the panel and a walk test that blinks the address.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUFSP-951
General
Brand Notifier
Series FSP-951 Series
Model FSP-951
Device Type Photoelectric smoke detector
Device Type Detail Intelligent plug-in
Detection Type Photoelectric
Addressing Addressable
Protocol FlashScan (FSP-951 white model is FlashScan only)
Address Range 1 to 159 on FlashScan; 1 to 99 on CLIP
Sensitivity 0.5% to 4.0% per foot obscuration (UL); 0.5% to 3.5% per foot (ULC)
Factory Setting 1.5% nominal sensitivity for panel alarm threshold
Indicators Dual bi-color LEDs, 360 degree view; blink green when addressed, steady red in alarm (FlashScan only)
Testing Magnet-activated functional test switch; remote test from the panel; walk test with address display (FlashScan only)
Mount Type Plugs into a separate base
Mount Type Detail Base on a backbox at least 1.5 in (3.81 cm) deep
Color White
Electrical
Operating Voltage 15 to 32 VDC peak
Standby Current 200 µA max average at 24 VDC (one communication every 5 seconds, LED enabled)
LED Current 4.5 mA max at 24 VDC (on)
Wiring Two-wire SLC; no end-of-line resistor; T-taps permitted for Style 4 (Class B) only
Physical
Height 2.0 in; diameter set by base
Diameter with B300-6 6.1 in (15.6 cm)
Diameter with B501 4 in (10.2 cm)
Weight 3.4 oz (96.4 g)
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C)
Relative Humidity 10% to 93% non-condensing
Air Velocity 0 to 4000 ft/min (1219.2 m/min), suitable for ducts
Spacing Per NFPA 72; 30 ft (9.1 m) in low-airflow applications with smooth ceilings
Listings and Approvals
Agency Approvals UL/ULC Listed; FM Approved; CSFM 7272-0028:0503
Standards Designed to meet UL 268, 7th Edition
