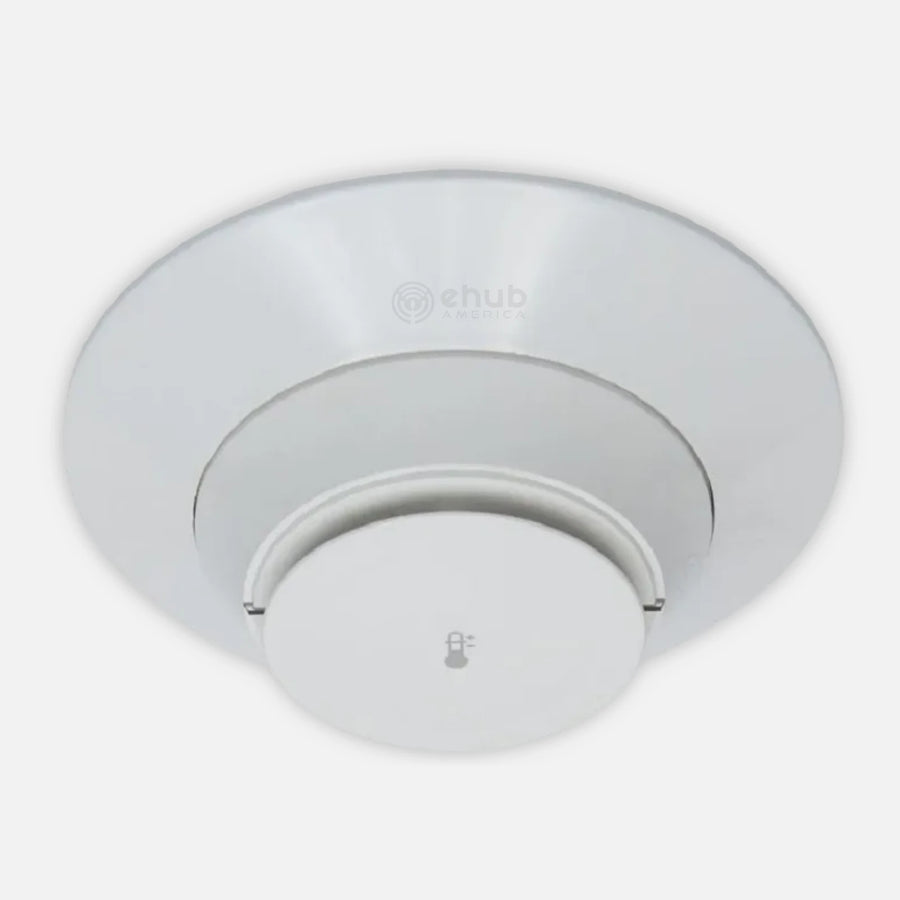

Notifier FST-951R Intelligent Addressable Rate-of-Rise Heat Detector, White

Part number / SKU
FST-951R
  • Plug-in thermal detector
  • Rate-of-rise
  • Addressable
  • Plugs into a separate base
  • 15 to 32 VDC peak

Works with: B300-6 6 in flanged low-profile base, B501-WHITE 4 in flangeless base, B224RB-WH relay base, B224BI-WH isolator base, B200S-WH intelligent sounder base, B200S-LF-WH low-frequency sounder base and 6 more models Confirmed by the manufacturer


$52.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier FST-951R is an intelligent, plug-in rate-of-rise heat detector from the 951 Series. It reports to a Notifier intelligent fire alarm control panel over a two-wire SLC loop with built-in device type identification, and rotary decimal switches set the address from 1 to 159 on FlashScan loops.

The detector operates from 15 to 32 VDC and draws 200 µA maximum average in standby at 24 VDC. It stands 2.0 in high and plugs into a separate base. UL spacing is 50 ft center to center and FM spacing is 25 x 25 ft; the operating range is -4°F to 100°F (-20°C to 38°C).

Bases include the B300-6 6 in flanged base, the B501 4 in base, the B224RB relay base, the B224BI isolator base and the B200S sounder base, plus the RA100Z remote LED annunciator.

  • Best for: addressable heat detection that responds to a 15°F per minute temperature rise on Notifier FlashScan systems.
  • System fit: Notifier intelligent fire alarm control panels on FlashScan SLC loops; plugs into B300-6, B501, B224RB, B224BI and B200S Series bases.
  • Important to know: the detector head plugs into a separate base that is ordered as its own part; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Rate-of-rise sensing

    alarms at 15°F (8.3°C) per minute rise.

  • Wide UL spacing

    listed for 50 ft center to center.

  • Low loop load

    200 µA maximum average standby current at 24 VDC.

  • Easy service testing

    magnet test switch, remote test from the panel and an address-blinking walk test.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUFST-951R
General
Brand Notifier
Series 951 Series thermal detectors
Model FST-951R
Device Type Plug-in thermal detector
Device Type Detail Intelligent; heat
Detection Type Rate-of-rise
Alarm Point 15°F (8.3°C) per minute rise
Addressing Addressable
Protocol FlashScan
Address Range 1 to 159 on FlashScan; 1 to 99 on CLIP
Indicators Two bi-color LEDs, 360 degree view; blink green in normal condition, steady red in alarm
Testing Magnet-activated functional test switch; remote test from the panel; walk test blinks the address
Mount Type Plugs into a separate base
Color White
Electrical
Operating Voltage 15 to 32 VDC peak
Standby Current 200 µA max average at 24 VDC (one communication every 5 seconds, LED enabled)
LED Current 4.5 mA max at 24 VDC (on)
Wiring Two-wire SLC; no end-of-line resistor; T-taps permitted for Style 4 (Class B)
Physical
Height 2.0 in; diameter set by base
Diameter with B300-6 6.1 in (15.6 cm)
Diameter with B501 4 in (10.2 cm)
Weight 3.4 oz (96.4 g)
Environmental
Operating Temperature -4°F to 100°F (-20°C to 38°C)
Relative Humidity 10% to 93% non-condensing
Spacing UL 50 ft (15.24 m) center to center; FM 25 x 25 ft (7.62 x 7.62 m)
Listings and Approvals
Agency Approvals UL/ULC Listed S2101; FM Approved; CSFM 7270-0028:0502
