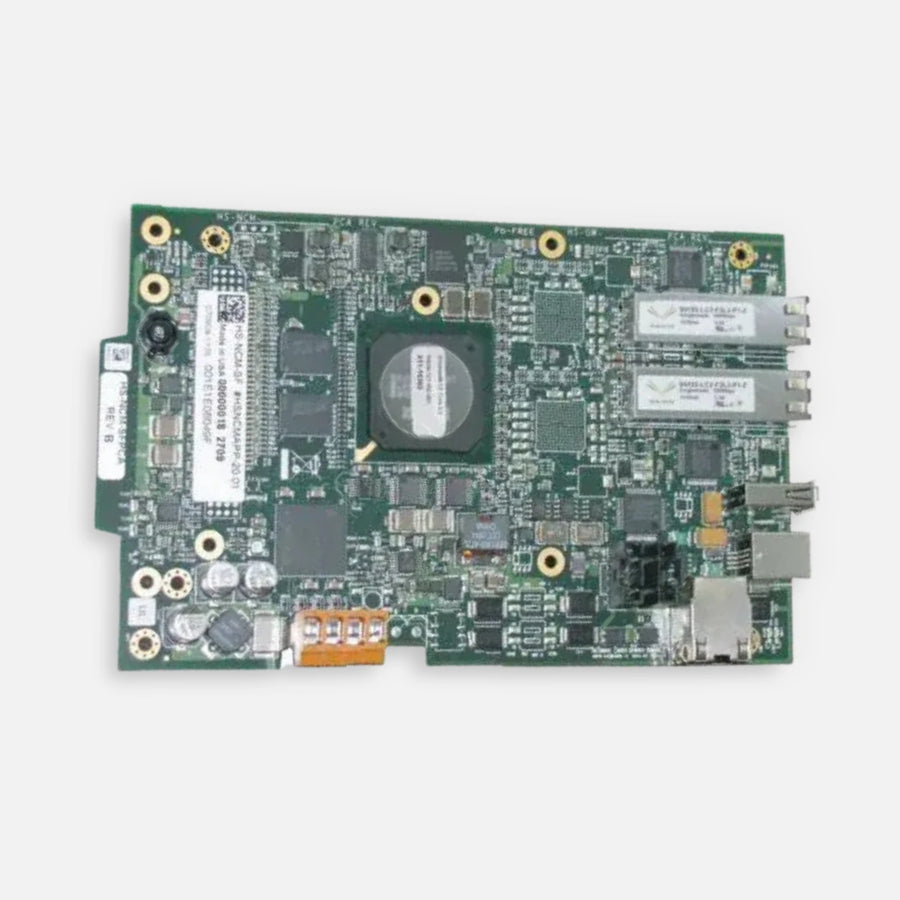

Notifier HS-NCM-MF High-Speed Network Communications Module, Multi-Mode Fiber

Part number / SKU
HS-NCM-MF
  • NOTI-FIRE-NET network module
  • CHS-4L, CHS-M2, CHS-M3
  • 24 VDC
  • UL, ULC, CSFM, FM, FDNY

Works with: NFS-320, NFS-640, NFS2-640, NFS-3030, NFS2-3030, NCA network control annunciator and 10 more models Confirmed by the manufacturer


$1,515.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier HS-NCM-MF is a High-Speed NOTI-FIRE-NET communications module that connects network nodes over multi-mode fiber-optic cable. It provides the network connection for Notifier NFS-320, NFS-640, NFS2-640, NFS-3030 and NFS2-3030 panels, NCA and NCA-2 network control annunciators and the DVC Digital Voice Command, and it defaults to repeater mode when no panel is connected.

Each module supports up to two node addresses and runs at 100 Mb baud on fiber, regenerating data at each node. It uses LC connectors at 1310 nm on 62.5/125 µm (10 dB max attenuation) or 50/125 µm (6.5 dB max) multi-mode fiber, supports NFPA Style 4 (Class B) or Style 7 (Class A), and draws 400 mA at 24 VDC. It mounts on a CHS-4L, CHS-M2, CHS-M3, CHS-4N or CPU2-640 chassis.

It connects to another HS-NCM-MF, or to the HS-NCM-WMF, HS-NCM-WSF or HS-NCM-MFSF when a network mixes wire and fiber media.

  • Best for: linking Notifier panels and annunciators on High-Speed NOTI-FIRE-NET over multi-mode fiber.
  • System fit: Notifier NFS-320, NFS-640, NFS2-640, NFS-3030, NFS2-3030, NCA, NCA-2 and DVC on High-Speed NOTI-FIRE-NET.
  • Important to know: it connects to an HS-NCM-MF on the adjacent panel, or to an HS-NCM-WMF, HS-NCM-WSF or HS-NCM-MFSF; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Fast fiber network

    100 Mb baud High-Speed NOTI-FIRE-NET over multi-mode fiber.

  • Noise immunity

    optical isolation prevents ground loops between nodes.

  • Two node addresses

    each module supports up to two network node addresses.

  • Class A or B

    supports NFPA Style 4 (Class B) or Style 7 (Class A) network wiring.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUHS-NCM-MF
General
Brand Notifier
Model HS-NCM-MF
Device Type NOTI-FIRE-NET network module
Device Type Detail High-Speed NOTI-FIRE-NET network communications module
Network High-Speed NOTI-FIRE-NET
Media Multi-mode fiber-optic cable
Node Addresses Up to 2 per module
Transmission Rate 100 Mb baud
Wiring Class NFPA Style 4 (Class B) or Style 7 (Class A)
Repeater Mode Default when no panel is connected
Electrical
Operating Voltage 24 VDC
Current Draw 400 mA at 24 VDC
Physical
Fiber Type 62.5/125 µm or 50/125 µm multi-mode
Maximum Attenuation 10 dB (62.5/125 µm); 6.5 dB (50/125 µm)
Wavelength 1310 nm
Connectors LC style
Mount Type CHS-4L, CHS-M2, CHS-M3
Mount Type Detail CHS-4N or CPU2-640 chassis
Weight 5.2 oz (147.4 g)
Environmental
Operating Temperature 32°F to 120°F (0°C to 49°C)
Relative Humidity 85% at 30°C (NFPA); 93% ±2% at 32°C ±2°C (ULC), non-condensing
Listings and Approvals
Agency Approvals UL, ULC, CSFM, FM, FDNY
Approval Details UL Listed S635; ULC Listed S635; CSFM 7300-0028:0257, 7165-0028:0224; FM Approved; FDNY COA#6022
