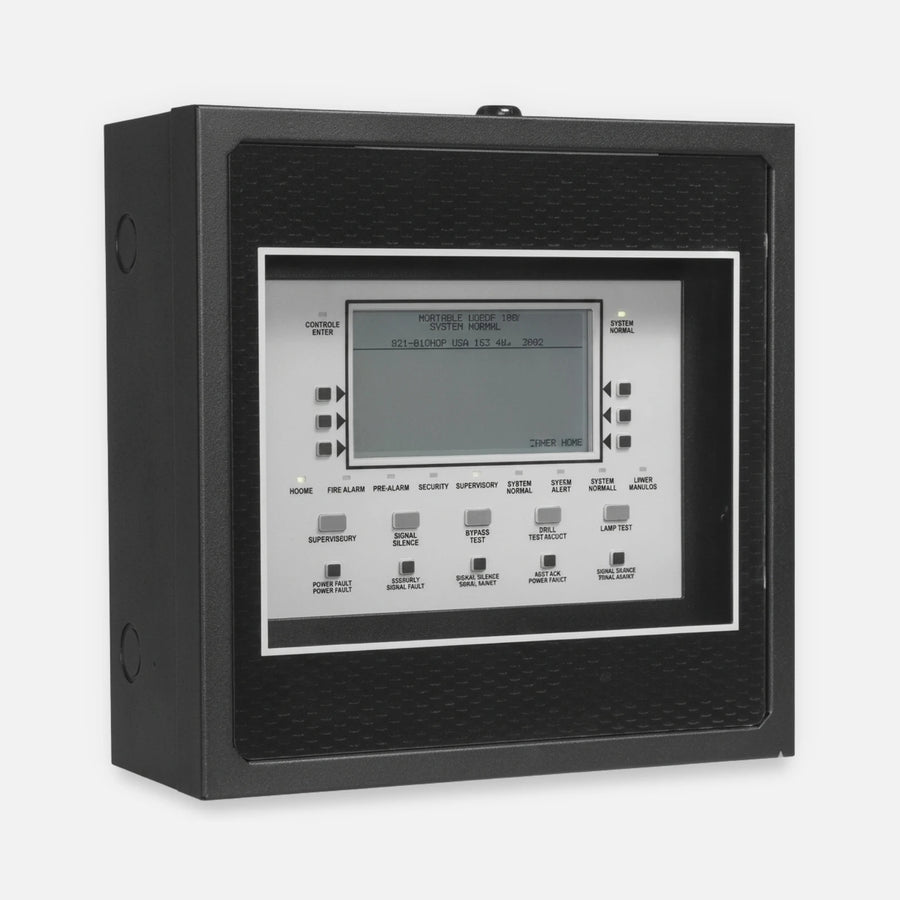

Notifier LCD-160 640-Character LCD Annunciator and Remote Control for NFS2-3030

Part number / SKU
LCD-160
  • LCD annunciator, remote control
  • Two ACS module locations
  • Regulated, filtered 24 VDC
  • UL, ULC, MEA, FDNY, CSFM, FM

Works with: NFS-3030, NFS2-3030, ABS-2D surface or semi-flush box, ABS-2DR red box, ABS-4D box (LCD-160 plus two annunciators), ABF-2B flush box and 8 more models Confirmed by the manufacturer


$816.46

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier LCD-160 is a 640-character backlit liquid crystal display annunciator and remote control for the NFS-3030 and NFS2-3030 fire alarm control panels. It mimics the top 160 characters of the panel's 640-character display.

The display is 40 characters wide by 16 lines, with fixed keys for Acknowledge, Signal Silence, System Reset, Drill, Lamp Test and event review, six soft keys and an input for the AKS-1B key switch. It connects on the panel's RDP bus, up to 32 devices per bus and 4000 ft at 18 AWG, and needs supervised, non-resettable 24 VDC drawing 0.300 A standby with backlight on. It fits two ACS annunciator module locations.

Backboxes include the ABS-2D surface or semi-flush box, ABS-4D for one LCD-160 plus two annunciators, and ABF-2B and ABF-4B flush boxes; the DP-DISP dress panel mounts it in CAB-4 Series cabinets. The LCD-160C is the ULC listed version.

  • Best for: remote annunciation and control of NFS-3030 and NFS2-3030 fire alarm panels.
  • System fit: Notifier NFS-3030 and NFS2-3030 fire alarm control panels on the RDP bus.
  • Important to know: it needs a supervised, non-resettable 24 VDC supply and a separate backbox or dress panel; installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Full-size display

    640-character backlit LCD, 40 characters by 16 lines.

  • Remote panel control

    Acknowledge, Signal Silence, System Reset and Drill keys plus six soft keys.

  • Long runs

    up to 4000 ft at 18 AWG from the panel to the last device.

  • Clear status LEDs

    separate indicators for fire alarm, pre-alarm, security, supervisory and trouble.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKULCD-160
General
Brand Notifier
Model LCD-160
Device Type LCD annunciator, remote control
Display 640-character backlit LCD, 40 characters x 16 lines
Panel Display Mimic Top 160 characters of the panel 640-character display
Fixed Keys Acknowledge, Signal Silence, System Reset, Drill (hold 2 seconds), Lamp Test, Fire Alarm, Security, Supervisory, Trouble, Other Event
Soft Keys 6
Key Switch Input AKS-1B; not supported in ABS-2D/DR, ABS-4D/DR, ABF-2DB or ABS-1B boxes
Status LEDs Power, Fire Alarm, Pre-Alarm, Security, Supervisory, System Trouble, Signals Silenced, Point Disabled, Controls Active
Bus RDP, up to 32 devices per bus
Electrical
Operating Voltage Regulated, filtered 24 VDC
Operating Voltage Detail Non-resettable, supervised
Standby Current 0.300 A backlight on; 0.075 A backlight off
Alarm Current 0.325 A backlight on, all LEDs active
Wiring 18 to 12 AWG twisted pair, 120 ohm ±20% characteristic impedance
Maximum Distance 4000 ft (1219.2 m) at 18 AWG to the last device
Resistance Limits 100 ohm total RDP bus; 10 ohm device power circuit
Physical
Mount Type Two ACS module locations
Mount Type Detail Two ACS annunciator module locations; ABS-2D, ABS-4D, ABF-2B, ABF-4B boxes or DP-DISP dress panel
Weight 2.50 lb (1.134 kg)
Environmental
Operating Temperature 32°F to 120°F (0°C to 49°C)
Relative Humidity 93% ±2% at 32°C ±2°C, non-condensing
Recommended Room Temperature 60°F to 80°F (15°C to 27°C)
Listings and Approvals
Agency Approvals UL, ULC, MEA, FDNY, CSFM, FM
Approval Details UL Listed S635; ULC S527-11; MEA 8-04-E (annunciator only); FDNY COA#6211 (with NFS2-3030); CSFM 7120-0028:0227, 7165-0028:0224; FM Approved
