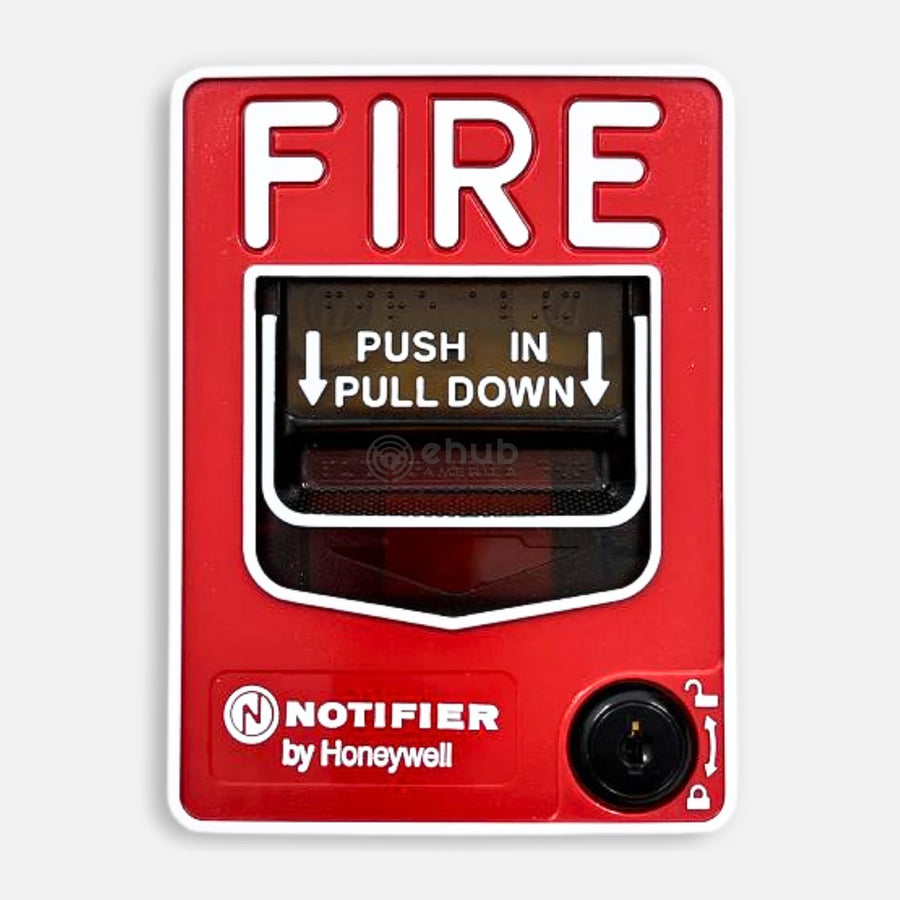

Notifier NBG-12LOB Weatherproof Conventional Manual Fire Alarm Pull Station

Part number / SKU
NBG-12LOB
  • Manual pull station, non-coded
  • Conventional
  • Surface or semi-flush
  • UL, cUL, CSFM, FM, MEA

Works with: Conventional fire alarm control panels, Notifier XP transponders, SB-10 surface back box, SB-I/O surface back box, BG12TR trim ring Confirmed by the manufacturer


$120.89

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier NBG-12LOB is a weatherproof, non-coded manual pull station from the NBG-12 Series. Its normally open contacts give an alarm initiating input to conventional fire alarm control panels and to Notifier XP transponders.

The push-in, pull-down handle latches when operated and shows the word ACTIVATED, and the pull force is within the ADA 5 lb maximum. Wiring lands on a four-position terminal strip molded into the backplate, with captive Phillips combination-head 8/32 screws that ship backed out and accept up to 12 AWG (3.1 mm2) wire. The station can surface mount on an SB-10 or SB-I/O box or semi-flush mount to a single-gang, double-gang or 4 in square electrical box.

The NBG-12 Series is UL and cUL listed (S692) and CSFM approved (7150-0028:199), and the NBG-12LOB is FM approved, MEA approved under file 67-02-E and Lloyd's Register type approved under file 93/60141 (E3). The station opens for inspection and maintenance without causing an alarm, and the BG12TR trim ring is optional.

  • Best for: conventional fire alarm systems that call for a weatherproof manual pull station.
  • System fit: conventional fire alarm control panels and Notifier XP transponders (normally open initiating input).
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Clear activation

    the handle latches down and shows ACTIVATED so responders can find the station that was pulled.

  • Easy to operate

    pull force is within the ADA 5 lb maximum.

  • Service without false alarms

    the station opens for inspection and maintenance without causing an alarm.

  • Broad approvals

    FM approved, MEA 67-02-E and Lloyd's Register 93/60141 (E3) for this model.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUNBG-12LOB
General
Brand Notifier
Model NBG-12LOB
Series NBG-12 Series
Device Type Manual pull station, non-coded
Device Type Detail Weatherproof
Addressing Conventional
Operation Push in, pull down; handle latches and shows ACTIVATED
Pull Force Within ADA 5 lb maximum
Inspection Opens for inspection without initiating an alarm
Markings Braille on handle
Electrical
Contacts Normally open
Wiring Terminals Four-position terminal strip molded into backplate, captive Phillips combination-head 8/32 screws
Wire Size Up to 12 AWG (3.1 mm2)
Circuit Initiating device circuit (IDC) input to conventional FACPs and XP transponders
Physical
Mount Type Surface or semi-flush
Mount Type Detail SB-10 or SB-I/O box
Back Box Single-gang, double-gang or 4 in (10.16 cm) square electrical box for semi-flush
Optional Trim Ring BG12TR
Packaging Clear PVC
Listings and Approvals
Agency Approvals UL, cUL, CSFM, FM, MEA
Approval Details UL and cUL Listed S692 (NBG-12 Series); CSFM 7150-0028:199 (NBG-12 Series); FM Approved; MEA 67-02-E; Lloyd's Register 93/60141 (E3)
