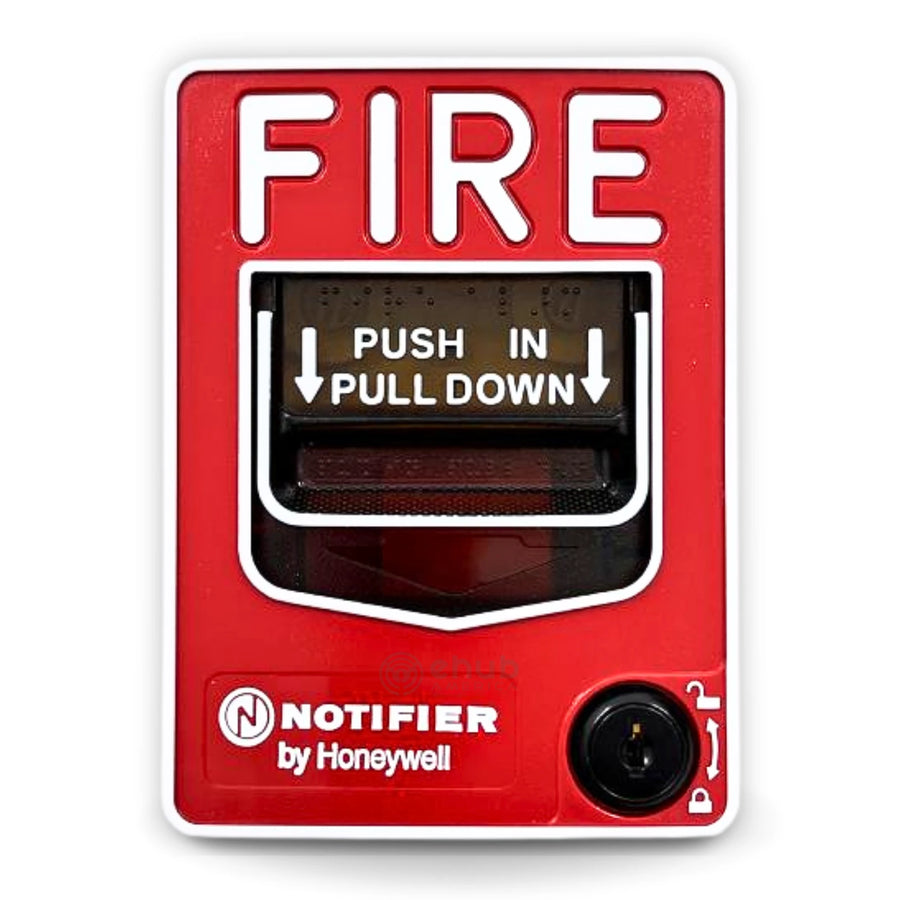

Notifier NBG-12LPS Dual Action Pre-Signal Manual Pull Station, Red

Part number / SKU
NBG-12LPS
  • Dual action manual pull station
  • Conventional
  • Surface mount on SB-10 back box
  • UL, CSFM

Works with: SB-10 surface back box, BG-TR trim ring, 4 in square or double-gang electrical box Confirmed by the manufacturer


$64.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier NBG-12LPS is a dual action manual pull station from the NBG-12 Series with two independently operated normally open SPST switches, one for pre-signal and one for general alarm. It resets with a key and gives conventional initiating inputs to a fire alarm control panel.

The switch contacts are rated 0.25 A at 30 V AC or DC, and molded terminal numbers sit next to the wiring terminals. The station needs a 4 in square or double-gang box for semi-flush mounting, or an SB-10 surface back box, with the BG-TR trim ring as an option. Pull force stays within the ADA 5 lb maximum.

  • Best for: pre-signal and general alarm initiation from one manual station on conventional fire alarm systems.
  • System fit: conventional fire alarm control panels with separate pre-signal and general alarm initiating circuits.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Two alarm stages

    separate normally open switches for pre-signal and general alarm.

  • Key reset

    the station resets with a key lock.

  • Flexible mounting

    semi-flush to a 4 in square or double-gang box, or surface mount on an SB-10 back box.

  • Easy to operate

    pull force within the ADA 5 lb maximum.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUNBG-12LPS
General
Brand Notifier
Model NBG-12LPS
Series NBG-12 Series
Device Type Dual action manual pull station
Device Type Detail With pre-signal and general alarm switches
Addressing Conventional
Switches Two independently operated normally open SPST switches (pre-signal and general alarm)
Reset Key lock
General Alarm Switch Momentary rocker inside the unit, reached by opening the cover with the supplied key
Pull Force Within the ADA 5 lb maximum
ADA Reach Forward reach up to 48 in (121.92 cm); side reach up to 54 in (137.16 cm)
Electrical
Contact Rating 0.25 A at 30 V AC or DC
Terminals Terminal block; molded terminal numbers next to the wiring terminals
Physical
Color Red
Mount Type Surface mount on SB-10 back box
Mount Type Detail Or semi-flush to a double-gang or 4 in (10.16 cm) square box
Trim Ring BG-TR (optional, semi-flush)
Listings and Approvals
Agency Approvals UL, CSFM
Approval Details UL Listed (NBG-12 Series file S692); CSFM 7150-0028:199
FM Approval Not FM approved
