Notifier · Fire Alarm

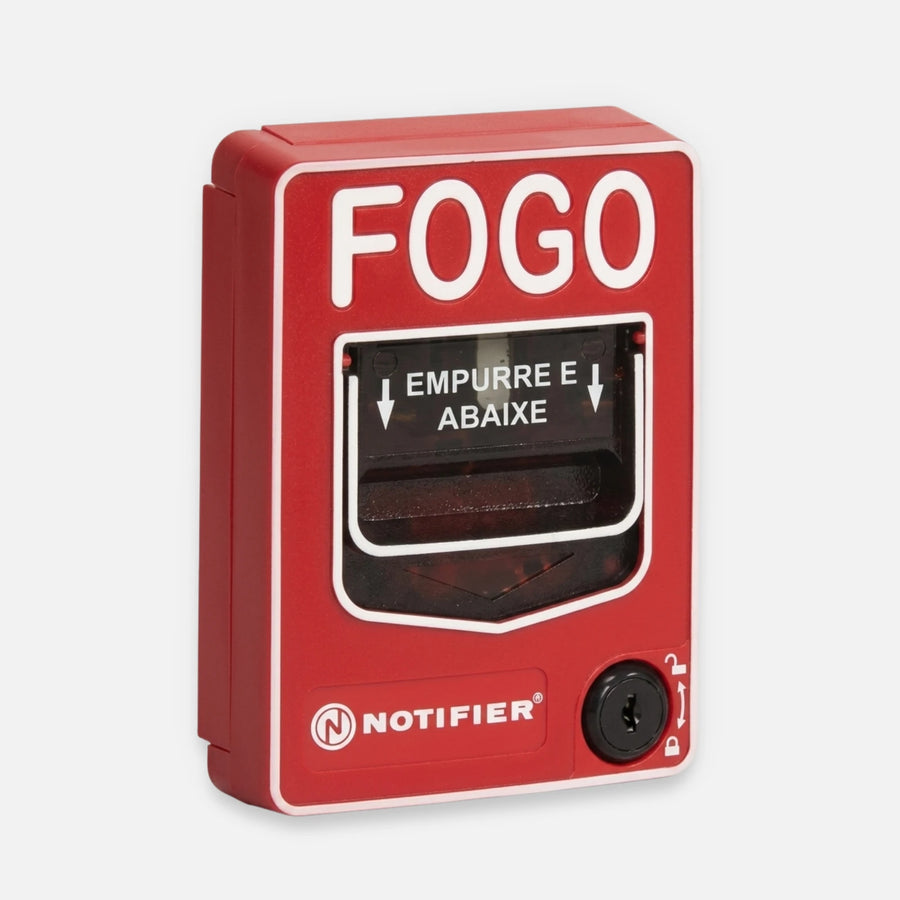

Notifier NBG-12LXP Addressable Dual Action Manual Pull Station, Portuguese

Part number / SKU
NBG-12LXP
  • Dual action manual pull station
  • Addressable
  • Semi-flush or surface
  • 24 VDC normal
  • UL, ULC, MEA, CSFM, FDNY, BSMI

Works with: Notifier intelligent fire alarm control panels (except FireWarden Series and NSP-25), NFS2-640 (FDNY COA 6085), NFS2-3030 (FDNY COA 6098), SB-10 metal surface back box, SB-I/O plastic surface back box, BG12TR trim ring and 2 more models Confirmed by the manufacturer


$92.75

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier NBG-12LXP is an addressable, dual action manual pull station from the NBG-12 Series that connects directly to the signaling line circuit of Notifier intelligent fire alarm control panels, except FireWarden Series panels and the NSP-25. The panel shows the exact location of an activated station. The NBG-12LXP is the Portuguese labeled version of the NBG-12LX.

Two rotary decimal switches set the address, 1 to 159 on FlashScan loops or 1 to 99 on CLIP loops. The station runs at 24 VDC with a 5 mA maximum alarm current and wires to the SLC on captive screw terminals up to 12 AWG. A bicolor LED blinks in normal operation and turns steady red in alarm, and the handle latches down and shows ACTIVATED. It mounts semi-flush to a single-gang, double-gang or 4 in square box, or on an SB-10 or SB-I/O surface back box.

Notifier lists UL/ULC S692, FM approval, CSFM 7150-0028:0199, MEA 67-02-E, FDNY COA 6085 with the NFS2-640 and COA 6098 with the NFS2-3030, plus U.S. Coast Guard and Lloyd's Register approvals. Operating range is 32 to 120 F at 10% to 93% RH, indoor dry locations only.

  • Best for: pinpointing manual alarm locations on Notifier addressable fire alarm systems.
  • System fit: Notifier intelligent fire alarm control panels on FlashScan or CLIP SLC loops, except FireWarden Series and NSP-25.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Exact location

    each station has its own address, 1 to 159 on FlashScan loops or 1 to 99 on CLIP loops.

  • Status at a glance

    bicolor LED blinks in normal operation and turns steady red in alarm.

  • Low loop load

    5 mA maximum alarm current on the SLC.

  • Wide approvals

    UL/ULC S692, FM, CSFM, MEA and FDNY listings.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUNBG-12LXP
General
Brand Notifier
Model NBG-12LXP
Series NBG-12 Series
Device Type Dual action manual pull station
Addressing Addressable
Labeling Portuguese
Address Setting Two rotary decimal switches
Address Range 1 to 159 on FlashScan loops; 1 to 99 on CLIP loops
Indicator Bicolor LED: blinks in normal operation (green on FlashScan), steady red in alarm
Operation Push in, pull down; handle latches down and shows ACTIVATED in yellow
Reset Key reset (17021 key set)
Pull Force 5 lb maximum per ADA (ADAAG 4.1.3(13))
Markings Braille text on the handle
Electrical
Operating Voltage 24 VDC normal
Maximum SLC Loop Voltage 28.0 VDC
Maximum SLC Alarm Current 5 mA
Wiring Two-wire SLC connection, captive screw terminals up to 12 AWG (3.25 mm2)
Physical
Housing Material Polycarbonate shell, door and handle, textured finish
Color Red
Mount Type Semi-flush or surface
Mount Type Detail Semi-flush to a single-gang, double-gang or 4 in (10.16 cm) square box; surface mount on SB-10 or SB-I/O back box
Trim Ring BG12TR (optional; usually needed for 4 in or double-gang semi-flush)
Weight 9.6 oz (272.15 g)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10% to 93% RH, noncondensing
Location Indoor, dry locations only
Listings and Approvals
Agency Approvals UL, ULC, MEA, CSFM, FDNY, BSMI
Approval Details UL/ULC Listed S692; MEA 67-02-E; CSFM 7150-0028:0199; FDNY COA 6085 (NFS2-640) and COA 6098 (NFS2-3030); BSMI CI313066760047; U.S. Coast Guard; Lloyd's Register; FM Approved
Standards UL 38, Manually Actuated Signaling Boxes
