NOTIFIER
Notifier NC-100R Relay Module Provides 2 Form-C
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

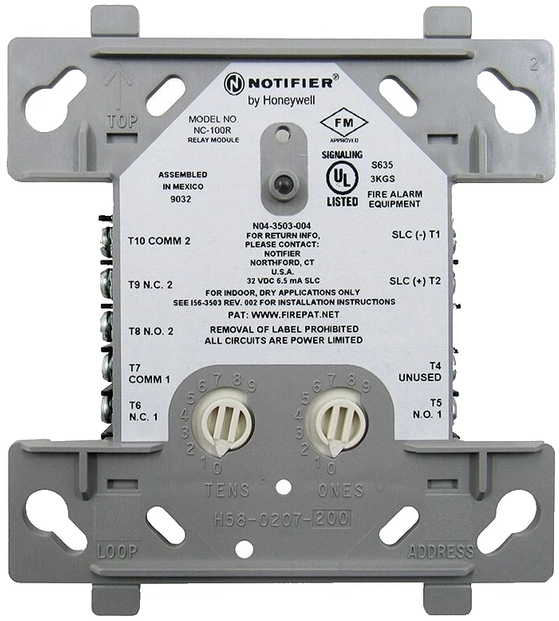

Notifier NC-100R Addressable Relay Module Dual Form-C Dry Contacts
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
The Notifier NC-100R is an addressable relay module that provides dual Form-C dry contact outputs for interfacing fire alarm control panels with auxiliary building systems requiring automated control.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Security
Access Control
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Addressable relay module for fire alarm system integration
• Dual Form-C dry contact outputs
• Compatible with Notifier addressable fire alarm control panels
• Electronic addressing for system monitoring and integration
• Compact design for efficient panel installation
• Supports control of auxiliary building systems through dry contacts
• UL Listed for fire alarm applications
• FM and CSFM listed
• Designed for NFPA 72 compliant fire alarm system installations
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Manufacturer: Notifier
• Model: NC-100R
• Device Type: Addressable Relay Module
• Relay Configuration: Dual Form-C Dry Contacts
• Maximum Switching Voltage: 30 VDC
• Maximum Switching Current: 2 A (Resistive)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Dimensions: Approximately 6.5 × 4 × 1.5 in
• Weight: 0.4 lb
• Agency Listings: UL, FM, CSFM
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed for integration with addressable fire alarm systems to interface with auxiliary building systems, including HVAC shutdown, elevator recall, door release mechanisms, and auxiliary notification systems.
