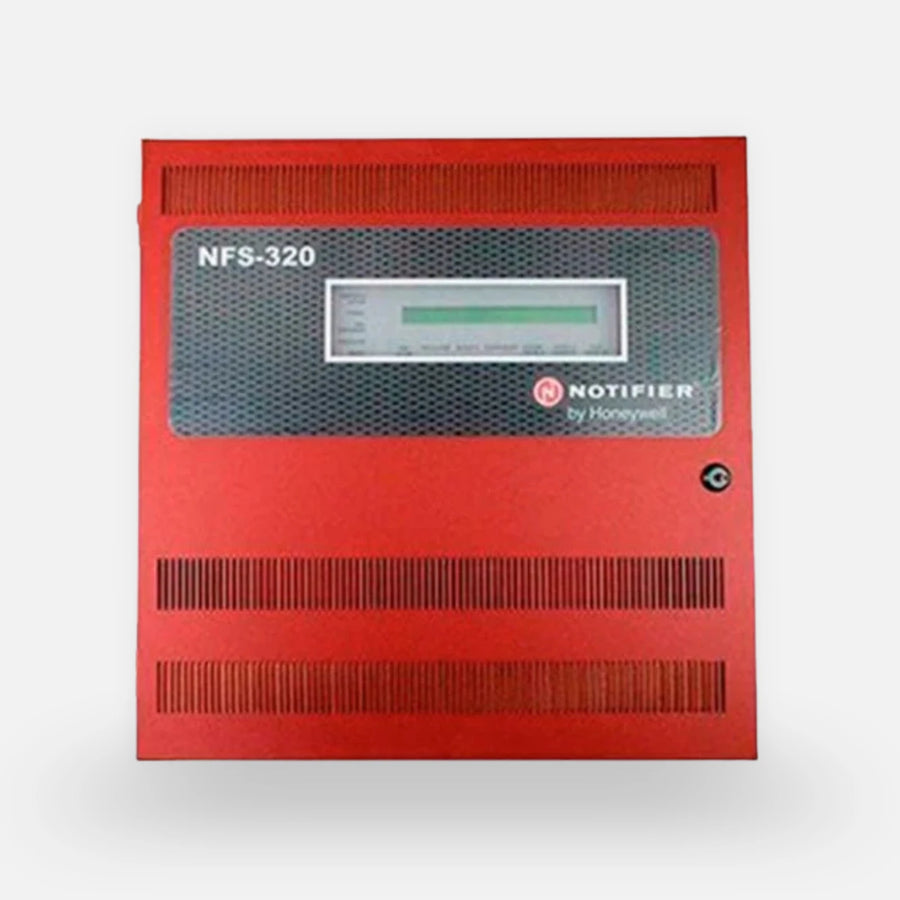

Notifier NFS-320R Intelligent Addressable Fire Alarm Control Panel, Red Cabinet
- Part number / SKU
- NFS-320R
- Fire alarm control panel
- Addressable
- Surface or semi-flush
- UL, ULC, FM, CSFM, MEA, FDNY
Works with: KDM-R2 keypad/display, NCA-2 network control annunciator, NCD network control display, ACM-24AT annunciator, AEM-24AT annunciator expander, ACM-48A annunciator and 31 more models Confirmed by the manufacturer
Special order· Lead time confirmed by our team after you order.
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Full loop capacity
one SLC with up to 159 detectors and 159 modules.
-
Built-in power
6.0 A in alarm with four 1.5 A Class A/B NACs.
-
Networkable
up to 200 nodes on high-speed NOTI-FIRE-NET.
-
Event records
800-event history plus a separate 200-event alarm-only file.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | NFS-320R |
| General | |
| Brand | Notifier |
| Model | NFS-320R |
| Device Type | Fire alarm control panel |
| Device Type Detail | Intelligent addressable |
| Version | Red enclosure, 120 VAC |
| Series | ONYX Series |
| Addressing | Addressable |
| SLC | 1 isolated intelligent SLC; Style 4, 6 or 7 |
| Device Capacity | 159 detectors and 159 modules (318 devices) |
| NACs | 4 Class A/B, 1.5 A each |
| Strobe Synchronization | System Sensor, Wheelock or Gentex (selectable) |
| Relays | Alarm, Trouble, Security and Supervisory |
| Zones | 99 software zones; 14 special programming zones |
| Annunciators | Up to 32 remote 80-character annunciators; ACS annunciators at 32 addresses x 64 points |
| Display | KDM-R2 keypad, 80-character (2 x 40) backlit LCD, QWERTY keys |
| History | 800 events plus 200-event alarm-only file |
| Network | High-speed NFN up to 200 nodes; standard NFN up to 103 nodes (54 with DVC-EM paging) |
| Electrical | |
| AC Input | 120 VAC, 50/60 Hz, 5.0 A |
| Power Supply | 6.0 A total 24 V output in alarm |
| Board Current Draw | 0.250 A, plus 0.035 A per NAC in use |
| KDM-R2 Current Draw | 0.100 A with backlight on |
| Resettable 24 V Output | 1.25 A |
| Non-Resettable 24 V Outputs | 1.25 A and 0.50 A |
| Non-Resettable 5 V Output | 0.15 A |
| Battery Charger | 18 to 200 AH, two 12 V batteries; separate cabinet over 26 AH |
| Float Voltage | 27.6 V |
| Physical | |
| Backbox | 18.12 x 18.12 x 5.81 in (46.025 x 46.025 x 14.76 cm), W x H x D |
| Door | 18.187 x 18.40 x 0.75 in (46.195 x 46.736 x 1.905 cm) |
| Mount Type | Surface or semi-flush |
| Mount Type Detail | TR-320 trim ring |
| Weight | 36.15 lb (16.4 kg) without batteries |
| Cabinet Color | Red |
| Environmental | |
| Operating Temperature | 32 to 120 F (0 to 49 C) |
| Humidity | 93% +/- 2% RH noncondensing at 32 C +/- 2 C (90 F +/- 3 F) |
| Recommended Room Temperature | 60 to 80 F (15 to 27 C) |
| Listings and Approvals | |
| Agency Approvals | UL, ULC, FM, CSFM, MEA, FDNY |
| Approval Details | UL/ULC Listed S635; FM Approved; CSFM 7165-0028:0243; MEA 128-07-E; FDNY COA 6212 |
| Marine | U.S. Coast Guard 161.002/50/0 and 161.002/55/0; ABS Type Approval (with CAB-BM marine enclosure) |
| Standards | UL 864, UL 1076, UL 2572, ULC-S527-11; seismic certified with the proper seismic mounting kit |
