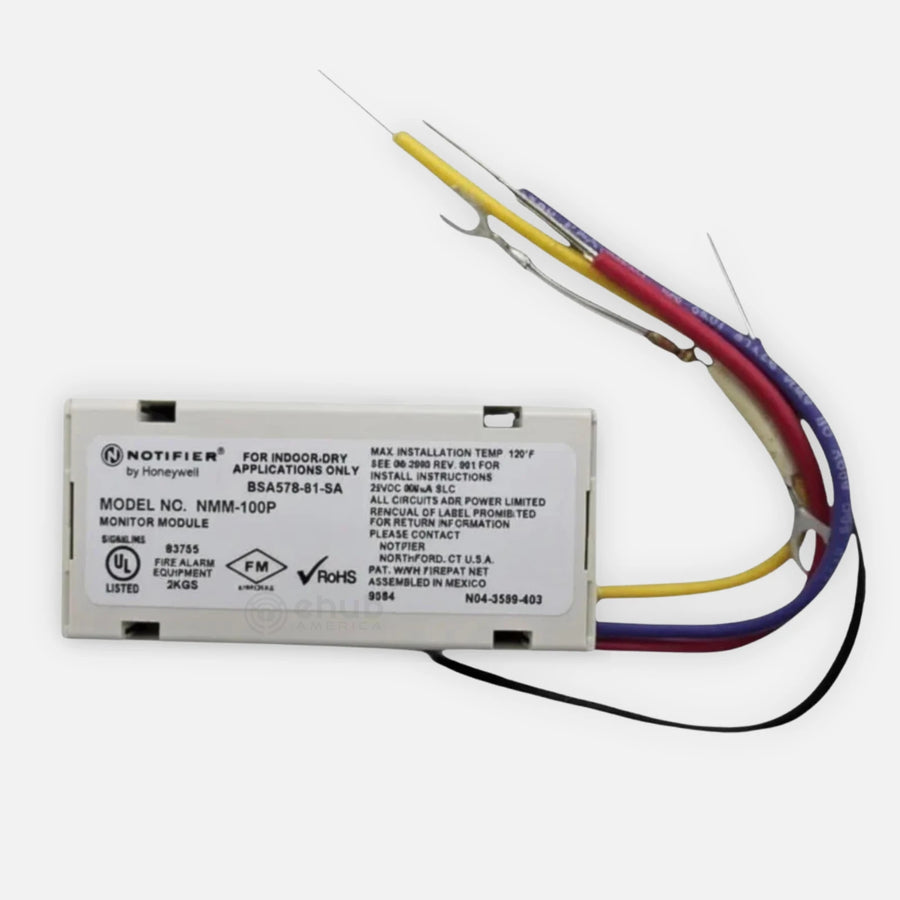

Notifier NMM-100P Addressable Mini Monitor Module for FireWarden Panels, Class B

Part number / SKU
NMM-100P
  • Mini monitor module
  • Addressable
  • Single-gang box
  • 15 to 32 VDC

Works with: FireWarden Series intelligent fire alarm control panels, FireWarden-100-2, FireWarden-50, Single-gang electrical box Confirmed by the manufacturer


$64.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier NMM-100P is a miniature addressable monitor module for FireWarden Series intelligent fire alarm control panels. It supervises one Style B (Class B) initiating circuit of dry-contact input devices and reports it to the panel as its own address.

At 1.3 in high x 2.75 in wide, it is small enough to mount in a single-gang box behind the device it monitors. It runs on 15 to 32 VDC with an average operating current of 350 uA, uses a 47K ohm end-of-line resistor and allows up to 40 ohms of IDC wiring resistance. Tinned, stripped leads at least 6 in long make the connections, and the module is rated for 32 to 120 F at 10% to 93% humidity, noncondensing.

  • Best for: monitoring a dry-contact input device from a single-gang box behind it, on FireWarden addressable systems.
  • System fit: Notifier FireWarden Series intelligent fire alarm control panels (FireWarden-100-2, FireWarden-50).
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Fits behind the device

    mounts in a single-gang box behind the device it monitors.

  • Low loop load

    350 uA average operating current.

  • Simple wiring

    tinned, stripped leads at least 6 in long.

  • Supervised input

    one Style B (Class B) dry-contact circuit with a 47K ohm end-of-line resistor.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUNMM-100P
General
Brand Notifier
Model NMM-100P
Device Type Mini monitor module
Addressing Addressable
Address Range 01 to 99 on FireWarden-100-2; 01 to 50 on FireWarden-50
Input One Style B (Class B) dry-contact initiating circuit
Mount Type Single-gang box
Mount Type Detail Behind the monitored device
Electrical
Operating Voltage 15 to 32 VDC
Average Operating Current 350 uA (one communication every 5 seconds, 47K EOL)
Maximum Current 600 uA (communicating, IDC shorted)
Maximum IDC Current 400 uA
Maximum IDC Voltage 11 V
Maximum IDC Wiring Resistance 40 ohms
End-of-Line Resistor 47K ohms
Wiring Tinned, stripped leads; 6 in (15.24 cm) minimum length
Physical
Height 1.3 in (3.302 cm)
Width 2.75 in (6.985 cm)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10% to 93%, noncondensing
