Notifier · Fire Alarm

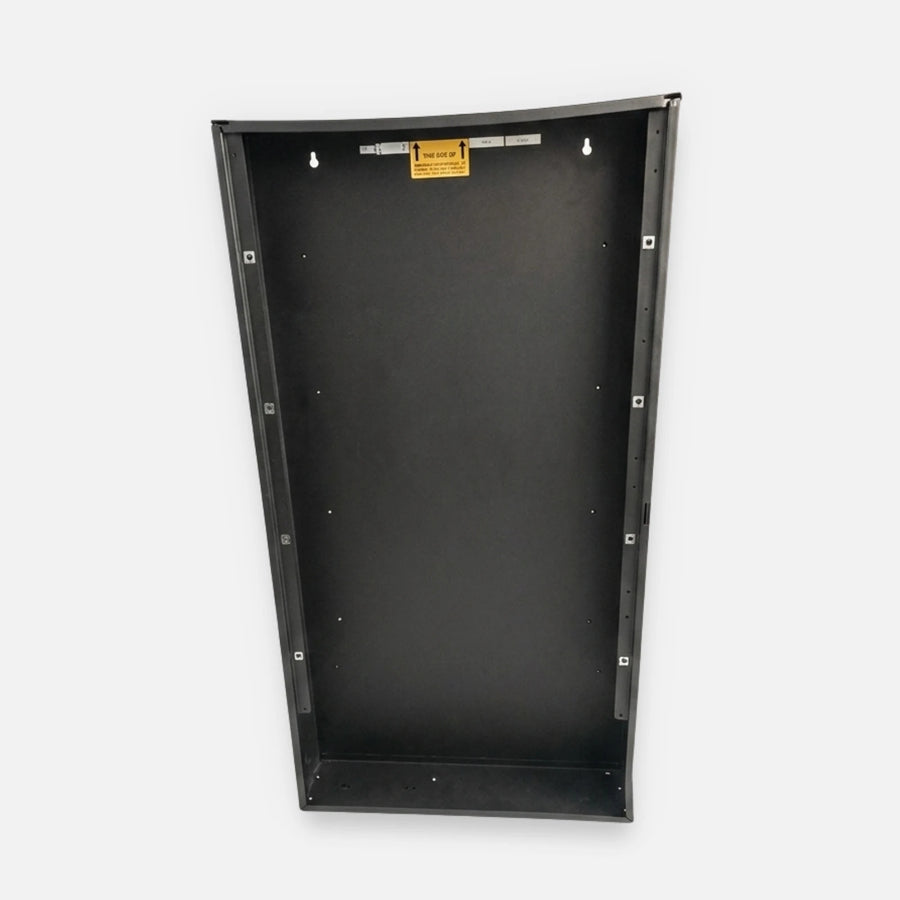

Notifier SBB-D4 CAB-4 Series Four-Tier Backbox, Size D

Part number / SKU
SBB-D4
  • Cabinet backbox
  • Surface
  • UL, MEA, FM

Works with: DR-D4 door, ADDR-D4 audio command door, BP2-4 battery plate, SEISKIT-CAB seismic kit, CAB-4 trim ring (semi-flush), NFS2-640 and 1 more model Confirmed by the manufacturer


$417.88

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Notifier SBB-D4 is the backbox for the "D" size, four-tier CAB-4 Series cabinet used with Notifier ONYX Series fire alarm control panels such as the NFS2-640 and NFS2-3030. A CAB-4 cabinet has two parts, a backbox and a locking door, and Notifier has you order one DR door and one SBB backbox for each cabinet. Notifier also specifies the SBB-D4 for the ADDR-D4 audio command door, which exposes the top two tiers through a clear window.

CAB-4 cabinets are built from 16-gauge steel, and the backbox has conduit knockouts at numerous points for easy entry. A black metal trim ring is available for semi-flush mounting, a BP2-4 battery plate is required with NFS2-640 and NFS2-3030 systems, and the SEISKIT-CAB seismic kit is required for seismic-certified NFS2-640 installations. Notifier lists CAB-4 cabinets under UL S635, MEA 317-01-E and 345-02-E, and FM approval.

  • Best for: housing ONYX Series panel electronics and modules in a four tier CAB-4 cabinet.
  • System fit: Notifier CAB-4 Series "D" size cabinets for NFS2-640 and NFS2-3030 panels, with DR-D4 or ADDR-D4 audio command doors.
  • Important to know: the door is a separate part, and installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • Sized to fit

    backbox for the "D" size, four-tier CAB-4 cabinet.

  • Steel build

    CAB-4 cabinets are fabricated from 16-gauge steel.

  • Easy conduit entry

    knockouts are placed at numerous points on the backbox.

  • Listed cabinet

    CAB-4 cabinets carry UL S635, MEA and FM listings.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUSBB-D4
General
Brand Notifier
Model SBB-D4
Device Type Cabinet backbox
Series CAB-4 Series
Cabinet Size "D"
Tiers 4
Matching Door DR-D4
Audio Command Door ADDR-D4
Ordering One DR door and one SBB backbox per cabinet
Battery Plate BP2-4 required (NFS2-640, NFS2-3030)
Seismic Kit SEISKIT-CAB, required for seismic-certified NFS2-640 applications
Panel Families NFS2-640, NFS2-3030
Physical
Material 16-gauge steel
Conduit Entry Knockouts at numerous points
Mount Type Surface
Mount Type Detail Semi-flush with optional trim ring
Trim Ring Optional black metal trim ring for semi-flush mounting
Listings and Approvals
Agency Approvals UL, MEA, FM
Approval Details UL Listed S635; MEA 317-01-E, 345-02-E; FM Approved
