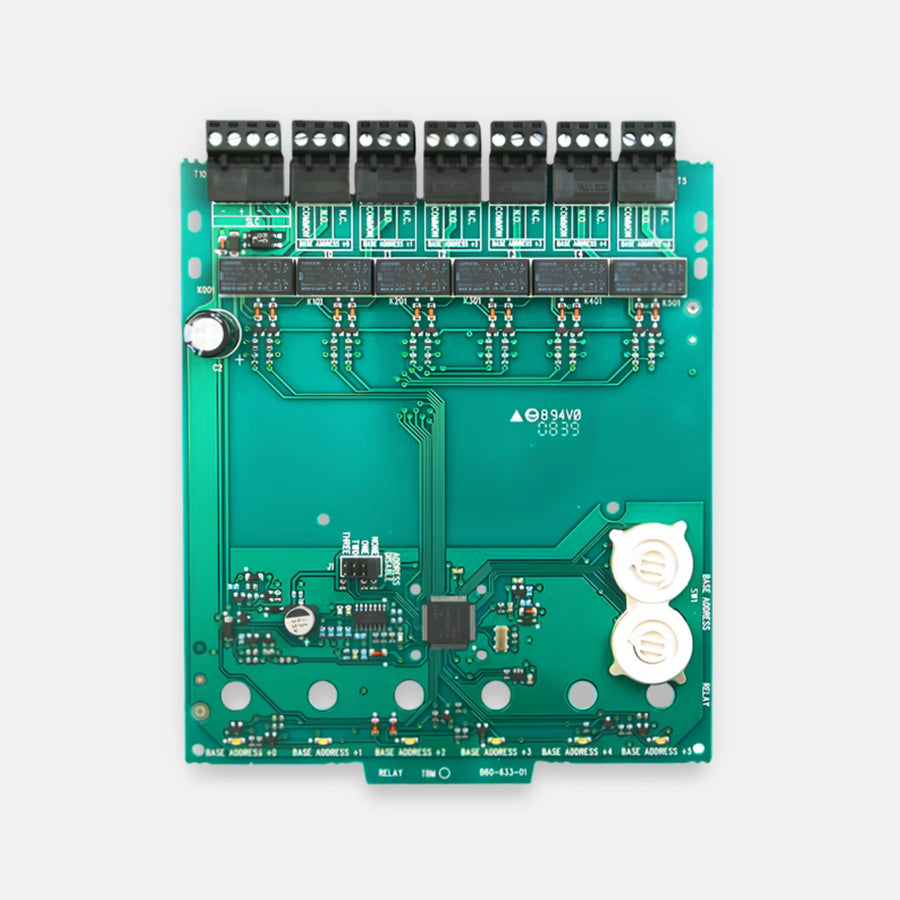

Notifier XP6-R Six-Relay Form-C Control Module, FlashScan or CLIP
- Part number / SKU
- XP6-R
- Six-relay control module
- Addressable
- BB-XP cabinet or CHS-6 chassis
- UL, CSFM, MEA
Works with: BB-XP cabinet, CHS-6 chassis, CAB-3 Series enclosures, NFS2-640, NFS2-3030 Confirmed by the manufacturer
Special order· Lead time confirmed by our team after you order.
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Six relays in one
six addressable Form-C relays from one module.
-
Contact rating
3.0 A at 30 VDC resistive, non-coded.
-
Low standby draw
1.45 mA with all six addresses in use.
-
Panel-controlled LEDs
each point has a green LED that can blink or latch on command.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | XP6-R |
| General | |
| Brand | Notifier |
| Model | XP6-R |
| Device Type | Six-relay control module |
| Addressing | Addressable |
| Protocol | FlashScan or CLIP |
| Outputs | 6 Form-C relays, one isolated dry contact set per address |
| Contact Wiring | Normally open or normally closed |
| Supervision | Relay circuits not supervised |
| Address Setting | Rotary address switches |
| Address Range | First module 01 to 154; other five assigned the next five addresses |
| Disable Option | Up to three unused modules |
| Indicators | Green LED per point; blink, latch on or latch off under panel control |
| Electrical | |
| Standby Current | 1.45 mA (all addresses used) |
| Alarm Current | 32 mA (all six relays switched once, all LEDs on) |
| Reply Current | 30 mA per relay pulse, 15.6 ms |
| Maximum SLC Wiring Resistance | 40 or 50 ohms, depending on panel |
| Contact Rating, 30 VDC Resistive Non-Coded | 3.0 A |
| Contact Rating, 30 VDC Resistive Coded | 2.0 A |
| Contact Rating, 30 VDC Inductive Coded (L/R 2 ms) | 1.0 A |
| Contact Rating, 30 VDC Inductive Coded (L/R 5 ms) | 0.5 A |
| Contact Rating, 110 VDC Resistive Non-Coded | 0.9 A |
| Contact Rating, 125 VAC Resistive Non-Coded | 0.9 A |
| Contact Rating, 70.7 VAC Inductive Non-Coded (PF 0.35) | 0.7 A |
| Contact Rating, 125 VAC Inductive Non-Coded (PF 0.35) | 0.5 A |
| Physical | |
| Dimensions | 172.72 mm H x 147.32 mm W x 25.40 mm D (6.8 x 5.8 x 1.0 in) |
| Mount Type | BB-XP cabinet or CHS-6 chassis |
| Mount Type Detail | One or two in optional BB-XP cabinet; up to six on CHS-6 chassis in CAB-3 Series enclosure |
| Terminals | Removable plug-in terminal blocks |
| Included Items | Mounting hardware |
| Environmental | |
| Operating Temperature | 32 to 120 F (0 to 49 C) |
| Humidity | 10% to 85%, noncondensing |
| Listings and Approvals | |
| Agency Approvals | UL, CSFM, MEA |
| Approval Details | UL Listed S635; CSFM 7300-0028:0219; FM Approved (light protective signaling only); MEA 368-01-E; Maryland State Fire Marshal permit 2099; SAI Global SMK40640-2 |
