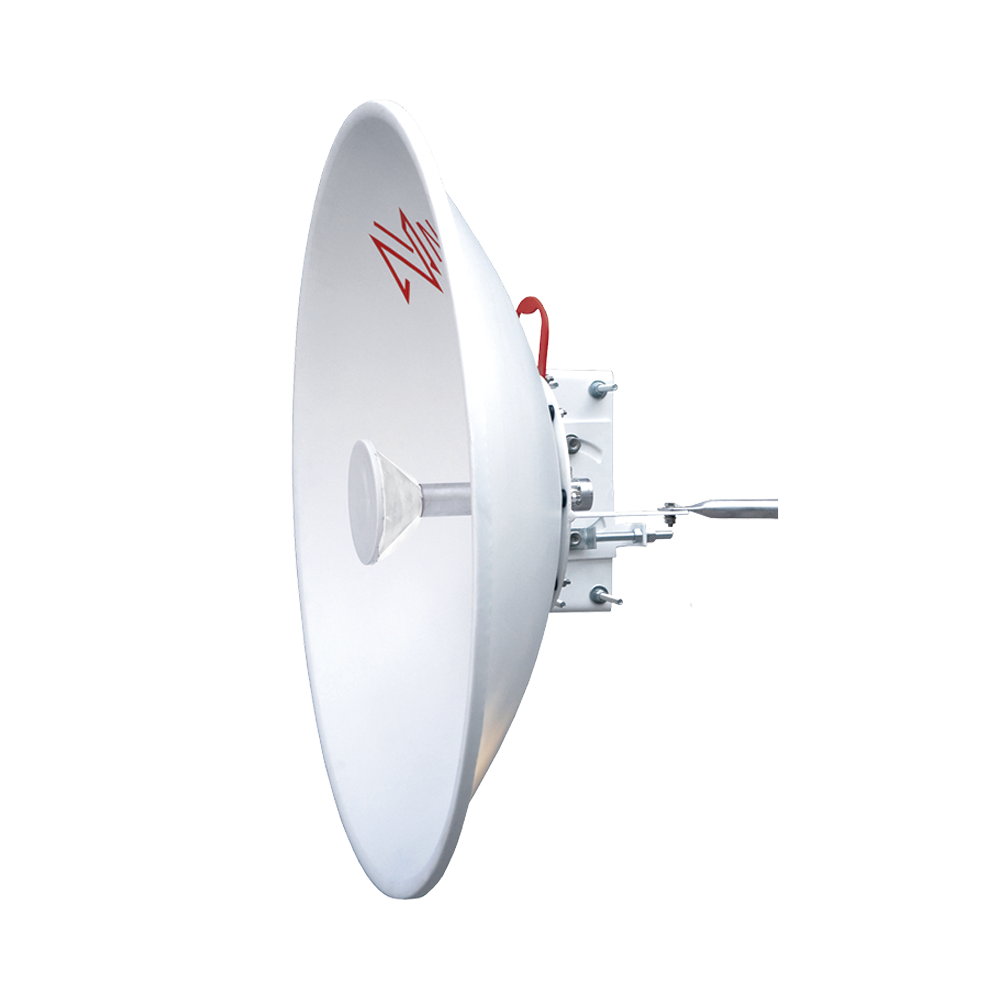

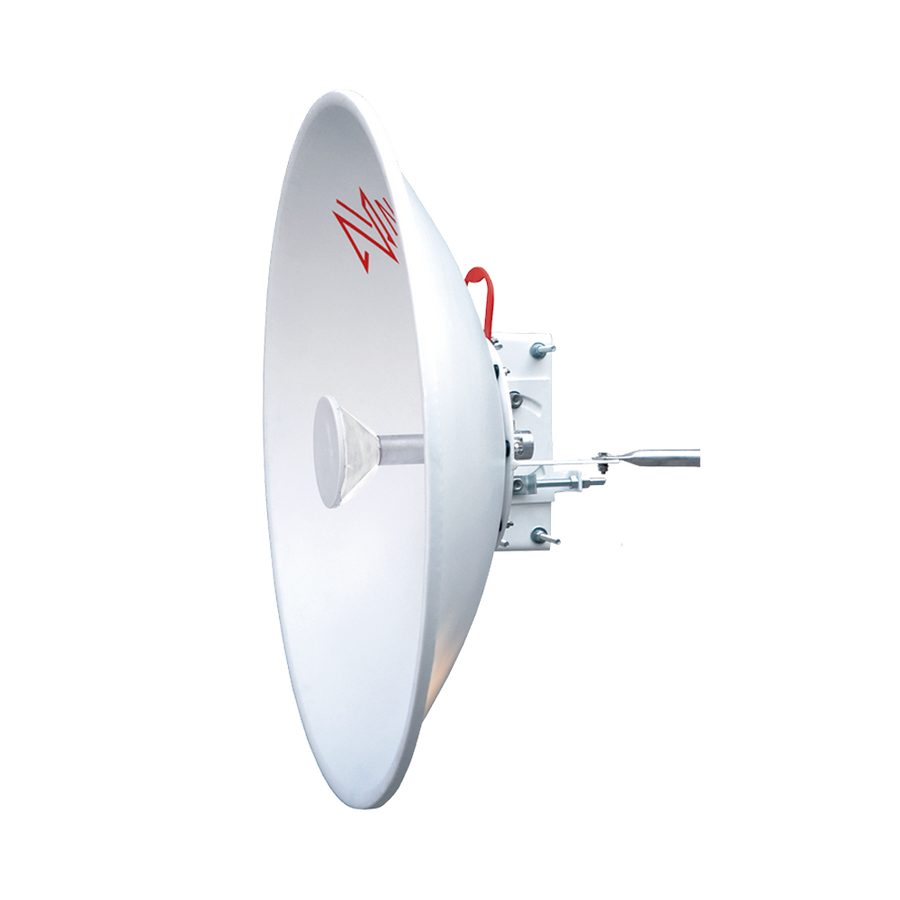

NetPoint NP6 3-Foot Parabolic Dish Antenna 32 dBi 5.9-7.2 GHz

Netpoint 3.11-Foot Parabolic Antenna DP 5.9-7.2 GHz 32 dBi includes pigtail N-F to SMA M

NetPoint's NP6-DP3FT super high performance dish antenna is designed to work with very high performance in both licensed and unlicensed bands with excellent gain. The NP6-DP-3FT model has dual polarization and an N-female connector, as well as exceptional VSRW performance in the 5.9 to 7.2 GHz operating band. The antenna comes pre-assembled and ready to install, as well as an integrated radome for high performance and reliable operation in the most demanding conditions. This 3-foot parabolic antenna can be used for PTP backhaul, CPE and public safety applications.

Compatible Radio Units.

The NP6-DP antenna is compatible with the Cambium Networks Force 4600C radio.

Features:

• Gain of up to 32 dBi with low VSWR and high port isolation across the entire 5.9 -7.2 GHz band
• One antenna that covers 6 and 7 Ghz
• Reduced interference with >50 dB minimum front to back
• Simplifies installation on site and guarantees “factory-tested” quality
• Connector type N Female
• Pigtails of N to RPSMA included in the box for free!!!

Key Features

• Dual Polarization With 45° and 90° Slant Options
• Adjustable Gain Up to 32 dBi for Maximum Performance
• Includes N-Male to RPSMA Jumpers for Easy Connectivity
• Wind Resistance Rated for 77 mph Harsh Conditions
• Mounting Hardware and Radome Included for Quick Installation
• Wide Compatibility With Major 5-7 GHz Radio Systems
