FIBERHOME

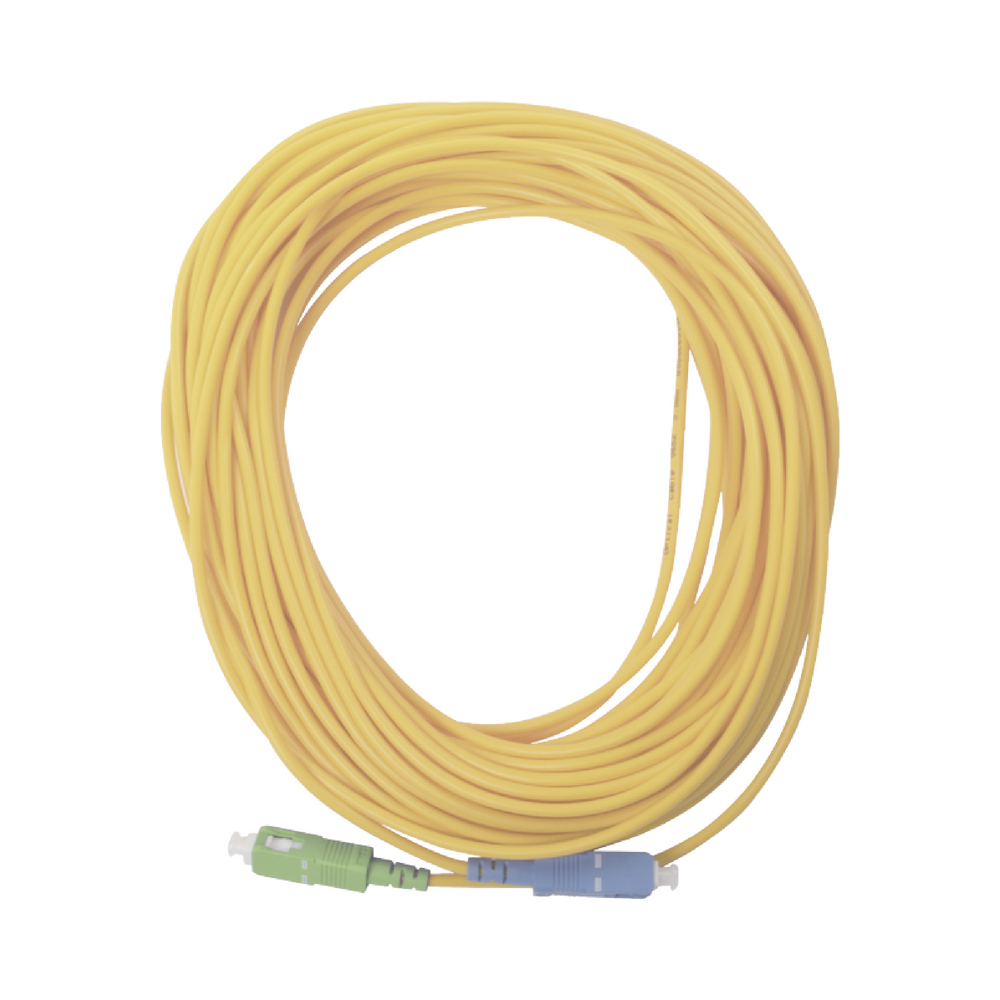

Fiberhome OFC-SC/UPC-SC/APC-30-20 Singlemode Fiber Optic Cable SC/UPC-SC/APC 20m
Product identifier
SKU
OFC-SC/UPC-SC/APC-30-20
$19.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Serving as the transmission carrier for optical signals, fiber jumper is applied to short-distance transmission of optical signals. It connects the optical interface of a card to the ODF.
Specifications:
- Singlemode G.652A2 fiber
- Connectors: SC/UPC - SC/APC
- 20 meters (65.6 ft)
- Simplex
- Outer Diameter: 3 mm
- UPC Return Loss (RL): 50 dB
- APC Return Loss (RL): 60 dB
- Insertion Loss (IL): 0.3 dB
Key Features
- Single Mode G.652a2 Fiber for High-Speed Data Transmission
- SC/UPC to SC/APC Connector Configuration for Versatile Applications
- Maximum Insertion Loss of 0.3 dB for Optimal Signal Quality
- High Return Loss of 50 dB for SC/UPC Connector Performance
- Superior Return Loss of 60 dB for SC/APC Connector Efficiency
- Simplex Design With Durable 3 mm Protective Outer Jacket
