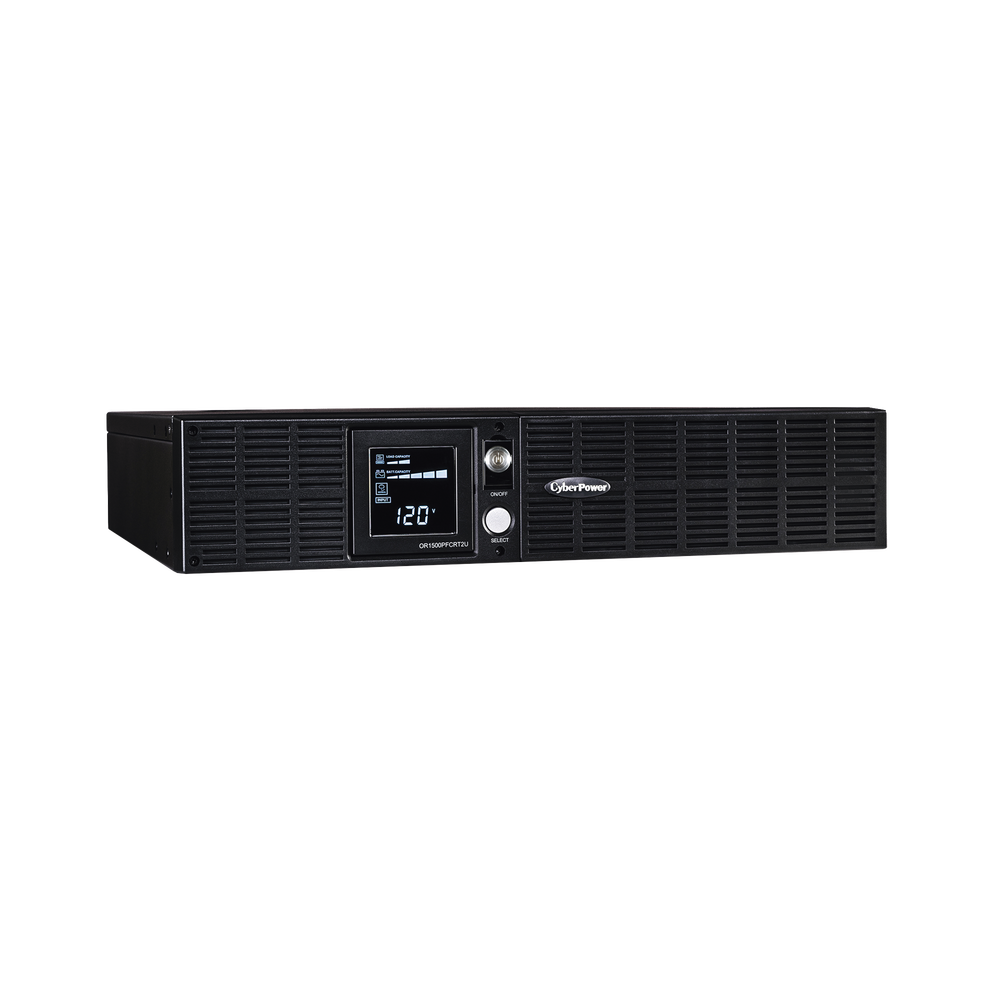

Cyberpower OR1500PFCRT2U 1500VA 1050W Line Interactive Sine Wave UPS

A rack/tower UPS with line interactive topology, the CyberPower PC Sinewave OR1500PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR1500PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

General:

• UPS Topology: Line interactive

• Energy saving: GreenPower UPS™ Bypass Technology

• ENERGY STAR® Compliant: Yes

Input:

• Voltage: 120 Vac

• Input voltage range: 88 - 139 Vac

• Adjustable voltage range: 86 - 142 Vac

• Frequency range: 60 Hz +/- 3 Hz

• Plug type: NEMA 5-15P

• Plug style: Right angle, 45º Offset Right

• Cord length: 10 ft

Output:

• VA: 1,500 VA

• Watts: 1,050 W

• On battery voltage: 120 Vac +/- 5%

• On battery frequency: 60 Hz +/- 1%

• On battery waveform: Sine wave

• Output power factor: 0.7

• Automatic voltage regulation (AVR): Yes, +/- 18% Max

• Outlet type: NEMA 5-15R

• Outlets - total: 8

• Outlets - battery & surge protected: 8

• Overload protection: Internal circuitry limiting

• Transfer time: 4 ms

Battery:

• Runtime at half load: 17 minutes

• Runtime at full load: 7.7 minutes

• Battery type: Sealed Lead-Acid

• Battery size: 12V/7 Ah

• Battery Quantity: 4

• Battery voltage: 24V

• Hot-swappable: Yes

• User Replaceable: Yes

• Typical recharge time: 10 hours

• Replacement battery cartridge: RB1270X4G

• Replacement battery cartridge quantity: 1

Surge Protection & Filtering:

• Surge suppression: 1,470 J

• Phone RJ11 / Ethernet RJ45: 1-In, 1-Out (10/100)

• EMI/RFI Filtration: Yes

Management & Communications:

• Multifunction LCD Panel: Yes

• HID Compliant USB Port: Yes

• Serial Port: Yes

• Emergency Power Off (EPO) Port: Yes

• Cables included: USB cable

• LED Indicators:

-Power On

-Wiring Fault

• Audible alarms:

-On Battery

-Low Battery

-Overload

• Software: PowerPanel® Business Edition

• Remote management card: None

Physical:

• Form factor: Rack/Tower

• Rack size: 2U

• Dimensions: 17.01 x 3.5 x 15.32” in.

• Weight: 50.6 lb

Environmental:

• Operating temperature: 32 - 104º F (0 - 40º C)

• Operating humidity: 0 - 90% (non-condensing)

• Maximum operating elevation: 0 - 10,000 ft (0 - 3,000 m)

• Storage temperature: 5 -113º F (-15 - 45º C)

• Storage humidity: 0 - 95% (non-condensing)

• Maximum storage elevation: 0 - 50,000 ft (0 - 15,000 m)

• Audible Noise @ 1.5m: 48.7 dBA

• On line thermal dissipation: 95.6 BTU/hr

• On battery thermal dissipation: 647.4 BTU/hr

Certifications:

• Safety:

-UL 5th

-cUL

-FCC Class A

• Environmental:

-RoHS Compliant

Key Features

• Pure Sine Wave Output for Maximum Equipment Protection
• GreenPower UPS Technology for Energy Efficiency and Cost Savings
• Automatic Voltage Regulation From 88 to 139 Volts
• Data Line Protection for RJ11 Phone and RJ45 Ethernet Ports
• LCD Display With LED Indicators for System Monitoring
• 1470 Joules Surge Protection Across All 8 Outlets
